Description

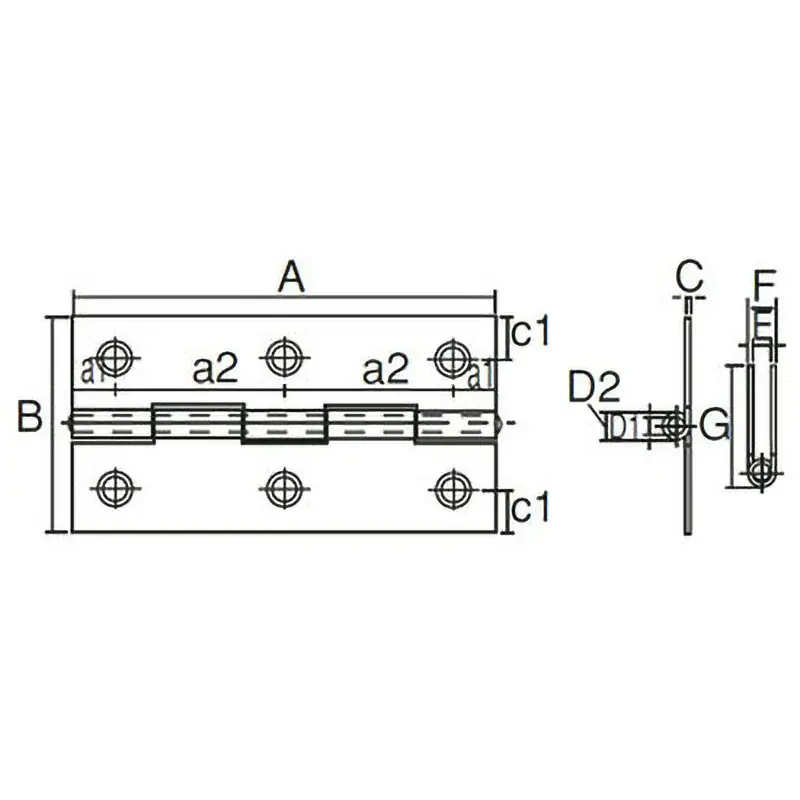

Dimension E (mm): 2.8
Dimension B (mm): 33
Dimension A (mm): 64
Load Capacity (kg): 5 (when using 2 vertically)
Included Accessories: 60 wood screws
Trusco Part Number: 233-6855
Material/Finish: Stainless Steel (SUS430)/Electropolished
Weight (g): 20
Type: Thin
Hole Diameter (mm): 3.8
Dimension F (mm): 4.4
Dimension C (mm): 0.8
Dimension D1 (mm): 2.5
Dimension D2 (mm): 4.4
Dimension G (mm): 19.5
Number of Bolt Holes: 6
Dimension C1 (mm): 6.2
Dimension a1 (mm): 9.0
Dimension a2 (mm): 23.0
Wood Screw Size (Diameter*Length): 2.4*16
