Description
Inner diameter d (mm): 50;
Outer diameter D (mm): 110;
Width B (mm): 27;
Material: (Main body) High carbon chromium bearing steel;
Chamfer dimension r (mm): 2;
Allowable rotational speed (/min [r.p.m]) Oil lubrication: 7500;
Basic dynamic load rating Cr (N): 62000;
Basic static load rating Cor (N): 38500;
JIS grade: 0;
Shield shape: Open type;
Load direction: Radial;
Outer ring type: Flat;

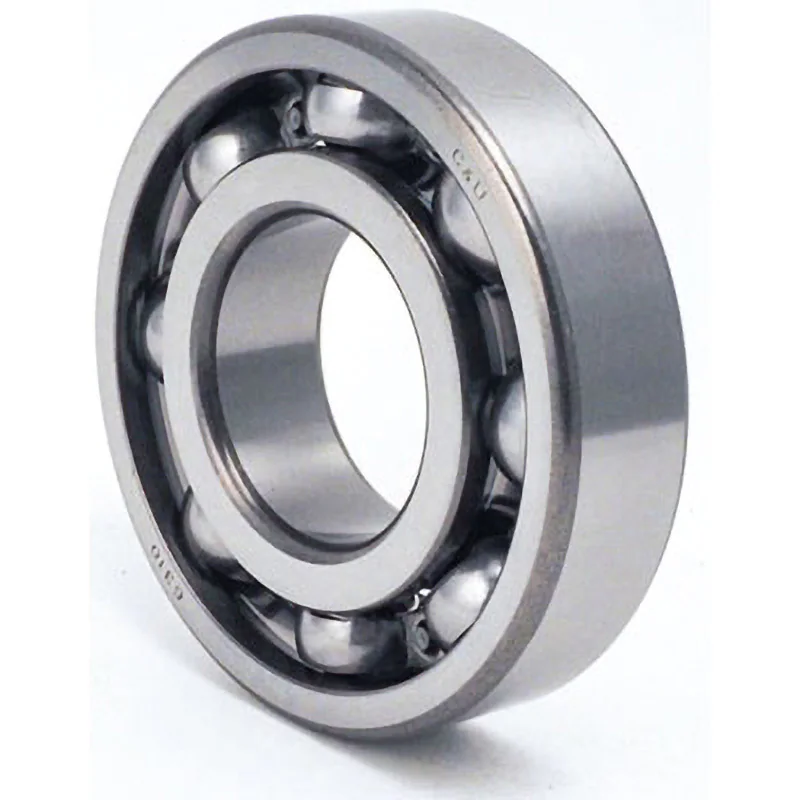

Raceway ring shape: Deep groove ball bearing;
Number of raceway ring rows: Single row;
Rolling element Material: High carbon chromium bearing steel;
Bearing series: 6300
