Description
Description: Quantity: 1 piece
Accessories: M2.6 * 12 4 pieces (Round Washer Tapping)
Weight (g): 35

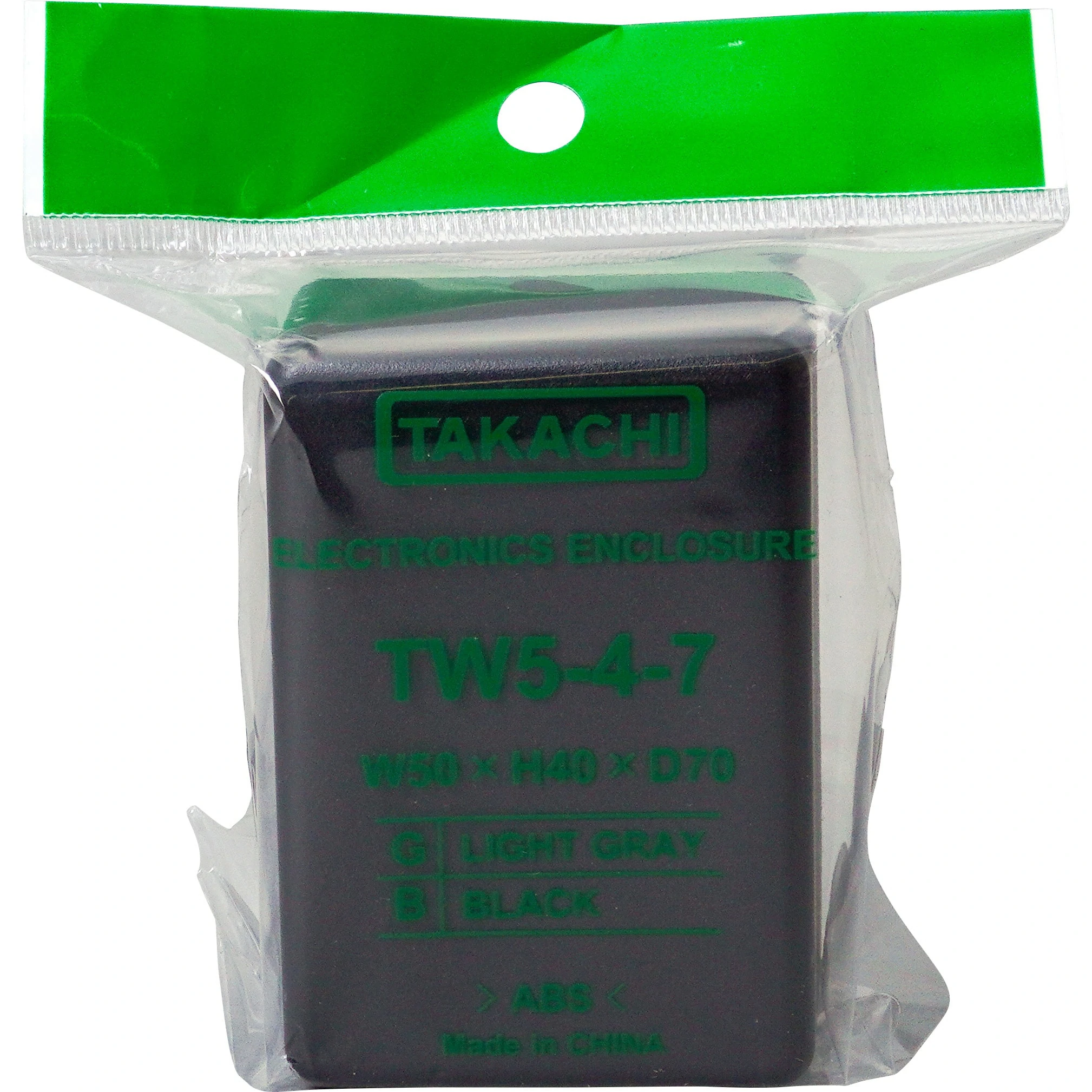

Part Number: TW5-4-7B
Accessories: M2.6 * 12 4 pieces (Round Washer Tapping)
Material: Mounting Screw: Steel
Type: Type B
Operating Temperature Range (Celsius degrees): -10 to 60

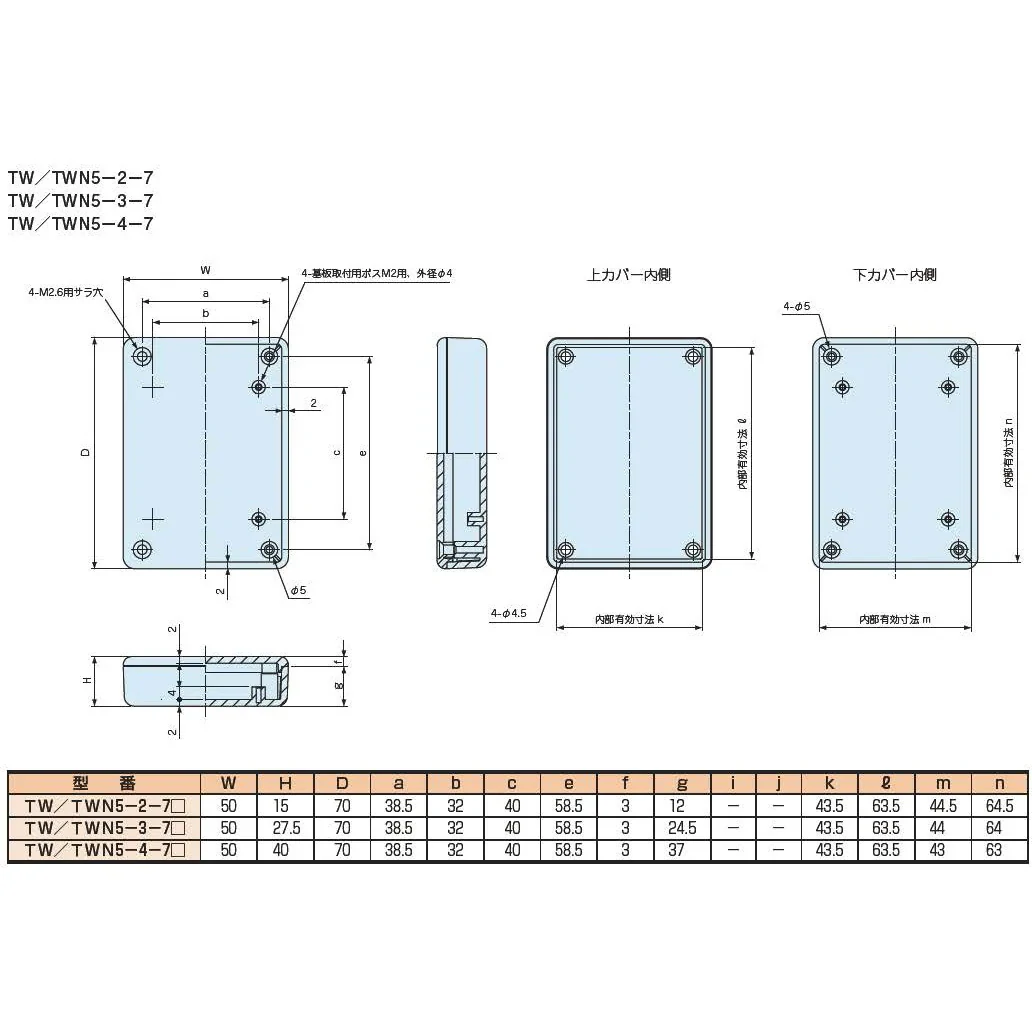

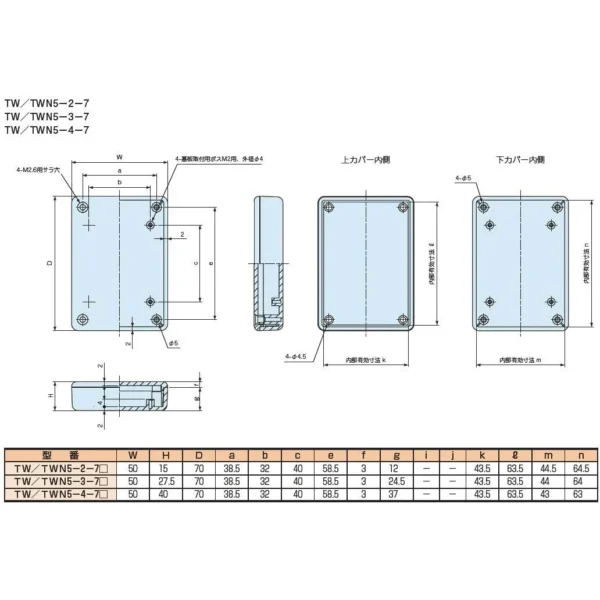

Dimension A (mm): 38.5
Surface Treatment: Cover: Textured, Mounting Screw: Trivalent Black Chromate
Dimension e (mm): 58.5
Dimension l (mm): 63.5
External Dimension D (mm): 70
External Dimension W (mm): 50
External Dimension H (mm): 40
Dimension b (mm): 32
Dimension c (mm): 40
Material (Cover): ABS Resin UL94HB
Dimension g (mm): 37
Dimension f (mm): 3
Dimension k (mm): 43.5
Dimension m (mm): 43
Dimension n (mm): 63
Material (Body): ABS Resin (UL94HB)
Color (Cover): Black
Compatible Body Color: Black
RoHS Directive (10 substances compliance): Compliance

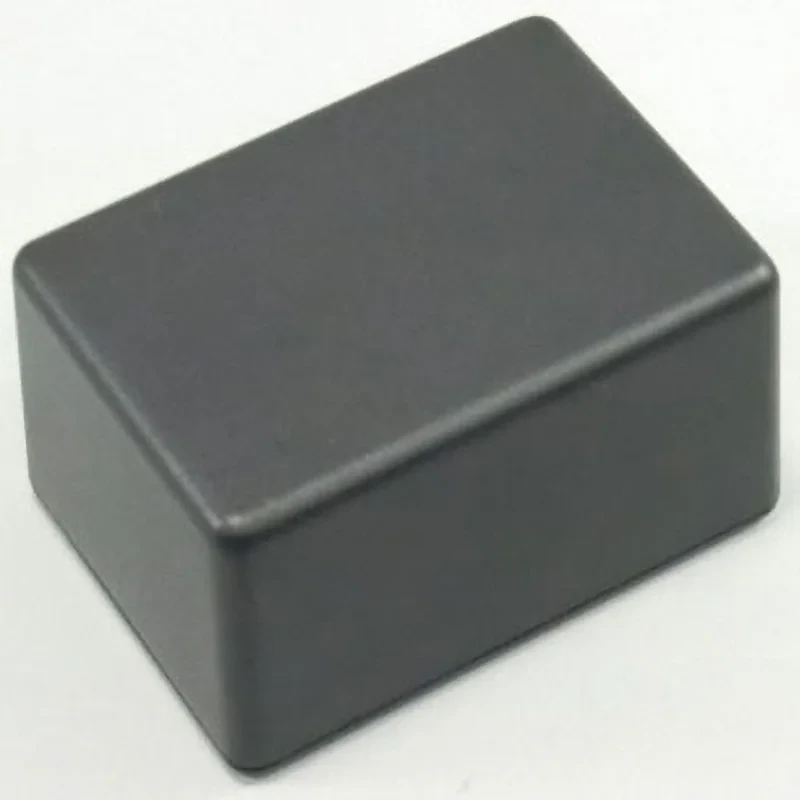

Characteristics: This is a Small General-Purpose Plastic Case with a screw-fastened structure. It has bosses for mounting a circuit board. It can be used for various devices such as measuring instruments, communication devices, and handheld controllers.
Weight (g): 35
Effective Dimension (Width) (mm): 42.5 (Internal)
Effective Dimension (Depth) (mm): 52.9 (Internal)
Effective Dimension (Height) (mm): 32 (Internal)
Surface Treatment (Body): Textured
This is a Small General-Purpose Plastic Case with a screw-fastened structure. It has bosses for mounting a circuit board. It can be used for various devices such as measuring instruments, communication devices, and handheld controllers.
