Description
Quantity: 1 piece
Accessories: M3 * 12 4 pieces (round flat tapping)
Weight (g): 30.5

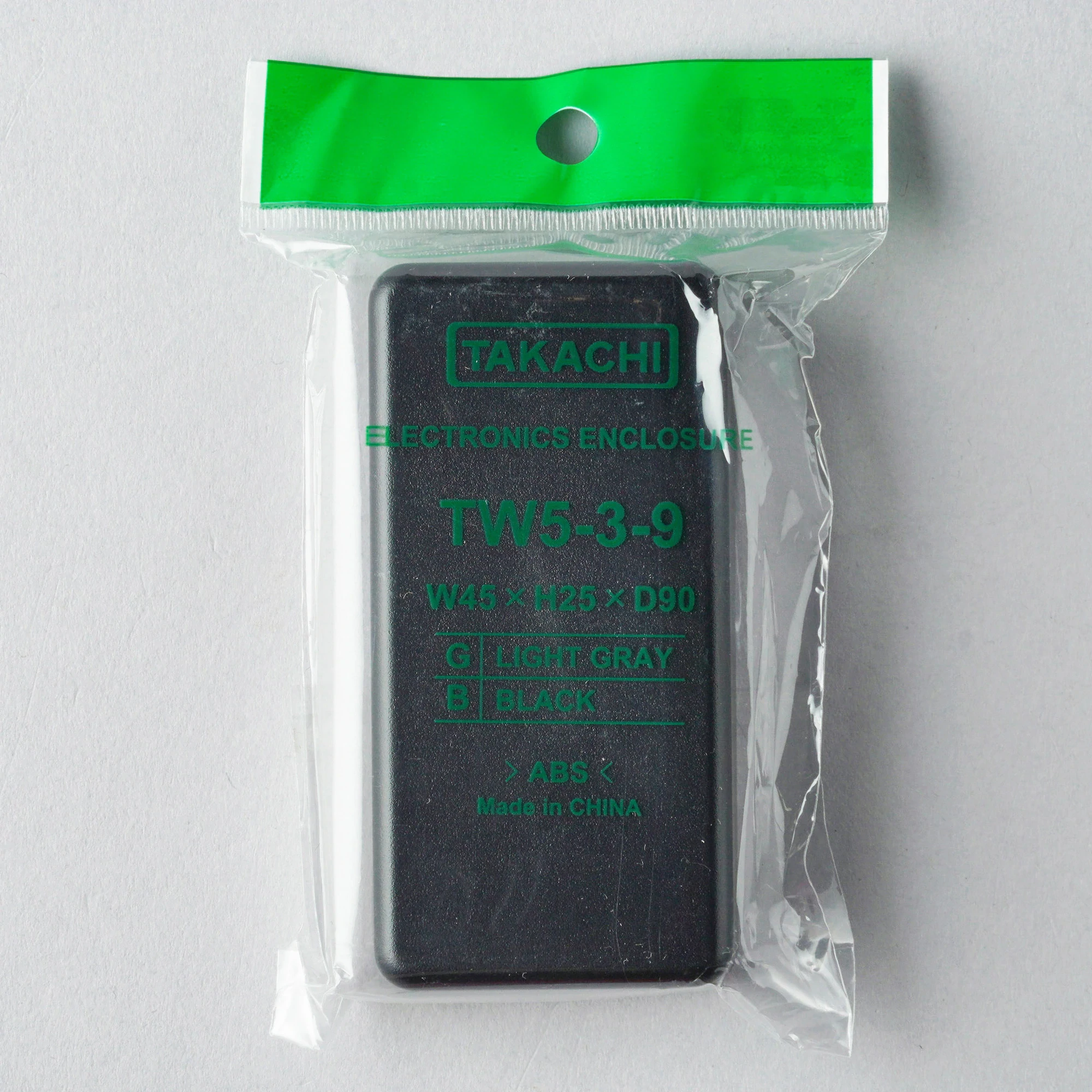

Part Number: TW5-3-9B
Accessories: M3 * 12 4 pieces (round flat tapping)
Material: Mounting screws: Steel
Type: Type B
Operating Temperature Range (Celsius degrees): -10 to 60

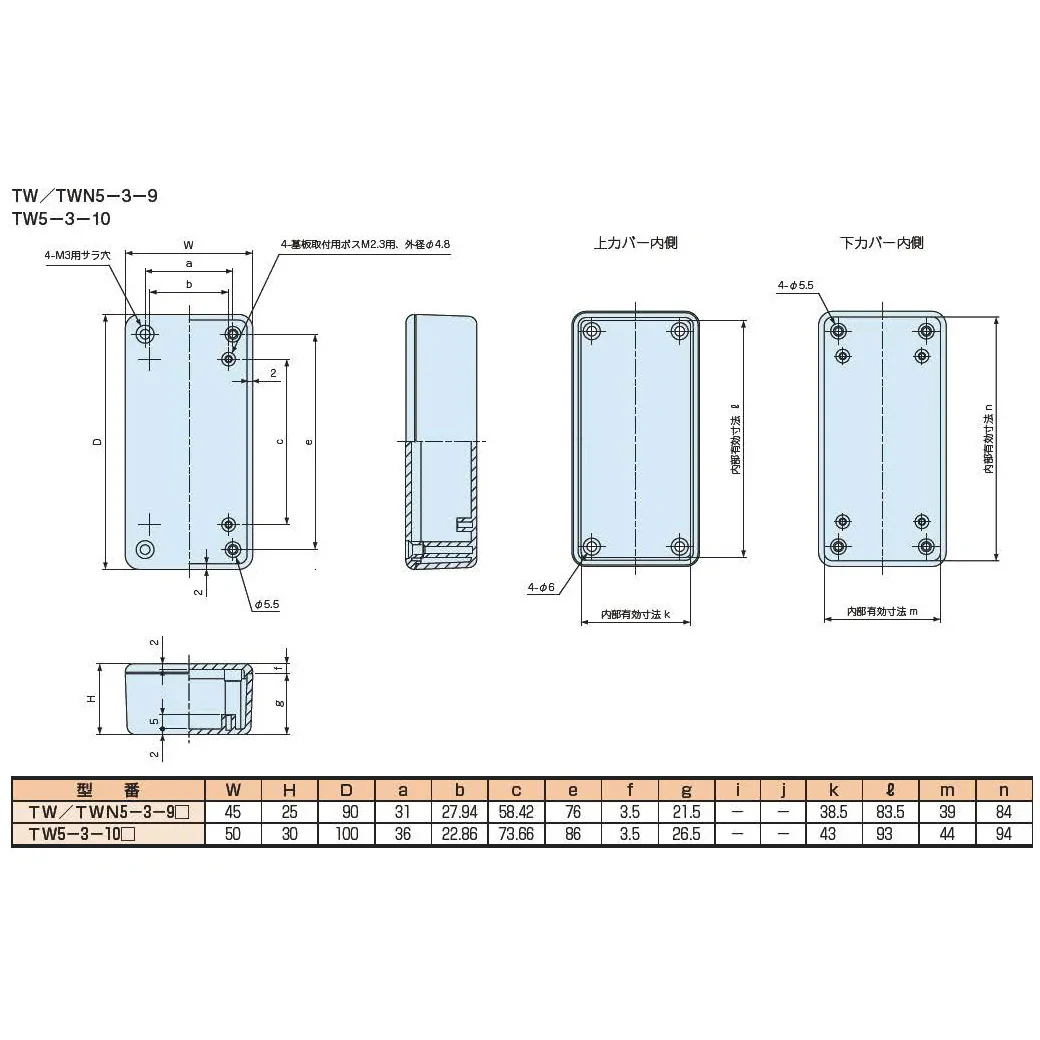

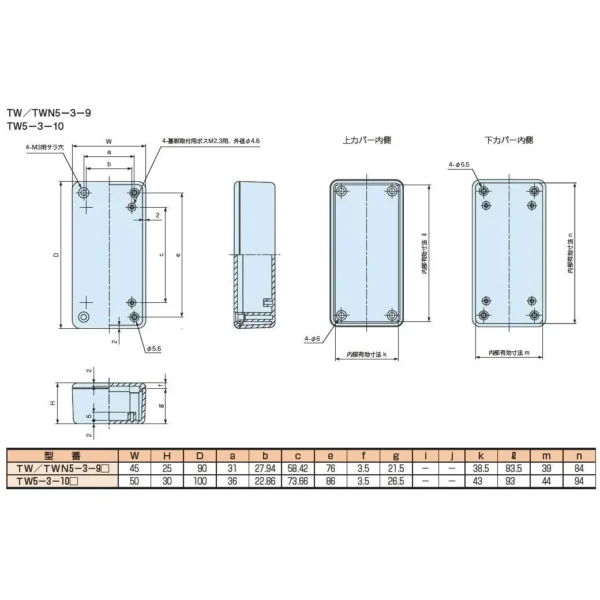

Dimension A (mm): –
Surface Treatment: Cover: Texture, Mounting screws: Trivalent black chromate
Dimension e (mm): –
Dimension l (mm): –
Outer Dimension D (mm): 90
Outer Dimension W (mm): 45
Outer Dimension H (mm): 25
Dimension b (mm): –
Dimension c (mm): –
Material (Cover): ABS resin UL94HB
Dimension g (mm): –
Dimension f (mm): –
Dimension k (mm): –
Dimension m (mm): –
Dimension n (mm): –
Material (Body): ABS resin (UL94HB)
Color (Cover): Black
Compatible Body Color: Black
RoHS Directive (10 substances compliance): Compliant

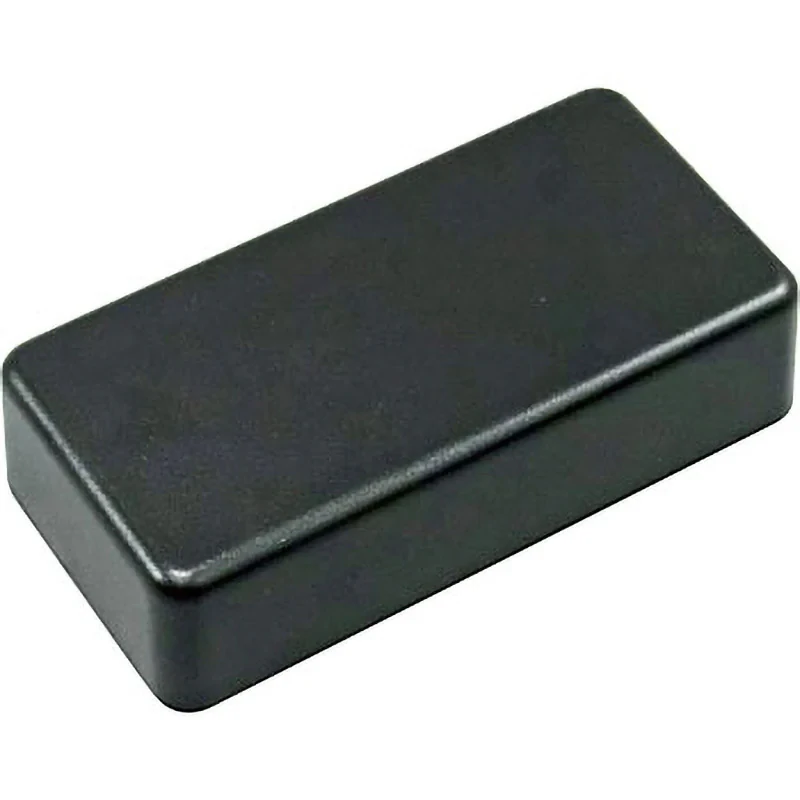

Characteristics: This is a Small General-Purpose Plastic Case with a screw fastening structure. It comes with bosses for circuit board mounting. It can be used for various devices such as measuring instruments, communication devices, and handheld controllers.
Weight (g): 30.5
Effective Dimension (Width) (mm): 37.7 (internal)
Effective Dimension (Depth) (mm): 69.4 (internal)
Effective Dimension (Height) (mm): 16 (internal)
Surface Treatment: (Body): Texture
This is a Small General-Purpose Plastic Case with a screw fastening structure. It comes with bosses for circuit board mounting. It can be used for various devices such as measuring instruments, communication devices, and handheld controllers.
