Description
Description: Quantity: 1 piece
Accessories: M2.6 * 12 4 pieces (Round pan tapping)
Weight (g): 22

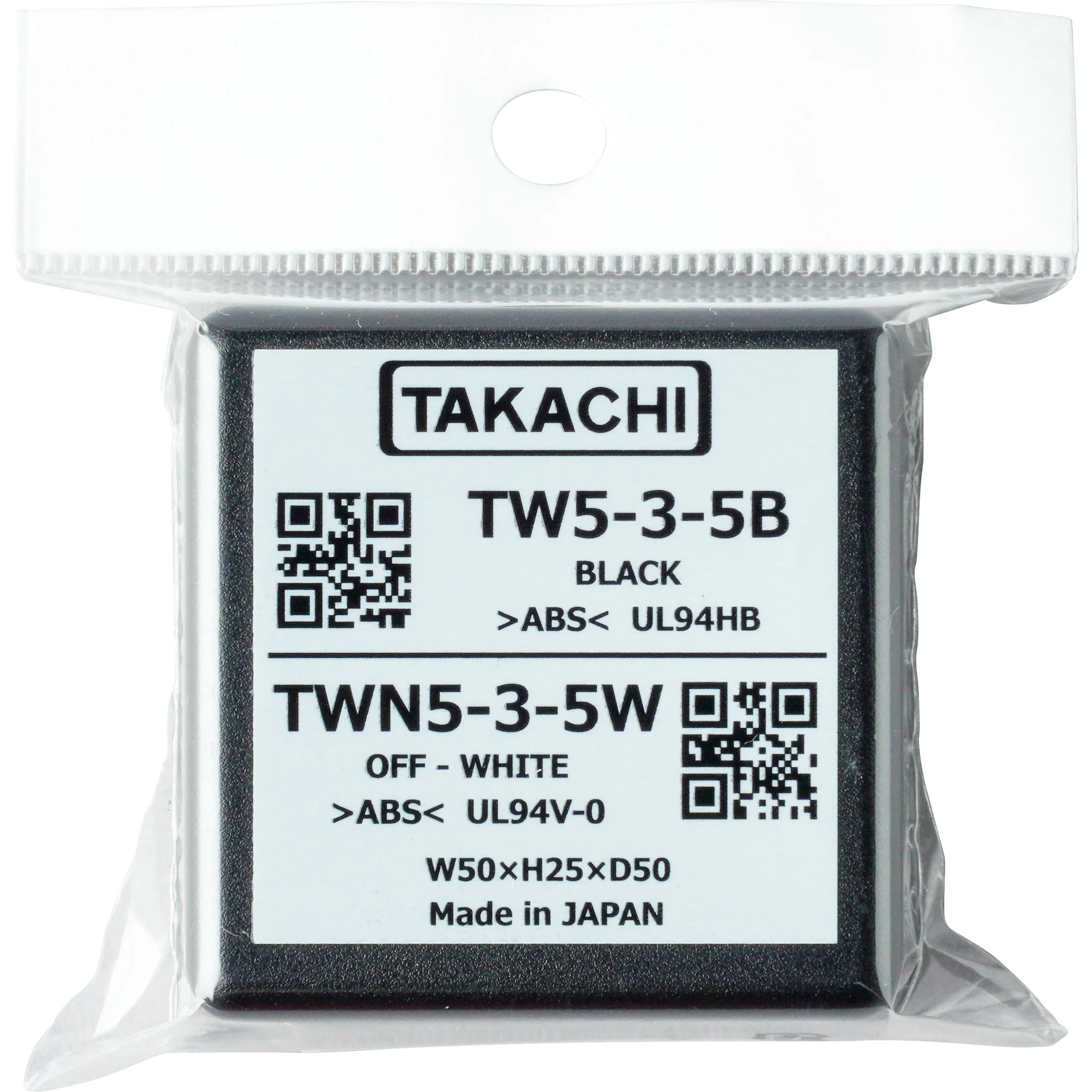

Part number: TW5-3-5B
Accessories: M2.6 * 12 4 pieces (Round pan tapping)
Material: Mounting screw: Steel
Type: Type B
Operating temperature range (Celsius degrees): -10 to 60

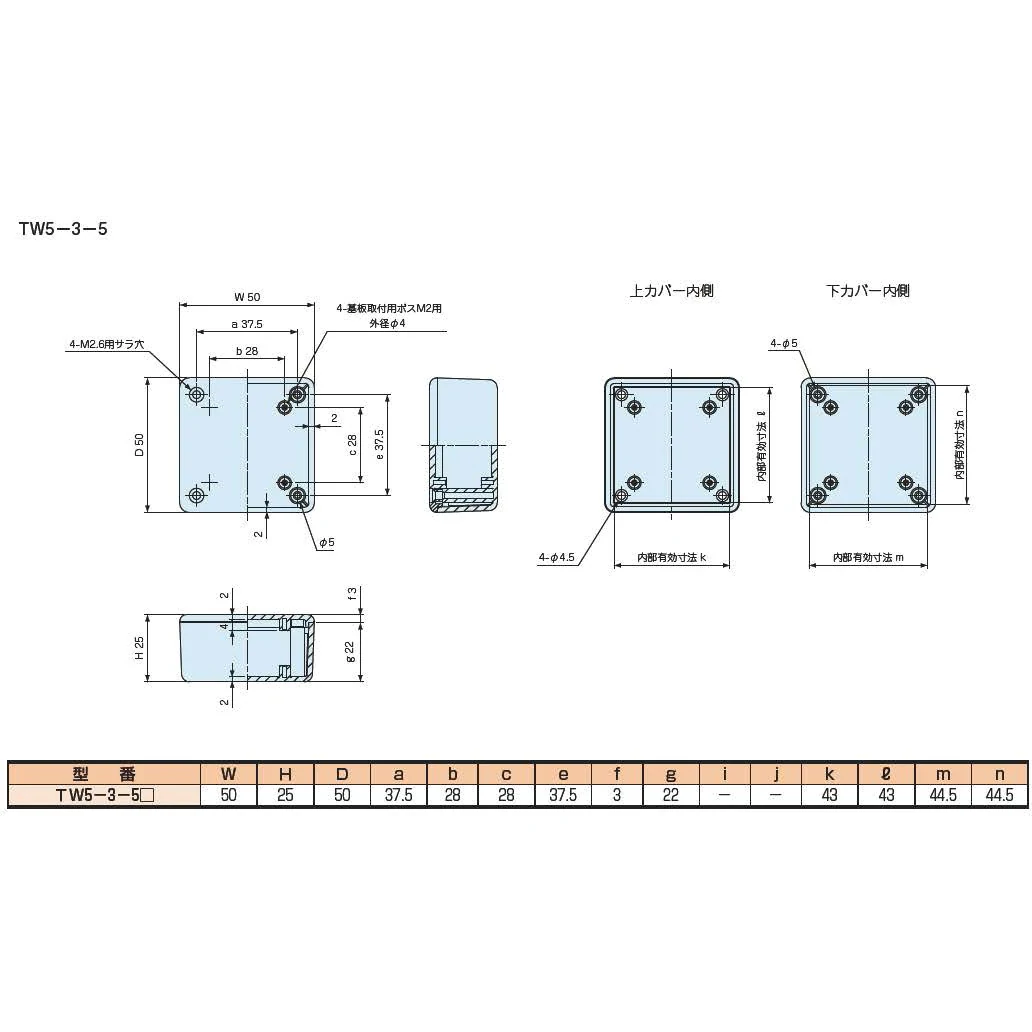

Dimension A (mm): 38.5
Surface treatment: Cover: Textured, Mounting screw: Trivalent black chromate
Dimension e (mm): 58.5
Dimension l (mm): 63.5
External dimension D (mm): 50
External dimension W (mm): 50
External dimension H (mm): 25
Dimension b (mm): 32
Dimension c (mm): 40
Material (Cover): ABS resin UL94HB
Dimension g (mm): 37
Dimension f (mm): 3
Dimension k (mm): 43.5
Dimension m (mm): 43
Dimension n (mm): 63
Material (Body): ABS resin (UL94HB)
Color (Cover): Black
Compatible body color: Black
RoHS Directive (10 substances compliance): Compliant

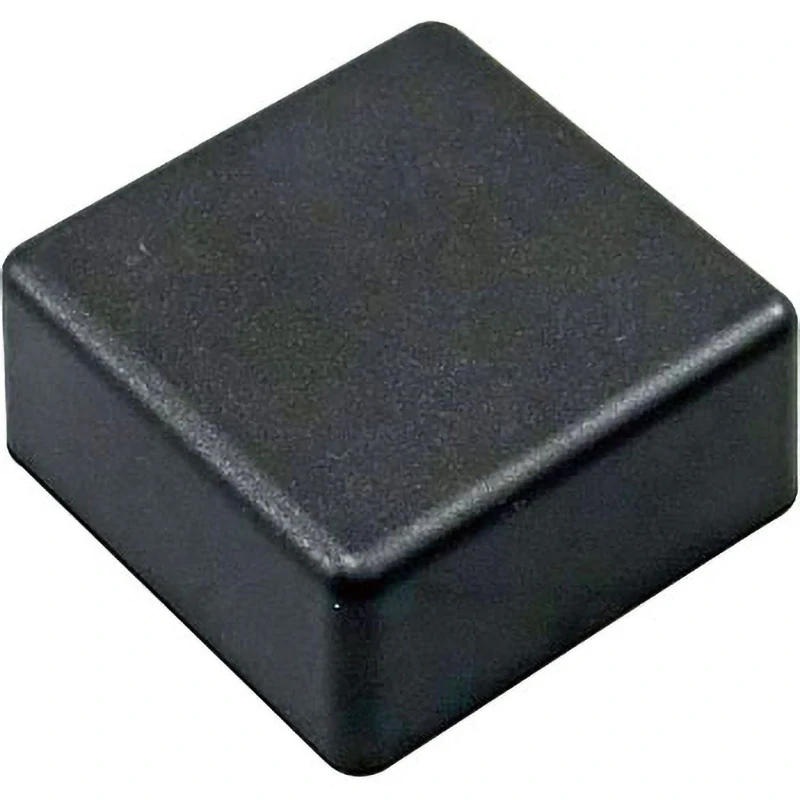

Characteristics: This is a Small General-Purpose Plastic Case with a screw fastening structure. It includes bosses for mounting circuit boards. It can be used for various devices such as measurement instruments, communication equipment, and handheld controllers.
Weight (g): 22
Effective dimension (Width) (mm): 42.8 (Internal)
Effective dimension (Depth) (mm): 31.9 (Internal)
Effective dimension (Height) (mm): 17 (Internal)
Surface treatment: (Body): Textured
This is a Small General-Purpose Plastic Case with a screw fastening structure. It includes bosses for mounting circuit boards. It can be used for various devices such as measurement instruments, communication equipment, and handheld controllers.
