Description
Length l (mm): 15;
Outer diameter D (mm): 12;
Inner diameter d (mm): 10;

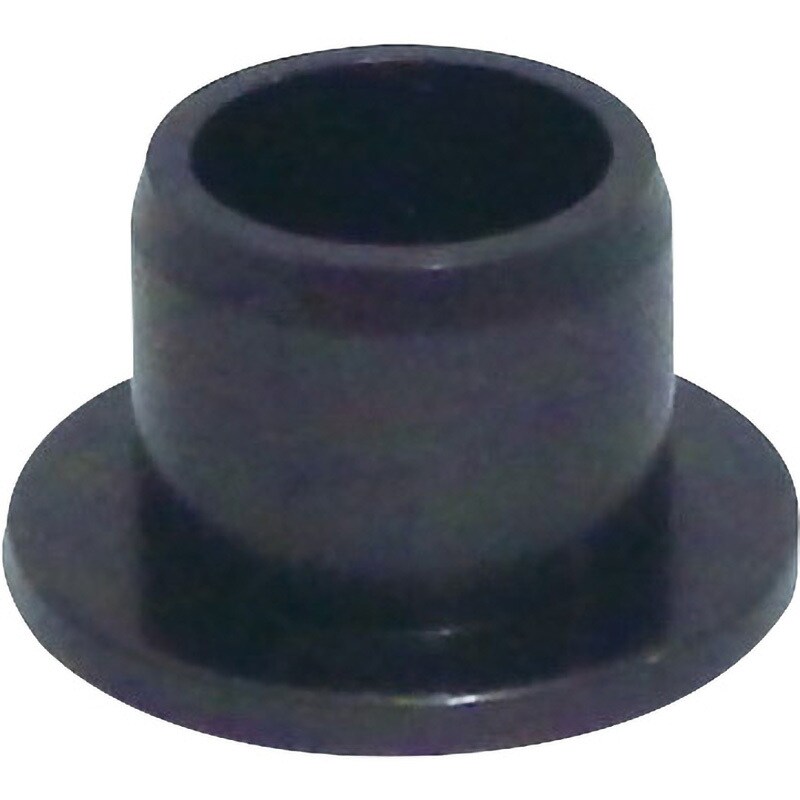

Type: #80 Flange Bush;
Material: Oil-impregnated polyacetal resin;
Operating temperature range (Celsius degrees): -40 to +80;
Lubrication method: Non – lubricated;
Allowable PV value (N/sq.mm*m/s) [kgf/sq.cm*m/min] 2.45 [1500] ;
Allowable maximum surface pressure P (N/sq.mm [kgf/sq.cm]): 17.5[179];
Allowable maximum speed V(m/s[m/min]): 0.85[51];
Flange diameter F (mm): 18;
Flange thickness t (mm): 1
