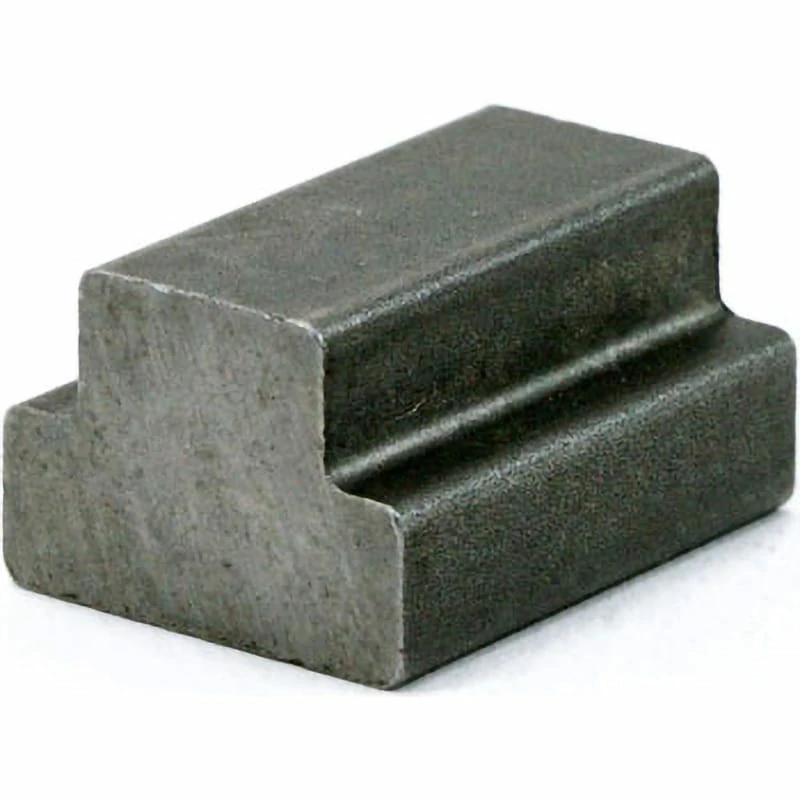

Description
Material: S45C
Compatible T-slot width (mm): 14

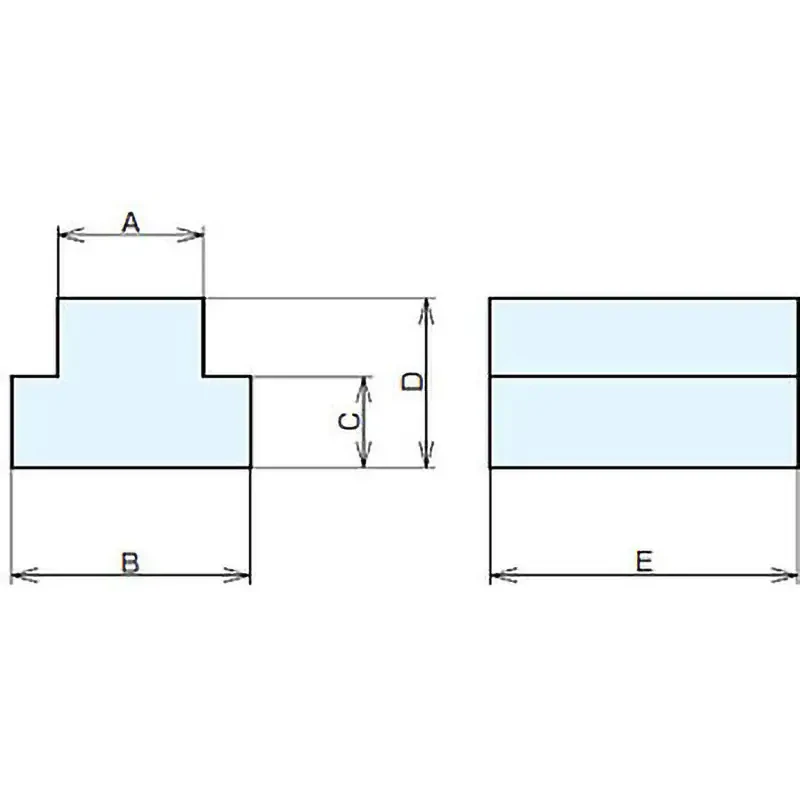

Dimension A (mm): 13.5 (plus or minus 0.3)
Dimension B (mm): 22.2
Dimension C (mm): 8.5
Dimension D (mm): 15.8
Dimension E (mm): 29
Weight (g): 64
RoHS directive (10 substances compliance): Compliant
Since it has not been hardened, it is easy to drill a tap hole suitable for the application.
