Description
Material: S45C
Compatible T-slot width (mm): 12

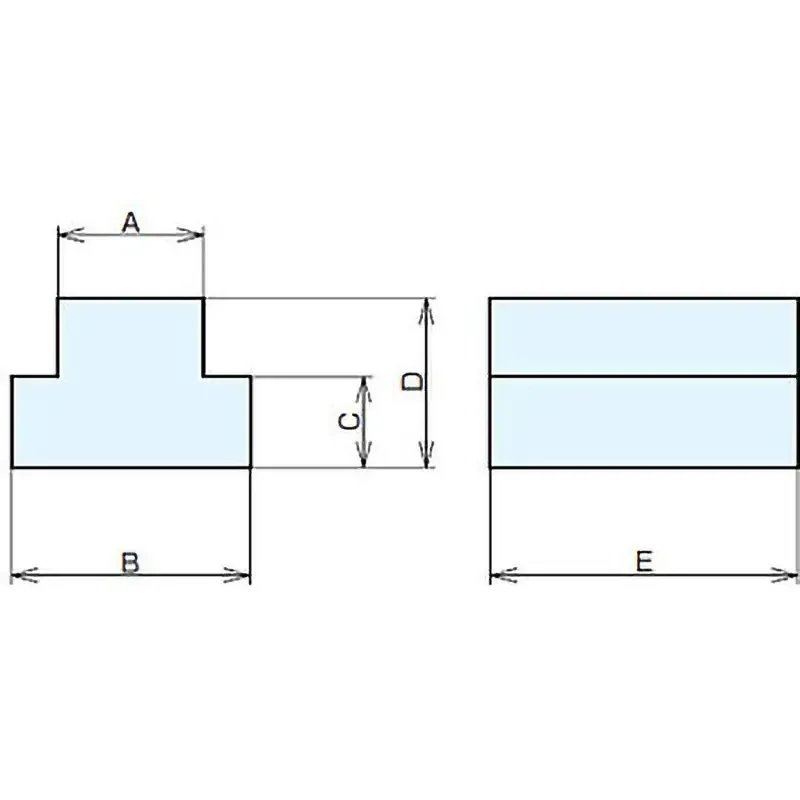

Dimension A (mm): 11.5 (plus or minus 0.3)
Dimension B (mm): 17.5
Dimension C (mm): 6.4
Dimension D (mm): 12.7
Dimension E (mm): 22
Weight (g): 32
RoHS Directive (10 substances compliance): Compliant
Since it is not hardened, it is easy to drill a tap hole suitable for the application.
