Description
Content Volume: 1 unit
Dimensions (Width * Height * Depth) (mm): 300 * 500 * 180
External Dimensions (Width * Height * Depth) (mm): –

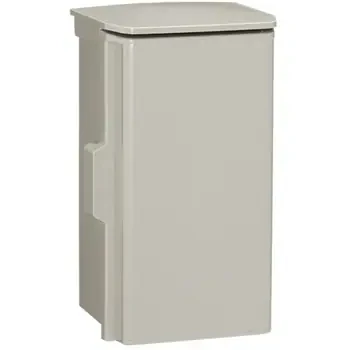

Model Number: OP18-35BA
Specifications: With Roof, Low Formaldehyde, Machining Hole Processing
Material: Body Roof: ABS Resin
Weight (kg): 3.2
Type: General-Purpose Type
Standards: CA (CA200, CA-G04)
Total Height (mm): 520
Protection Level: IP44
Effective Depth (mm): 149
Installation Location: Outdoor Use
Material (Door): ABS Resin
Color (Door): Light Beige (5Y7/1)
Color (Roof): Light Beige (5Y7/1)
Circuit Board Dimensions (Height * Width) (mm): 390 * 220
RoHS Directive (10 Substances Compliance): Compliant
Door Type: Single Door
Mounting Board: Wooden Board (15mm)
External Dimensions (Width * Height * Depth) (mm): –
External Dimensions Height (mm): 520
Color (Body): Light Beige (5Y7/1)
Dimensions (Width * Height * Depth) (mm): 300 * 500 * 180
Box Plate Thickness (mm): Door: 1.8闂?, Body: 1.8闂?.5
Effective Depth of Handle Section (mm): –
