Description
Content Volume: 1 unit
Dimensions (Width * Height * Depth) (mm): 350 * 300 * 160
External Dimensions (Width * Height * Depth) (mm): –

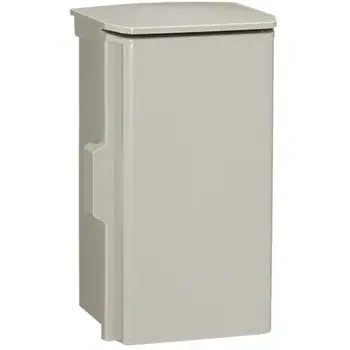

Model Number: OP16-353BA
Specifications: With roof, low formaldehyde, machining hole processing
Material: Body Roof: ABS resin
Weight (kg): 2.2
Type: General-Purpose Type
Standards: CA (CA200, CA-G04)
Total Height (mm): 319
Protection Class: IP44
Effective Depth (mm): 130
Installation Location: Outdoor use
Material (Door): ABS resin
Color (Door): Light beige (5Y7/1)
Color (Roof): Light beige (5Y7/1)
Circuit Board Dimensions (Height * Width) (mm): 210 * 290
RoHS Directive (10 substances compliance): Compliant
Door Type: Single Door
Mounting Board: Wooden board (15mm)
External Dimensions (Width * Height * Depth) (mm): –
External Dimensions Height (mm): 319
Color (Body): Light beige (5Y7/1)
Dimensions (Width * Height * Depth) (mm): 350 * 300 * 160
Box Plate Thickness (mm): Door: 1.8闂?, Body: 1.8闂?.5
Effective Depth of Handle (mm): –
