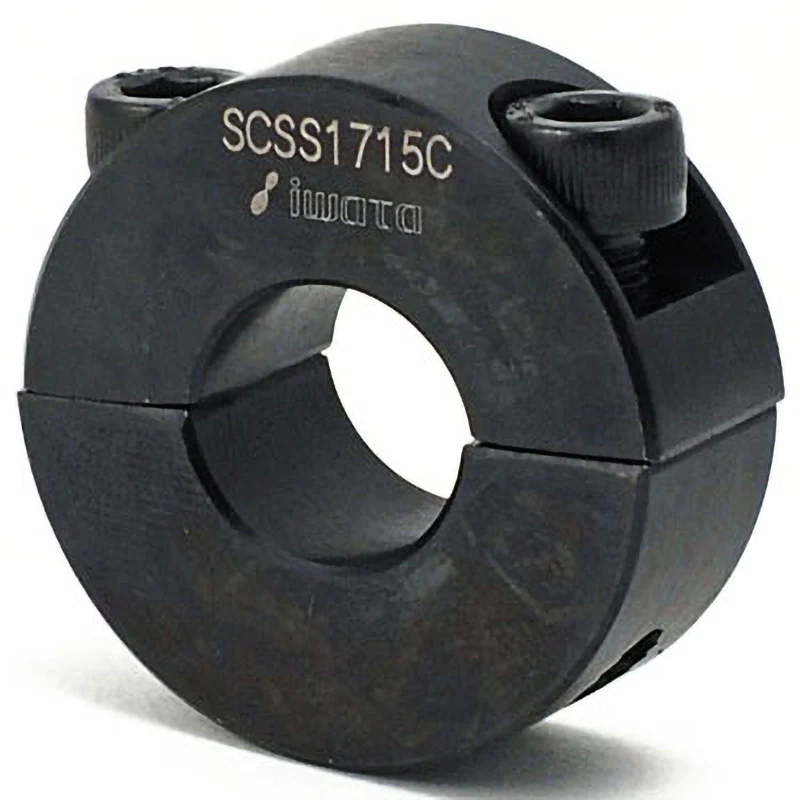

Description
Inner diameter B(mm): 17;
Outer diameter D (mm): 40(plus or minus 0.1);
Width L(mm): 15(plus or minus 0.1);
Dimension R(mm): 6;
Dimension W(mm): 1.5;
Dimension X(mm): 13;
Dimension Y(mm): 8;
Dimension d(mm): 7;
Material: S45C;
Accessories: Two hexagon socket bolts (blackened);
Type: Separate;
Set screw: M6 plus P1.0;
Surface treatment: Blackening (alkaline coloring finish);
Hexagon socket bolt: M6 plus 20;
Compliant with RoHS Directive (corresponding to 10 substances)
