Description
Contents: 1 piece
Suitable bolt diameter: M16*2.0
T-slot width: 18mm
Part number: 1816-RTN
Suitable bolt diameter: M16*2.0
TRUSCO Part No. 398-7124
Weight (g): 30
T-slot width: 18mm

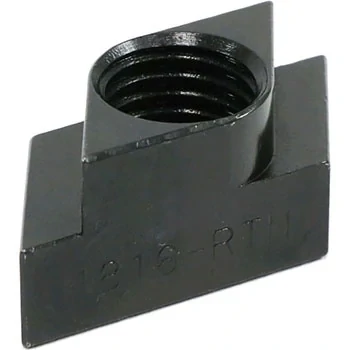

Purpose: This is a bolt fastening nut for T-slots. It is used when additional clamping locations arise after the initial clamping is completed.
Material: Steel (S45C)
Black Oxide finish, hardened (HRC30)
Can be set into the T-slot without disturbing the clamping set from the top surface of the bed. It has a design to prevent bolt penetration, similar to a standard T-nut.
