Description
Description: Quantity: 1 piece
Coil Rated Voltage (V): AC200
Auxiliary Contact: 1b
Model Number: SW-0
Rated Continuous Current (A): 20
Rated Operating Voltage (V): AC200
Auxiliary Contact: 1b
Coil Rated Voltage (V): AC200
Motor Capacity (kW): 2.2
Main Circuit Voltage (V): AC200
Standard Overseas Standards: IEC, EN, VDE, BS, UL, CSA certified
Mechanical Durability: 10 million cycles
Weight (kg): 0.43

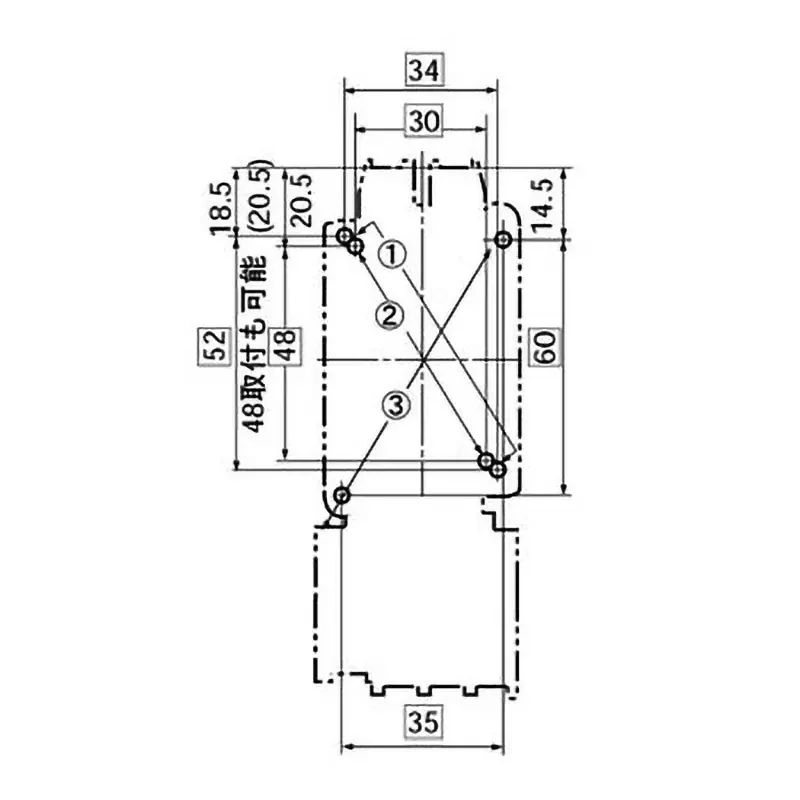

Mounting Screw: 2-M4
Compatible Rail Width (mm): 35
Electrical Durability: 2 million cycles (AC-3), 30,000 cycles (AC-4), 500,000 cycles (AC-1)
Heat Element Rated Setting Range (A): 7-11
Compatible Thermal Relay: TR-0N
Coil Voltage (V): AC200
Type: Electromagnetic Contactor
Operating Method: Non-reversible
Form: SW-0
Model: SW-0

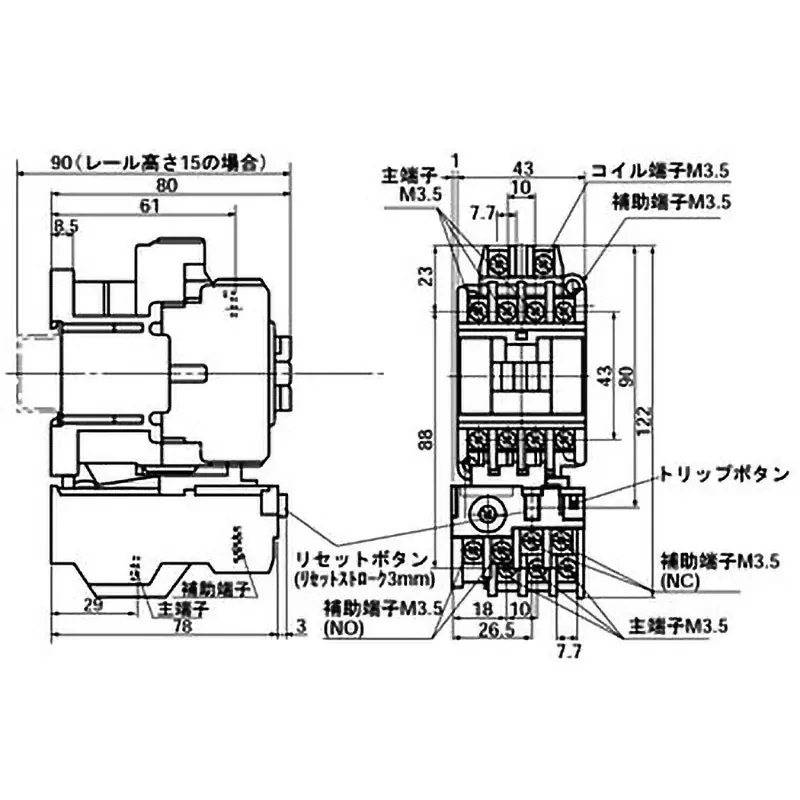

External Dimensions (Width W * Height H * Depth D) (mm): 44 * 122 * 80
Rated Capacity (kW) Three-phase Squirrel Cage Motor (AC-3): (200-240V) 2.7, (380-440V) 4
Rated Operating Current (A) Three-phase Squirrel Cage Motor (AC-3): (200-240V) 13, (380-440V) 9
Rated Operating Current (A) Single-phase Motor (AC-3): (100V) 13, (220V) 13
Rated Capacity (kW) Single-phase Motor (AC-3): (100V): 0.5, (220V) 1
Rated Capacity (kW) Inch Plugging (AC-4): (200-240V) 2.2, (380-440V) 4
Rated Operating Current (A) Inch Plugging (AC-4): (200-240V) 11, (380-440V) 9
Rated Operating Current (A) Resistive Load (AC-1): (200-240V) 20, (380-440V) 20
Contact Configuration: [Auxiliary] Double Contact
Accessories: 2 Heat Element Thermal Relay included
Protection Structure: Without Case Cover
Series: New SC Series
Frame: Type 0
Rated Insulation Voltage (V): 690
Rated Frequency (Hz): 50/60
Operating Characteristics: Standard
Reset Method: Manual
Rated Impulse Withstand Voltage (kV): 6
Switching Frequency (cycles/hour): 1800 (AC-3), 600 (AC-4)
Heat Element Rated Call (A): 7
Case Presence: Without Case Cover
Operating Method: AC Operated Type
Terminal Cover: None
Overseas Standards (IEC, EN, VDE, BS, UL, CSA) compliant with standard products certification obtained
Auxiliary contacts are standard equipped with high contact reliability double contacts
