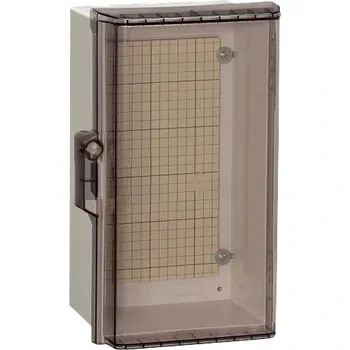

Description
Quantity: 1 unit
Dimensions (Width * Height * Depth) (mm): –
External Dimensions (Width * Height * Depth) (mm): 600 * 500 * 200
Part Number: P20-65CA
Specifications: Transparent door, Low formaldehyde, Machining hole processing
Material: Body: ABS resin
Weight (kg): 6.6
Type: General-Purpose Type
Standards: CA (CA200, CA-G04)
Protection Grade: IP43
Effective Depth (mm): 165
Installation Location: Indoor / Outdoor compatible
Material (Door): Acrylic resin
Color (Door): Light Smoke color
Color (Roof): –
Board Dimensions (Vertical * Horizontal) (mm): 390 * 520
RoHS Directive (10 substances compliant): Compliant
Door Type: Single door
Mounting Board: Wooden board (15mm)
External Dimensions (Width * Height * Depth) (mm): 600 * 500 * 200
External Dimensions (Height) (mm): –
Color (Body): White Gray color (5YR8.5/0.5)
Dimensions (Width * Height * Depth) (mm): –
Box Plate Thickness (mm): Door Body: 1.8闂?.5
Handle Effective Depth (mm): –
