Description
Contents: 1 unit
Dimensions (Width * Height * Depth) (mm): –
External Dimensions (Width * Height * Depth) (mm): 500 * 500 * 200

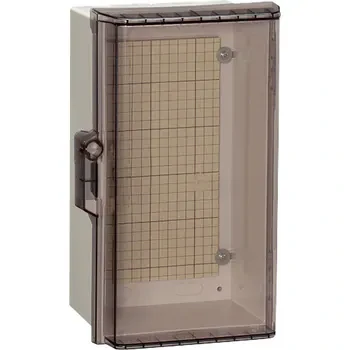

Model Number: P20-55CA
Specifications: Transparent door, low formaldehyde, machining hole processing
Material: Body: ABS resin
Weight (kg): 5.5
Type: General-Purpose Type
Standard: CA (CA200, CA-G04)
Protection Level: IP43
Effective Depth (mm): 165
Installation Location: Indoor/Outdoor Compatible
Material (Door): Acrylic resin
Color (Door): Light Smoke Color
Color (Roof): –
Circuit Board Dimensions (Height * Width) (mm): 390 * 420
RoHS Directive (10 Substances Compliance): Compliant
Door Type: Single Door
Mounting Board: Wooden Board (15mm)
External Dimensions (Width * Height * Depth) (mm): 500 * 500 * 200
External Dimensions Height (mm): –
Color (Body): White Gray Color (5YR8.5/0.5)
Dimensions (Width * Height * Depth) (mm): –
Box Plate Thickness (mm): Door Body: 1.8闂?.5
Effective Depth of Handle Part (mm): –
