Description
Width B (mm): 23;
Outer diameter D (mm): 120;
Inner diameter d (mm): 65;
Mounting-related Dimension (Maximum Da)(mm): 112;
Mounting-related Dimension (Maximum da)(mm): 80;
Mounting-related Dimension (Minimum da)(mm): 73;
Mounting-related Dimension (Maximum ra)(mm): 1.5;
Chamfer dimension r (mm): 1.5(minimum);
Shield shape: Double – sided non – contact seal type;

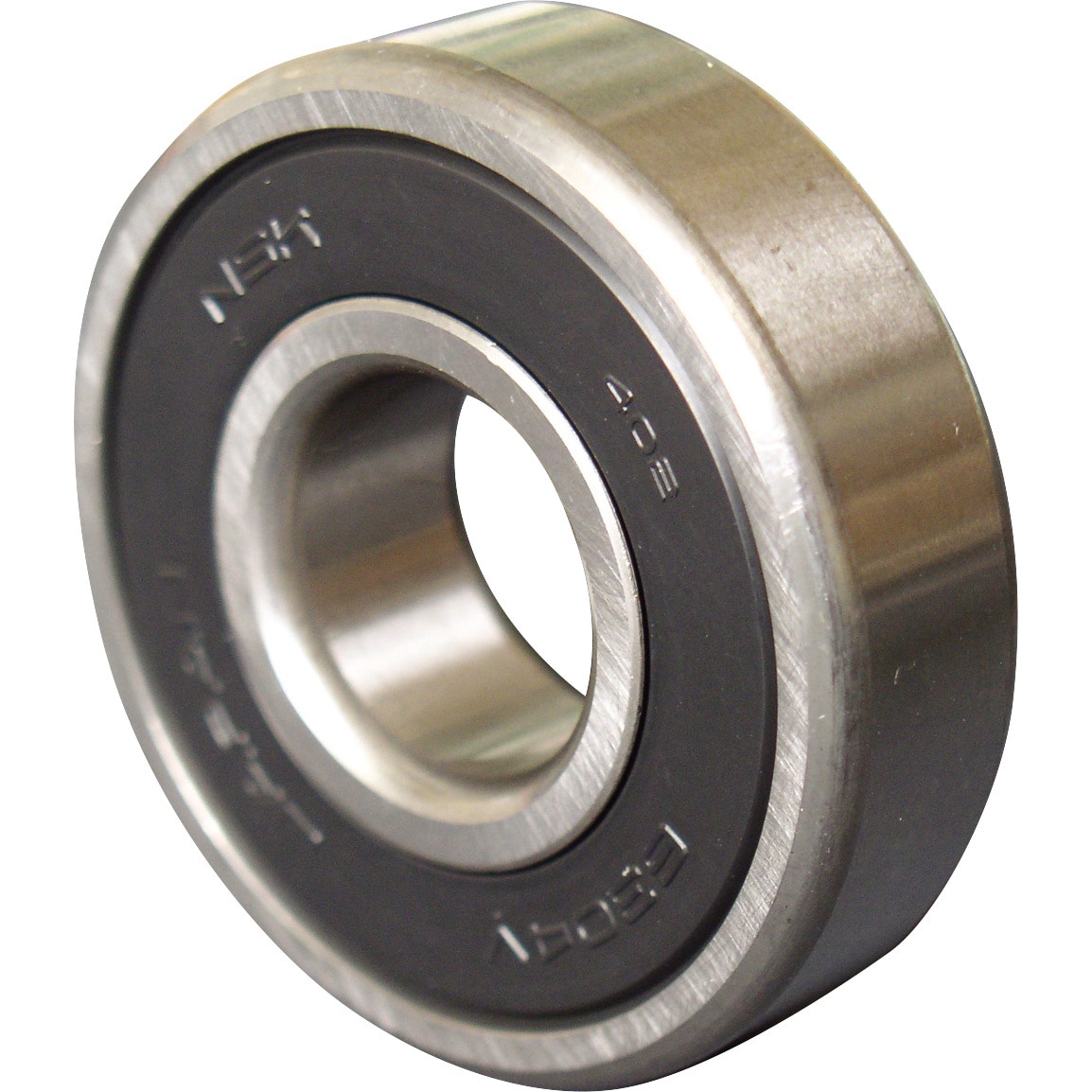

Raceway ring shape: Deep groove ball bearing;
Outer ring type: Flat;
Number of raceway ring rows: Single row;
Material: (Main body) High carbon chromium bearing steel;
Mass (g): 1000;
Coefficient: 14.4;
Designation: 6213;
Allowable rotational speed (/min [r.p.m]) Grease lubrication: 5300;
JIS grade: 0;
Basic rated load Cor (N): 40000;
Basic rated load Cr (N): 57500;
Load direction: Radial;
Rolling element Material: High carbon chromium bearing steel;
Bearing series: 6200
