Description
Width B (mm): 17;
Outer diameter D (mm): 72;
Inner diameter d (mm): 35;
Mounting-related Dimension (Maximum Da)(mm): 65.5;
Mounting-related Dimension (Maximum da)(mm): 44.5;
Mounting-related Dimension (Minimum da)(mm): 41.5;
Mounting-related Dimension (Maximum ra)(mm): 1;
Chamfer dimension r (mm): 1.1(minimum);
Shield shape: Double – sided non – contact seal type;
Raceway ring shape: Deep groove ball bearing;
Outer ring type: Flat;
Number of raceway ring rows: Single row;
Material: (Main body) High carbon chromium bearing steel;
Mass (g): 284;
Coefficient: 13.8;

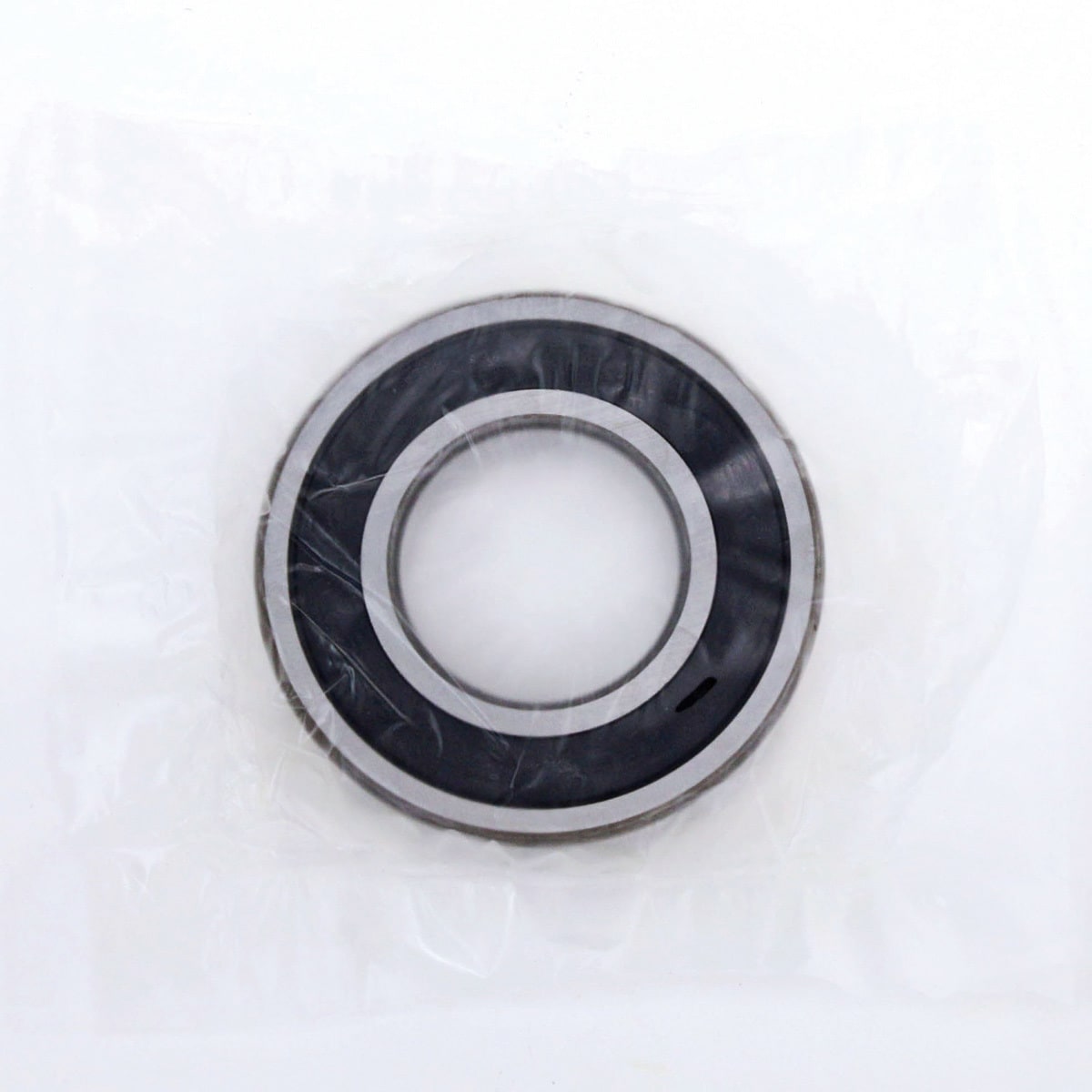

Designation: 6207;
Allowable rotational speed (/min [r.p.m]) Grease lubrication: 9500;
JIS grade: 0;
Basic rated load Cor (N): 15300;
Basic rated load Cr (N): 25700;
Load direction: Radial;
Rolling element Material: High carbon chromium bearing steel;
Bearing series: 6200
