Description

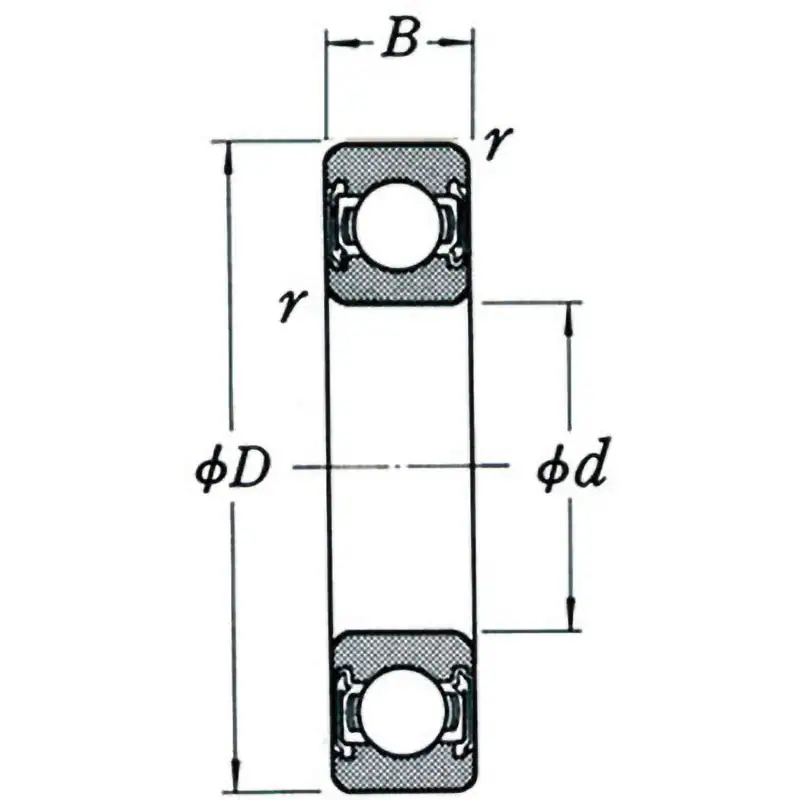

Width B (mm): 17;
Outer diameter D (mm): 65;
Inner diameter d (mm): 32;
Mounting-related Dimension (Maximum Da)(mm): 60;
Mounting-related Dimension (Maximum da)(mm): 40;
Mounting-related Dimension (Minimum da)(mm): 37;
Mounting-related Dimension (Maximum ra)(mm): 1;
Chamfer dimension r (mm): 1(minimum);
Shield shape: Double – sided non – contact seal type;
Raceway ring shape: Deep groove ball bearing;
Outer ring type: Flat;
Number of raceway ring rows: Single row;
Material: (Main body) High carbon chromium bearing steel;
Mass (g): 225;
Coefficient: 13.6;
Designation: 62/32;
Allowable rotational speed (/min [r.p.m]) Grease lubrication: 10000;
JIS grade: 0;
Basic rated load Cor (N): 11600;
Basic rated load Cr (N): 20700;
Load direction: Radial;
Rolling element Material: High carbon chromium bearing steel
