Description
Width B (mm): 16;
Outer diameter D (mm): 62;
Inner diameter d (mm): 30;
Mounting-related Dimension (Maximum Da)(mm): 57;
Mounting-related Dimension (Maximum da)(mm): 38.5;
Mounting-related Dimension (Minimum da)(mm): 35;
Mounting-related Dimension (Maximum ra)(mm): 1;
Chamfer dimension r (mm): 1(minimum);
Shield shape: Double – sided non – contact seal type;
Raceway ring shape: Deep groove ball bearing;
Outer ring type: Flat;
Number of raceway ring rows: Single row;
Material: (Main body) High carbon chromium bearing steel;
Mass (g): 199;
Coefficient: 13.8;

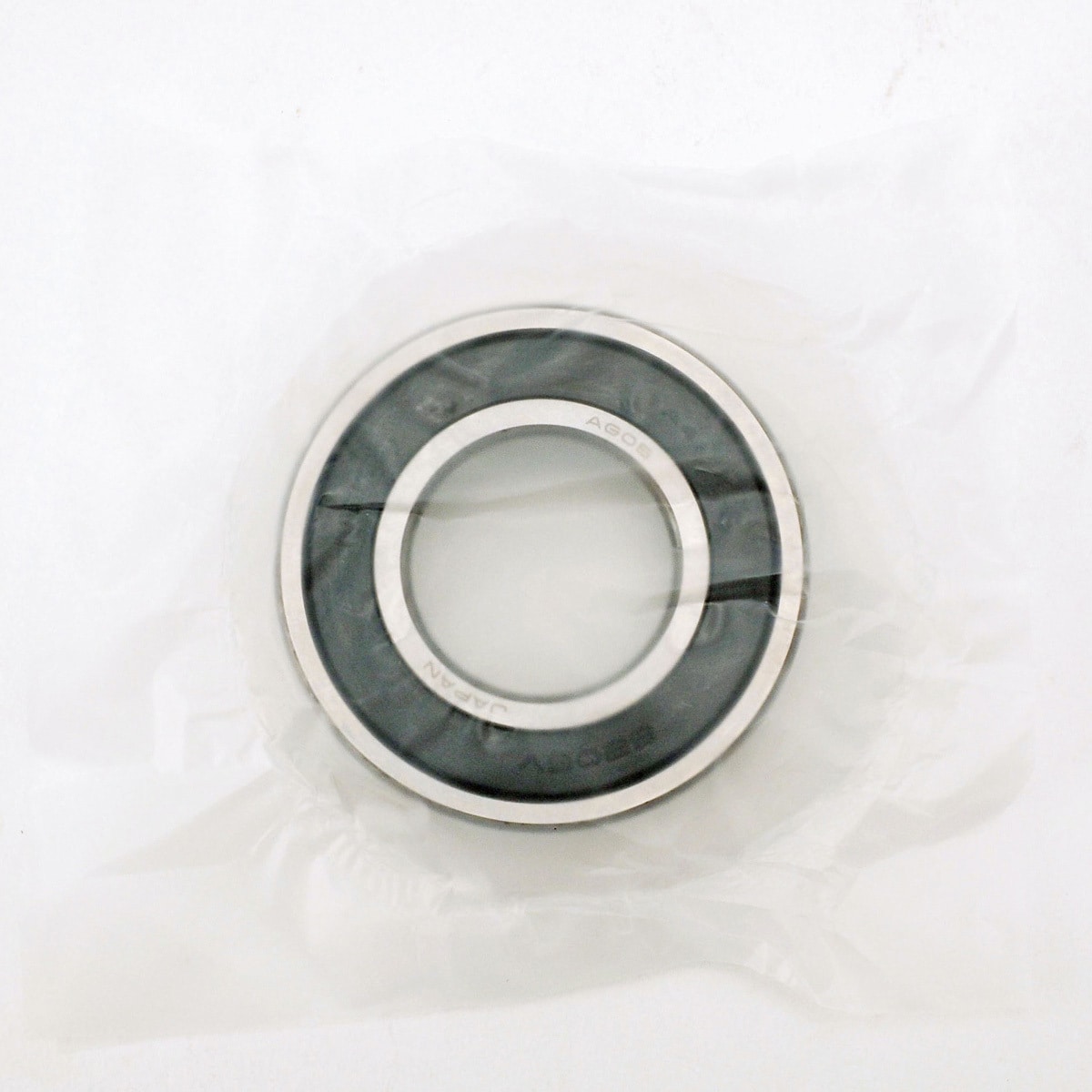

Designation: 6206;
Allowable rotational speed (/min [r.p.m]) Grease lubrication: 11000;
JIS grade: 0;
Basic rated load Cor (N): 11300;
Basic rated load Cr (N): 19500;
Load direction: Radial;
Rolling element Material: High carbon chromium bearing steel;
Bearing series: 6200
