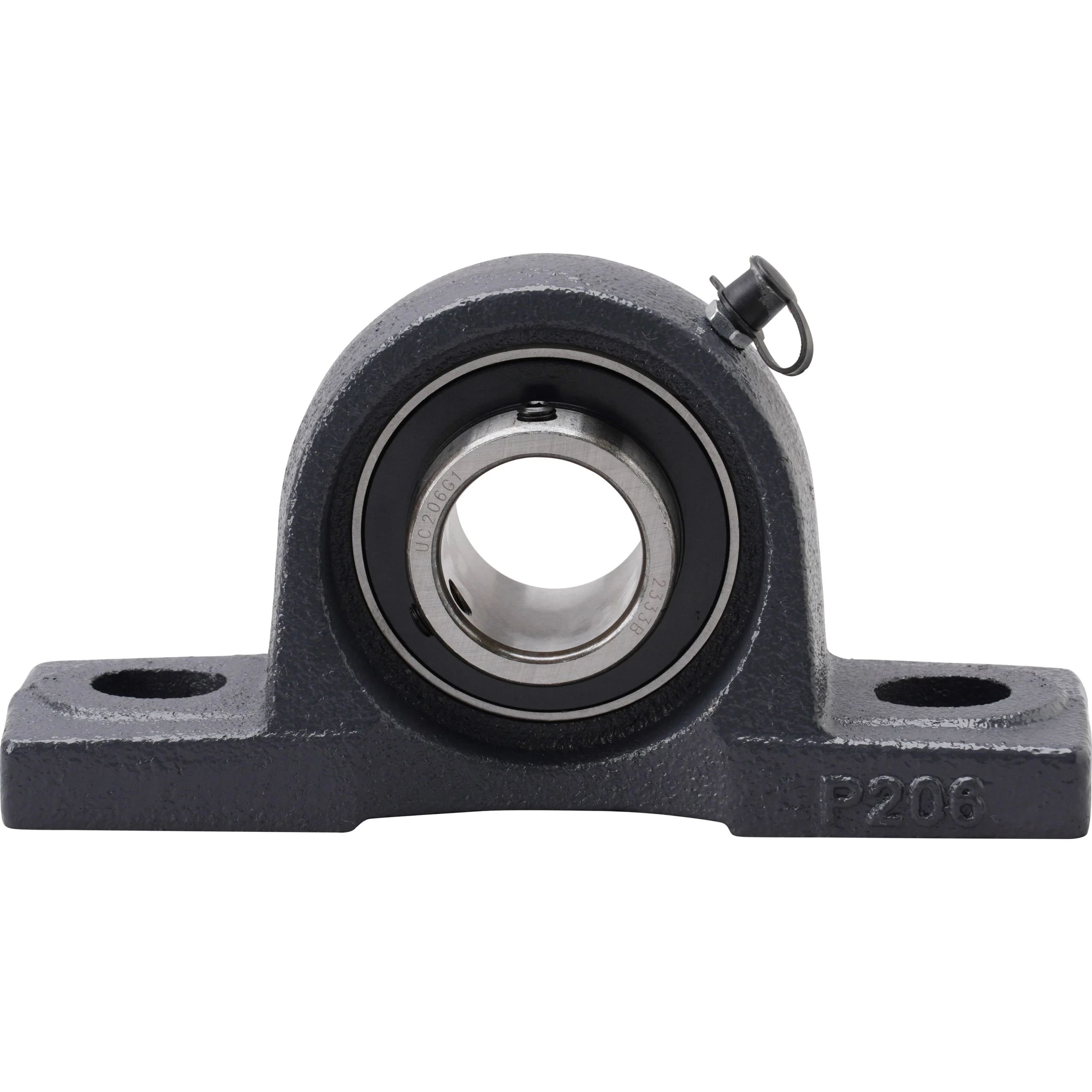

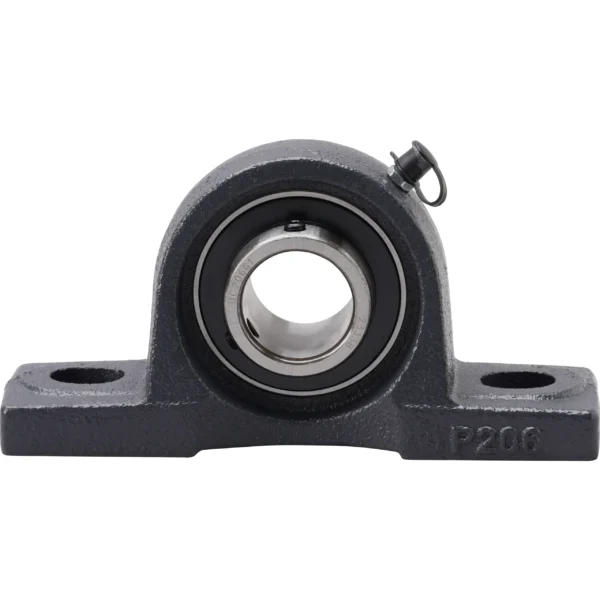

Description
Usage: For supporting the roll;
Material: Bearing: High carbon chromium steel, ;
Bearing housing: Grey cast iron;
Shaft diameter (mm):30;
Shape: Pillow shape;
Mass (kg): 1.32;
Dimension l (mm): 165;
Dimension h (mm): 42.9;
Basic static load rating (kN): 11.2;
Basic dynamic load rating (kN): 19.4;
Nominal size of the mounting bolt: M14;
Dimension A(mm): 48;
Dimension S(mm): 15.9;
Dimension b (mm): 38.1;
Dimension N(mm): 17;
Dimension J(mm): 121;
Dimension H1(mm): 17;
Dimension H2(mm): 83;
Dimension N1(mm): 21
