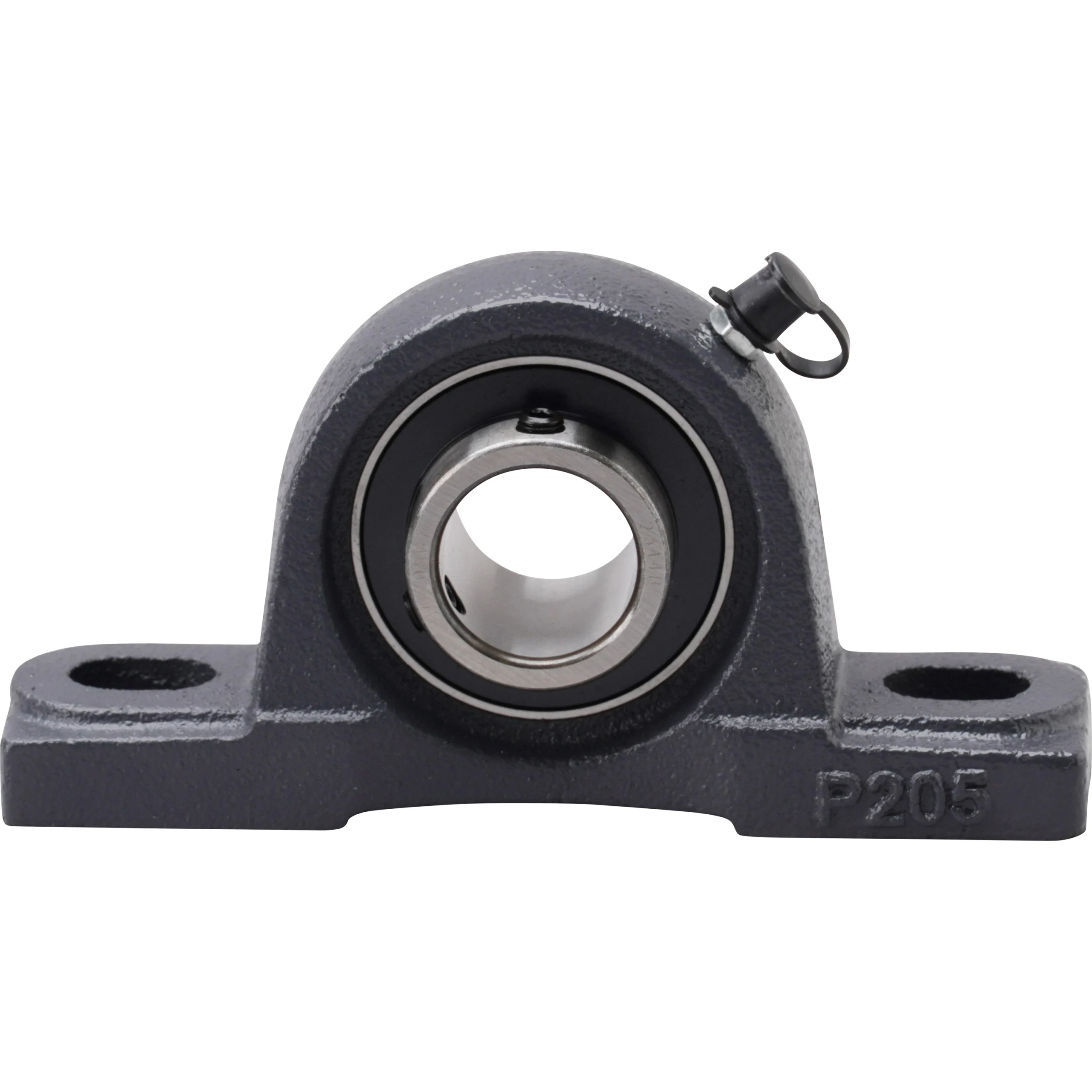

Description
Usage: For supporting the roll;
Material: Bearing: High carbon chromium steel, ;
Bearing housing: Grey cast iron;
Shaft diameter (mm):25;
Shape: Pillow shape;
Mass (kg): 0.91;
Dimension l (mm): 140;
Dimension h (mm): 36.5;
Basic static load rating (kN): 7.8;
Basic dynamic load rating (kN): 14;
Nominal size of the mounting bolt: M10
Dimension A(mm): 38;
Dimension S(mm): 14.3;
Dimension b (mm): 34.1;
Dimension N(mm): 13;
Dimension J(mm): 105;
Dimension H1(mm): 15;
Dimension H2(mm): 71;
Dimension N1(mm): 19
