Description
Quantity: 1 unit
Dimensions (Width * Height * Depth) (mm): –
External Dimensions (Width * Height * Depth) (mm): 250 * 250 * 120

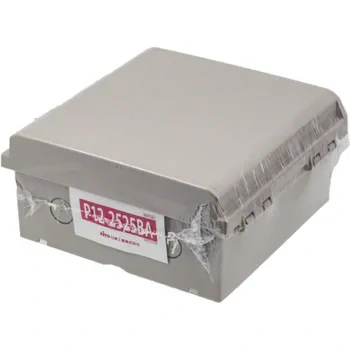

Model Number: P12-2525BA
Specifications: Low formaldehyde, machining hole processing
Material: Body: ABS resin
Weight (kg): 0.9
Type: General-Purpose Type
Standard: CA (CA200, CA-G04)
Protection Rating: IP43
Effective Depth (mm): 90
Installation Location: Indoor/Outdoor compatible
Material (Door): ABS resin
Color (Door): Light beige (5Y7/1)
Color (Roof): –
Board Dimensions (Height * Width) (mm): 160 * 190
RoHS Directive (10 Substances Compliance): Compliance
Door Type: Single Door
Mounting Board: Wooden board (9mm)
External Dimensions (Width * Height * Depth) (mm): 250 * 250 * 120
External Dimensions Height (mm): –
Color (Body): Light beige (5Y7/1)
Dimensions (Width * Height * Depth) (mm): –
Box Plate Thickness (mm): Door: 1.8闂?, Body: 1.8闂?.5
Handle Effective Depth (mm): –
