Description
Quantity: 1 piece
Dimension L (mm) (MAX): 13.4
Takigen Code: 21356
Part Number: CP-522-5-5 Black (set)
Compatible Panel Thickness (mm): t1: 5.3, t2 (MAX): 2, t3 (MAX) 6.8, (MIN) 8.1
Head Shape: Mini
Dimension L (mm) (MAX): 13.4
Takigen Code: 21356
Application: Panel fastening for measuring instruments
Material: Plunger/Polyamide (PA), Grommet/Polycarbonate (PC)
Color: Black
Weight (g): Nylatch 1 set / Average 1.32, Nylatch Plunger Weight / Average 0.82

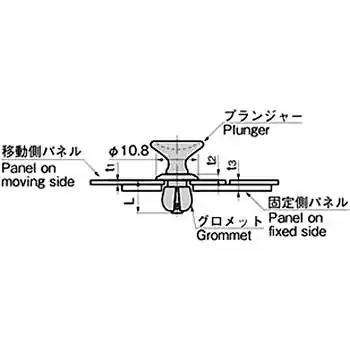

Align the fixed panel and the movable panel, and pressing the plunger head will secure it.
