Description
Quantity: 1 piece
Dimensions L(mm)(MAX): 12.3
Takigen Code: 21353
Part Number: CP-522-4-5 Black(set)

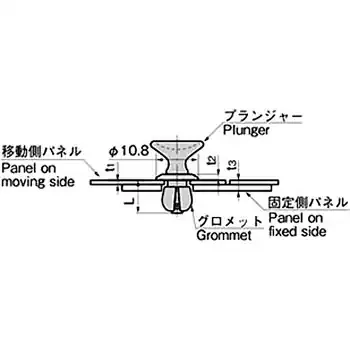

Compatible Panel Thickness (mm): t1: 4.1, t2(MAX): 2, t3(MAX): 5.6, (MIN): 6.9
Head Shape: Easy
Dimensions L(mm)(MAX): 12.3
Takigen Code: 21353
Application: Panel fixing for measuring instruments
Material: Plunger/Polyamide (PA), Grommet/Polycarbonate (PC)
Color: Black
Weight (g): Nylatch 1 set/average 1.32, Nylatch plunger weight/average 0.82
Align the fixed side panel and the movable side panel, then press the plunger head to secure it.
