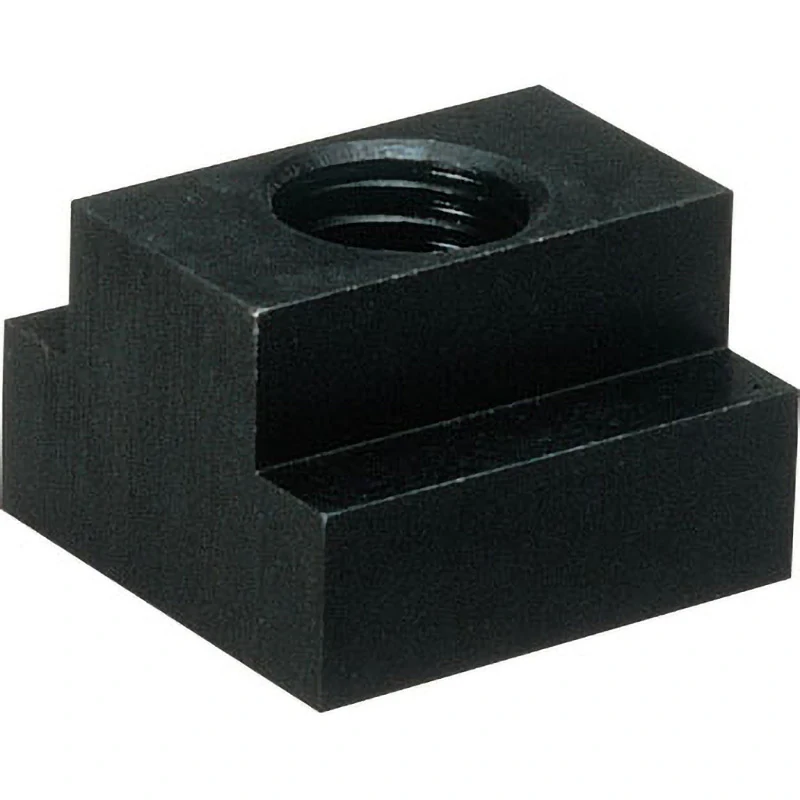

Description

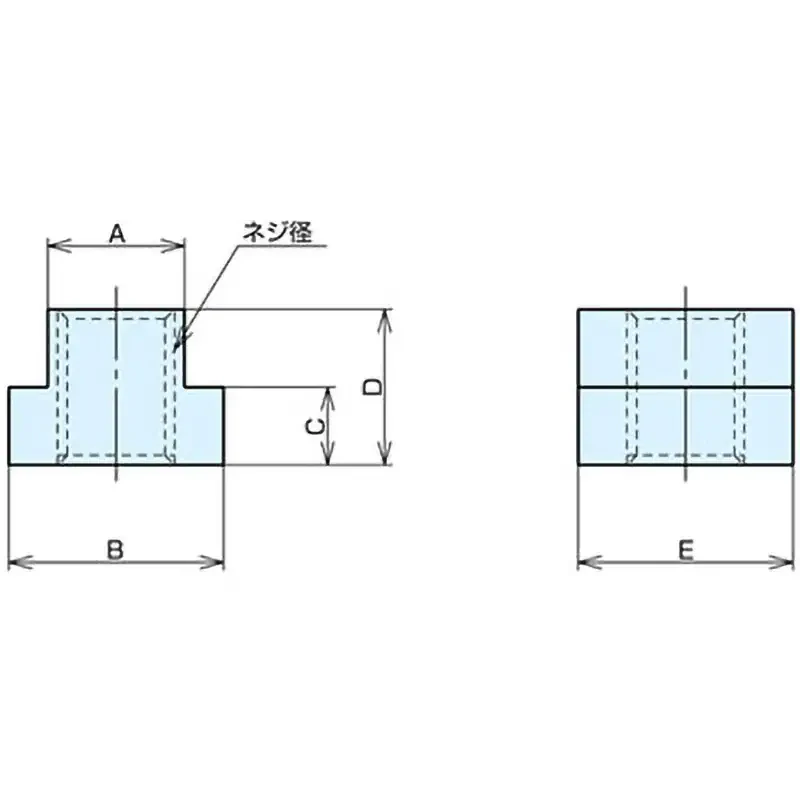

Dimension A (mm): 23.5 (plus or minus 0.3)
Dimension B (mm): 38.2
Dimension C (mm): 14.2
Dimension D (mm): 25.4
Dimension E (mm): 38
Compatible T-slot width (mm): M24
Thread diameter: (coarse) M12*1.75
Material: S45C
Weight (g): 232
Surface treatment: Black Oxide
Heat-Treated Quenching HRC30 plus or minus 5
RoHS directive (10 substances compliance): Compliant
The screw hole is through.
