Description
Description: Quantity: 1 piece
Dimensions L(mm)(MAX): 10.9
Takigen Code: 21350
Product Number: CP-522-3-5 Black(set)
Compatible Panel Thickness(mm): t1:2.5, t2(MAX): 2, t3(MAX)4, (MIN)5.3
Head Shape: Mini
Dimensions L(mm)(MAX): 10.9
Takigen Code: 21350
Use: Panel fastening for measuring instruments
Material: Plunger/Polyamide(PA), Grommet/Polycarbonate(PC)
Color: Black
Weight(g): Nylatch 1 set/average 1.32, Nylatch Plunger weight/average 0.82

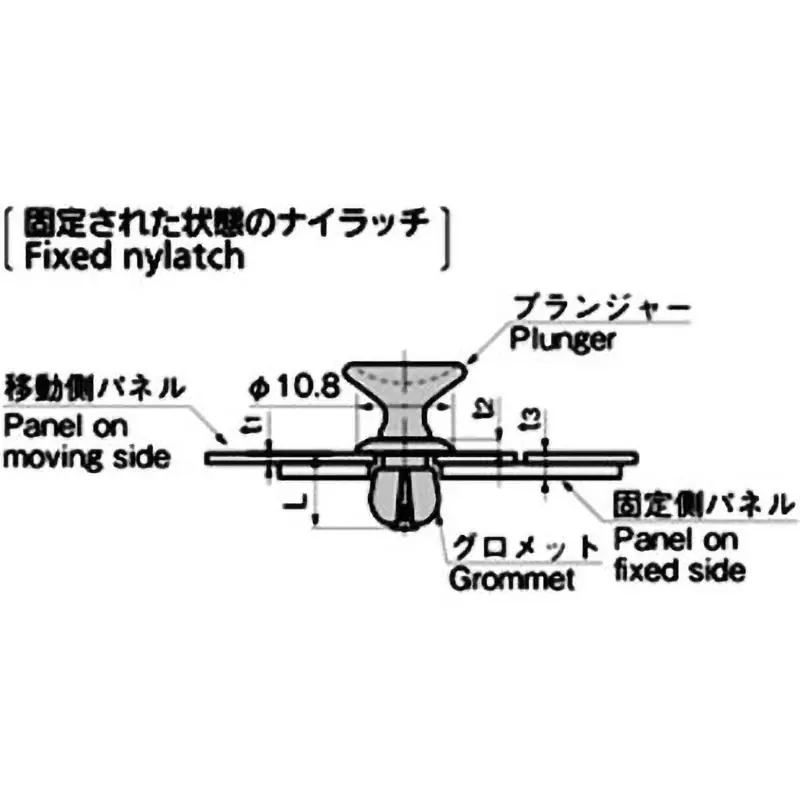

Fix by aligning the fixed side panel and the movable side panel, then pressing the plunger head.
