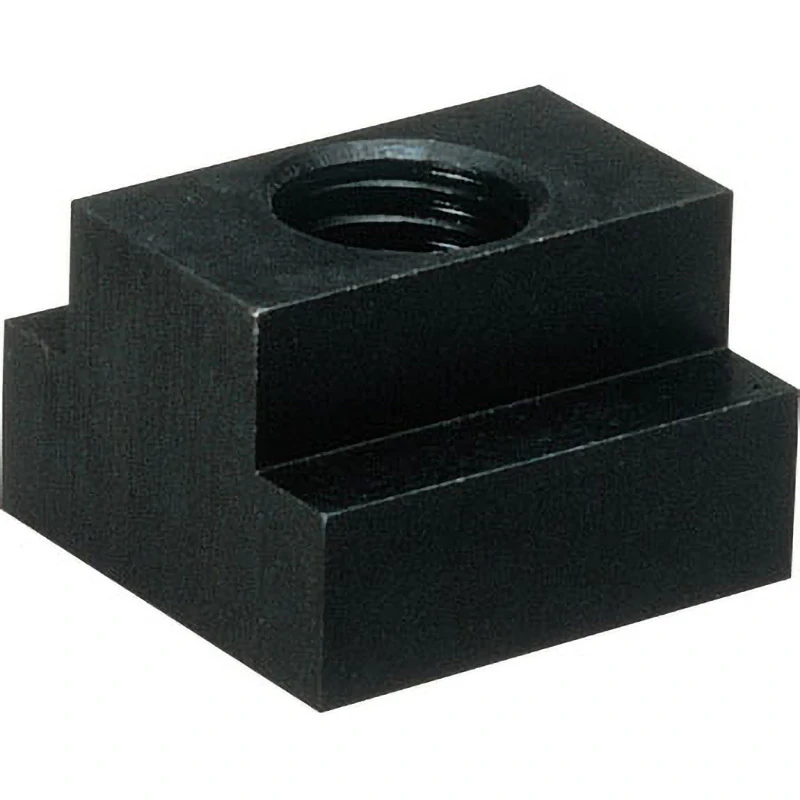

Description

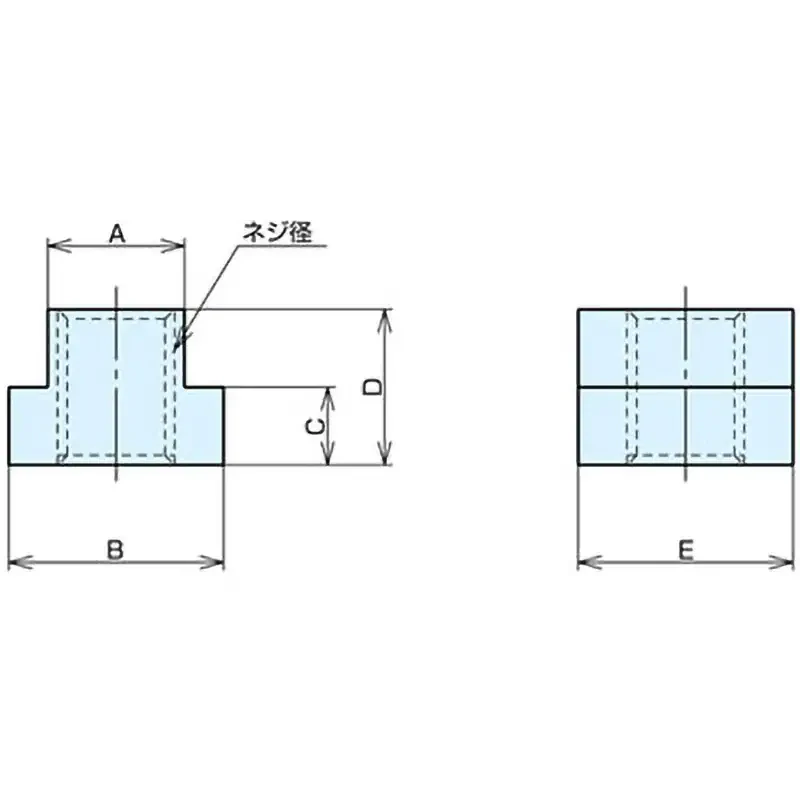

Dimensions A (mm): 21.5 (plus or minus 0.3)
Dimensions B (mm): 36
Dimensions C (mm): 14.2
Dimensions D (mm): 25.4
Dimensions E (mm): 38
Suitable T-slot width (mm): M22
Screw diameter: (standard) M12*1.75
Material: S45C
Weight (g): 210
Surface treatment: Black Oxide
Heat-Treated Quenching HRC30 plus or minus 5
RoHS Directive (10 substances compliance): Compliant
The screw hole is through.
