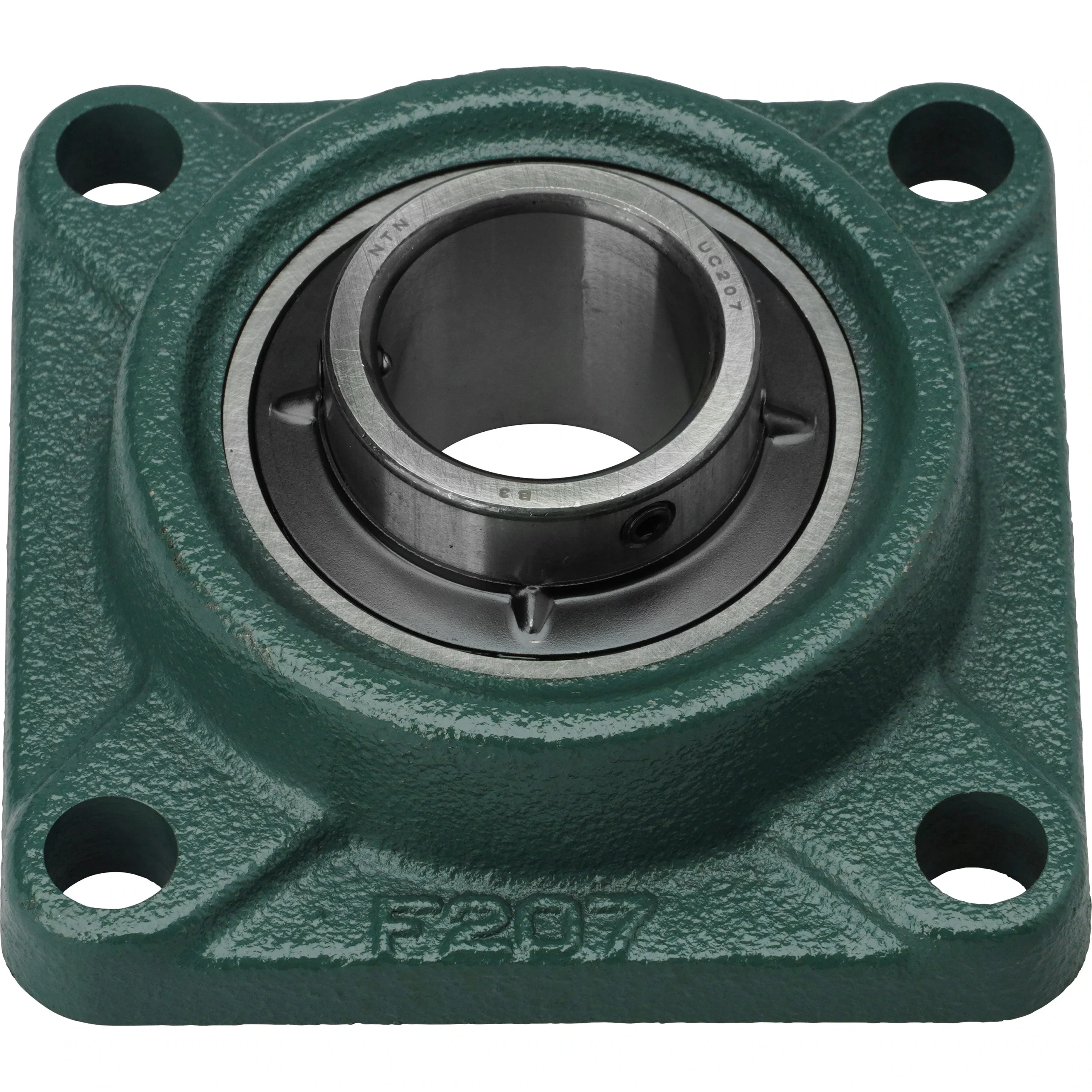

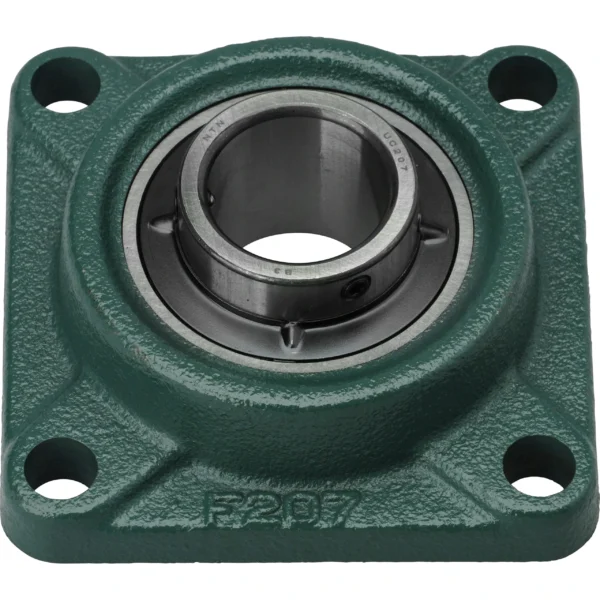

NSK (Nippon Seiko Kabushiki Kaisha) Square Flange Type Unit, Lubrication type >UCF207D1

¥3,085

SKU: r22182214df40 Category:

Description

Capacity: 1 piece
Axis diameter (mm): 35

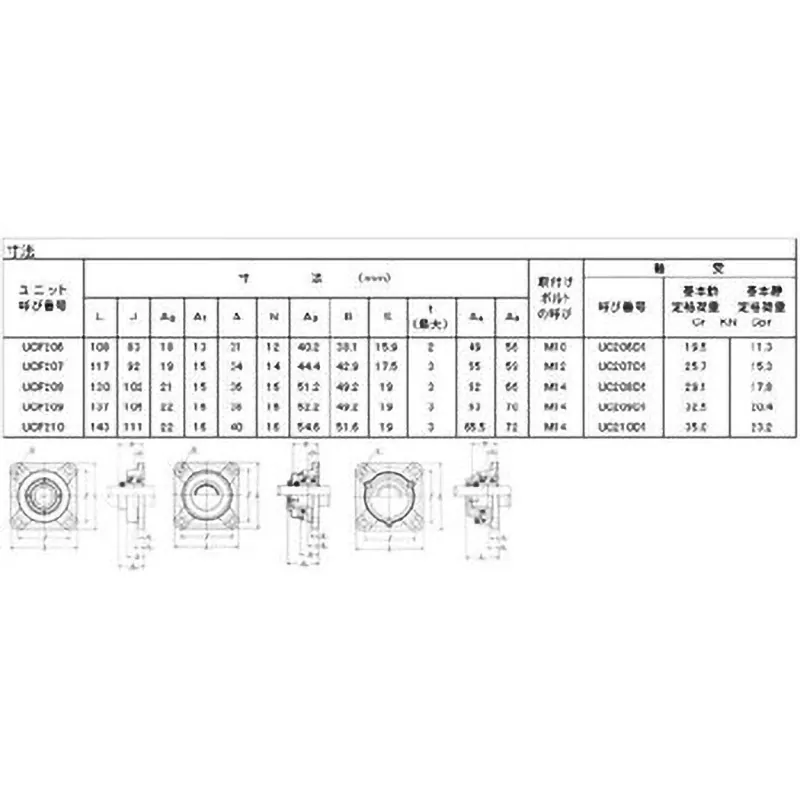

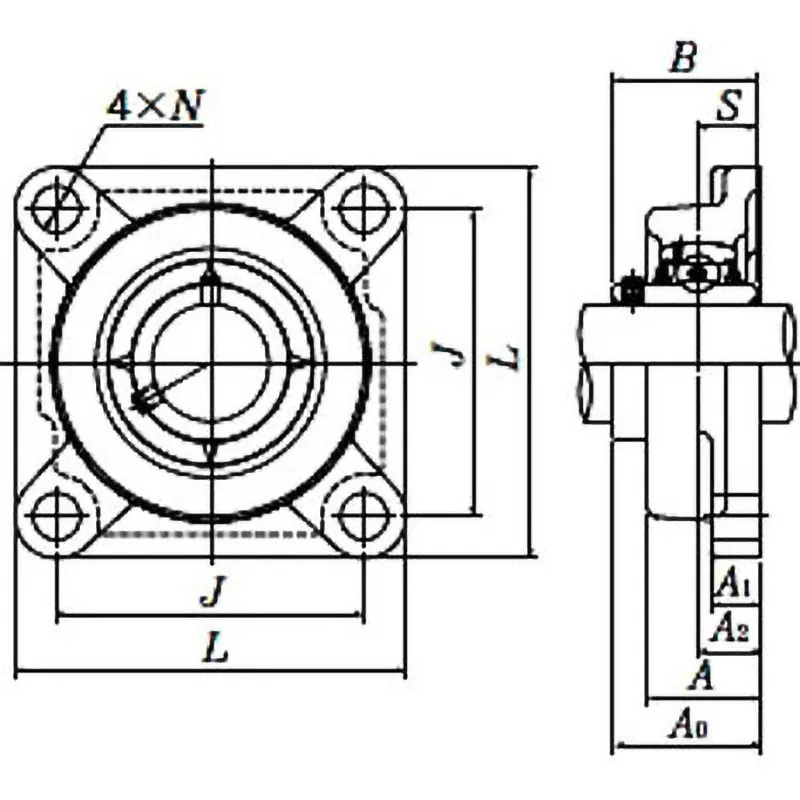

Dimension A (mm): 34
Dimension A0 (mm): 44.4
Dimension A1 (mm): 15
Dimension A2 (mm): 19
Dimension B (mm): 42.9
Dimension J (mm): 92
Dimension L (mm): 117
Dimension N (mm): 14
Dimension S (mm): 17.5
Axis diameter (mm): 35
Shape: Square flange unit
Trusco
Grease nipple: With grease nipple
Load type: For light loads
Cover: No cover
Axis hole type: Cylindrical hole
Weight (kg): 1.4
Basic static load rating (kN): 15.3
Basic dynamic load rating (kN): 25.7
Mounting bolt size: M12

The bearing box is square-shaped and is designed to be mounted on the side wall of machines with four bolts. The structure around the bearing is also simple, making installation easy, which is why it is used most extensively among flange types.
