Description
Quantity: 1 piece
Dimensions L(mm)(MAX): 10.9
Takigen Code: 21349
Part Number: CP-522-3-3 Black(set)
Compatible Panel Thickness (mm): t1:2.5, t2(MAX):2, t3(MAX)4, (MIN)5.3
Head Shape: Damper
Dimensions L(mm)(MAX): 10.9
Takigen Code: 21349
Application: Panel fixing for measuring instruments
Material: Plunger/Polyamide (PA), Grommet/Polycarbonate (PC)
Color: Black
Weight (g): Nylatch 1 set/average 1.32, Nylatch plunger weight/average 0.82

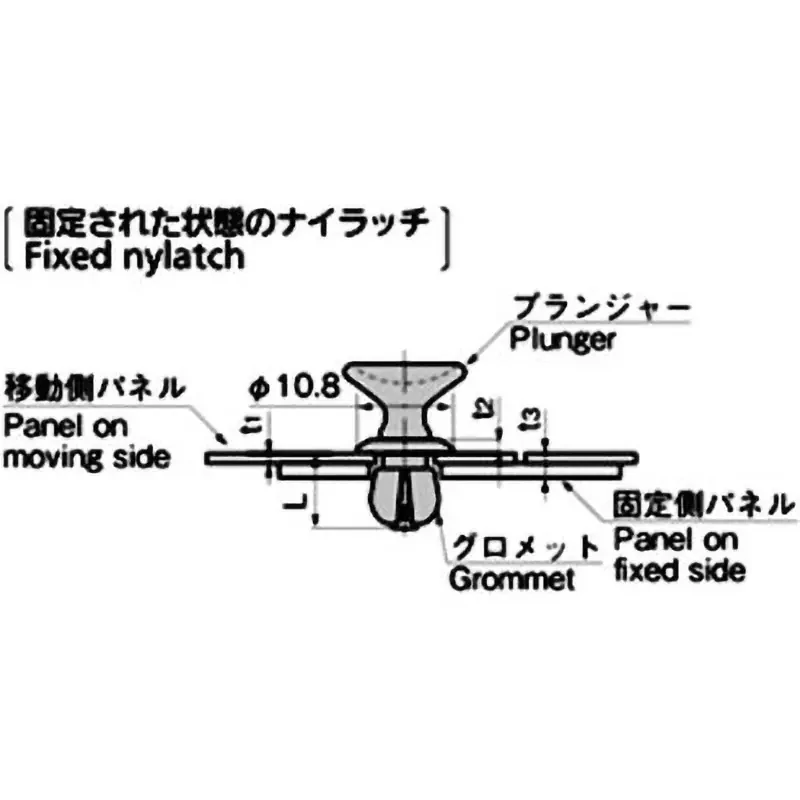

Align the fixed panel and the movable panel, and press the plunger head to secure.
