NSK (Nippon Seiko Kabushiki Kaisha) Square Flange Type Unit, Lubrication type >UCF206D1

¥2,621

SKU: r221811386471 Category:

Description

Contents: 1 piece

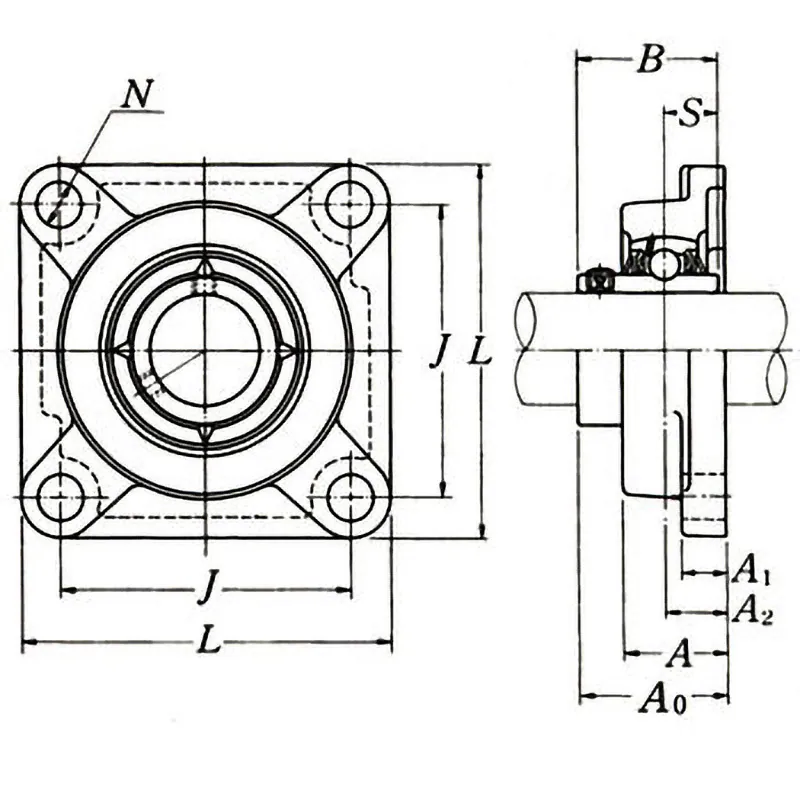

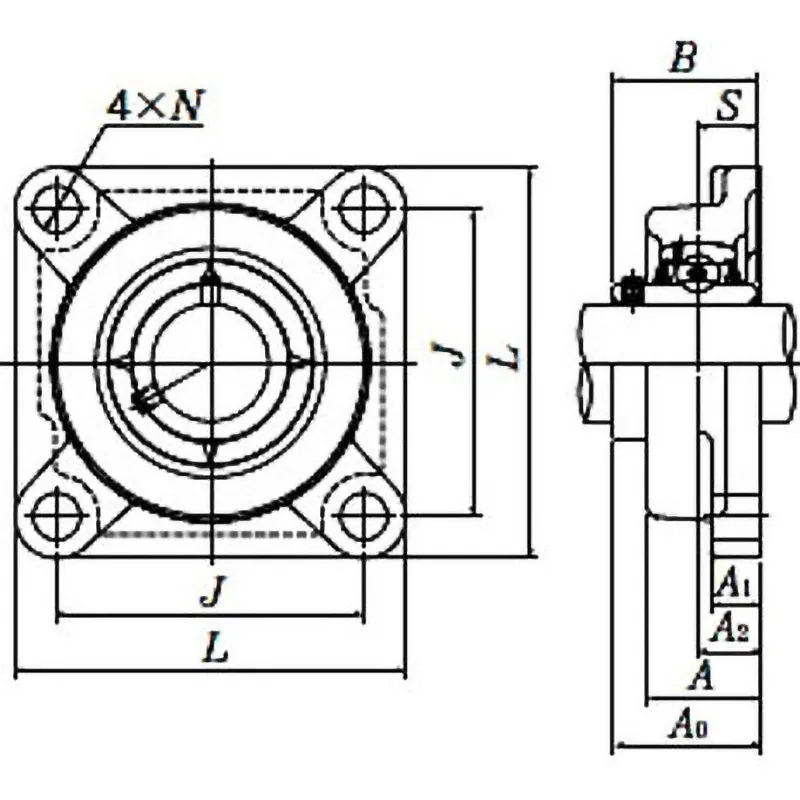

Axle diameter (mm): 30

Dimension A (mm): 31
Dimension A0 (mm): 40.2
Dimension A1 (mm): 13
Dimension A2 (mm): 18
Dimension B (mm): 38.1
Dimension J (mm): 83
Dimension L (mm): 108
Dimension N (mm): 12
Dimension S (mm): 15.9
Axle diameter (mm): 30
Shape: Square flange type unit
Trusco
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axle hole type: Cylindrical hole
Weight (kg): 1
Basic static load rating (kN): 11.3
Basic dynamic load rating (kN): 19.5
Mounting bolt size: M10

The shape of the bearing box is square and is designed to be mounted on the side wall of a machine with four bolts. The structure around the bearing is also simple, making installation easy, which is why it is the most widely used among flange types.
