Description
Inner diameter d (mm): 180;
Outer diameter D (mm): 280;
Width B (mm): 46;
Mass (g): 8800;
Material: (Main body) High carbon chromium bearing steel;
Basic dynamic load rating Cr (N): 189000;
Basic static load rating Cor (N): 199000;
JIS grade: 0;
Shield shape: Open type;
Load direction: Radial;
Outer ring type: Flat;

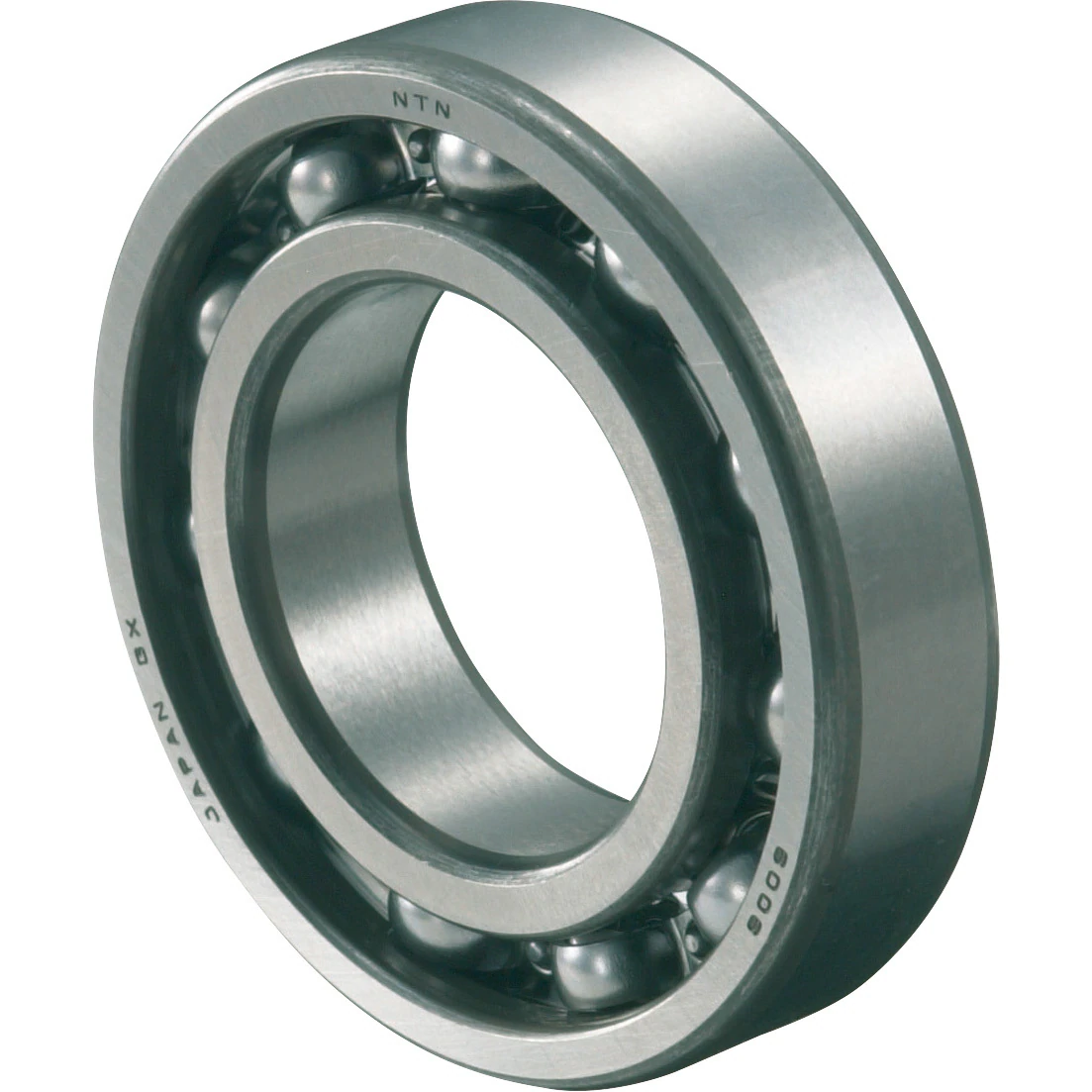

Raceway ring shape: Deep groove ball bearing;
Number of raceway ring rows: Single row;
Rolling element Material: High carbon chromium bearing steel;
Allowable rotational speed (/min) Grease lubrication: 2300;
Allowable rotational speed (/min) Oil lubrication: 2700;
Bearing series: 6000
