Description

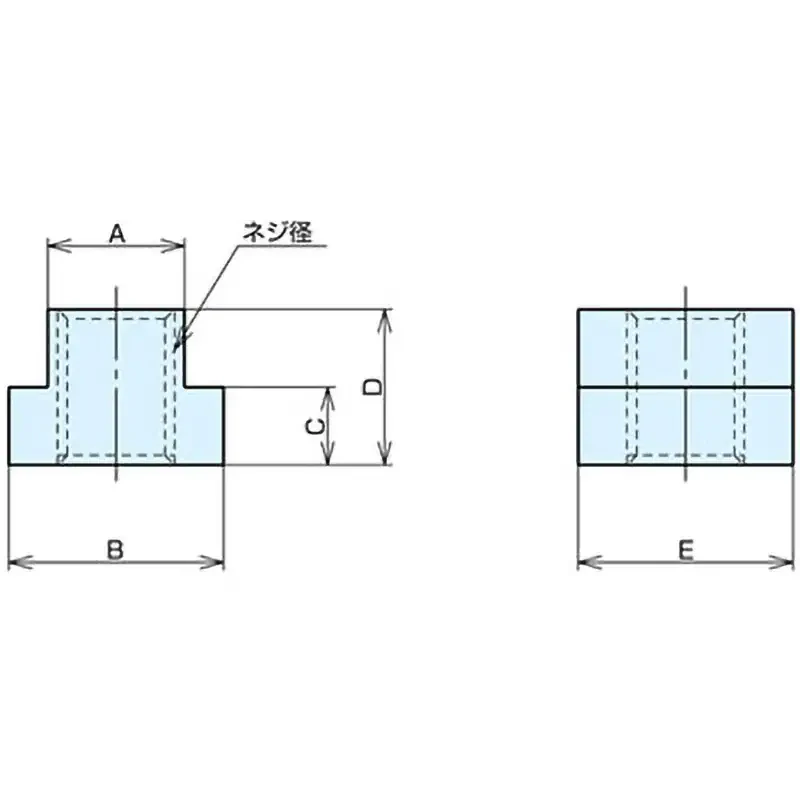

Dimension A (mm): 19.5 (plus or minus 0.3)
Dimension B (mm): 31.8
Dimension C (mm): 11.9
Dimension D (mm): 19.1
Dimension E (mm): 32
Compatible T-slot width (mm): M20
Screw diameter: (Standard) M16*2
Material: S45C
Weight (g): 108
Surface treatment: Black Oxide
Heat-Treated Quenching HRC30 plus or minus 5
RoHS Directive (10 substances compliant): Compliant
The screw hole is through.
