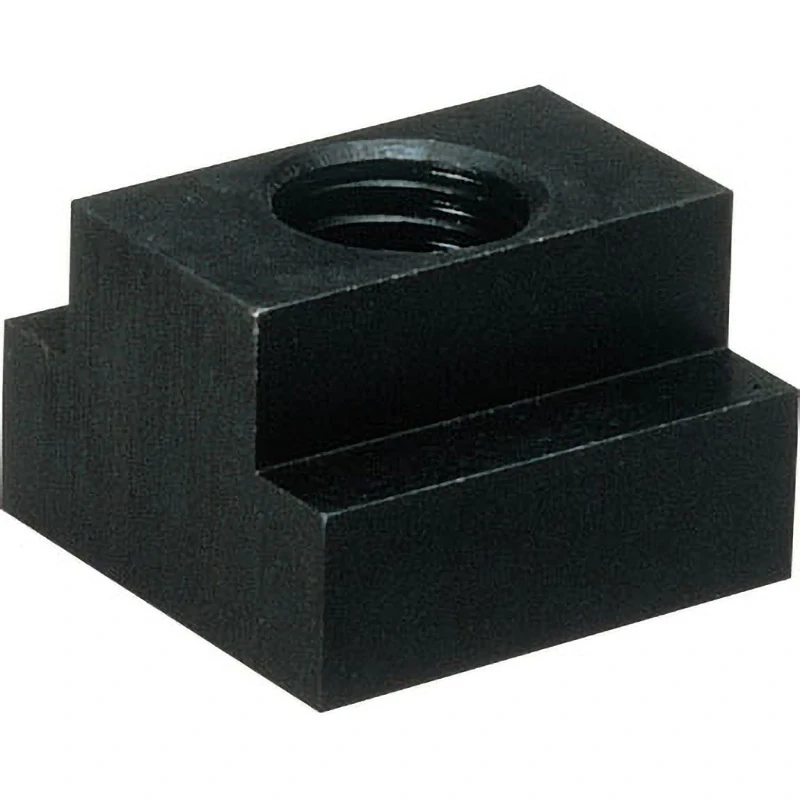

Description

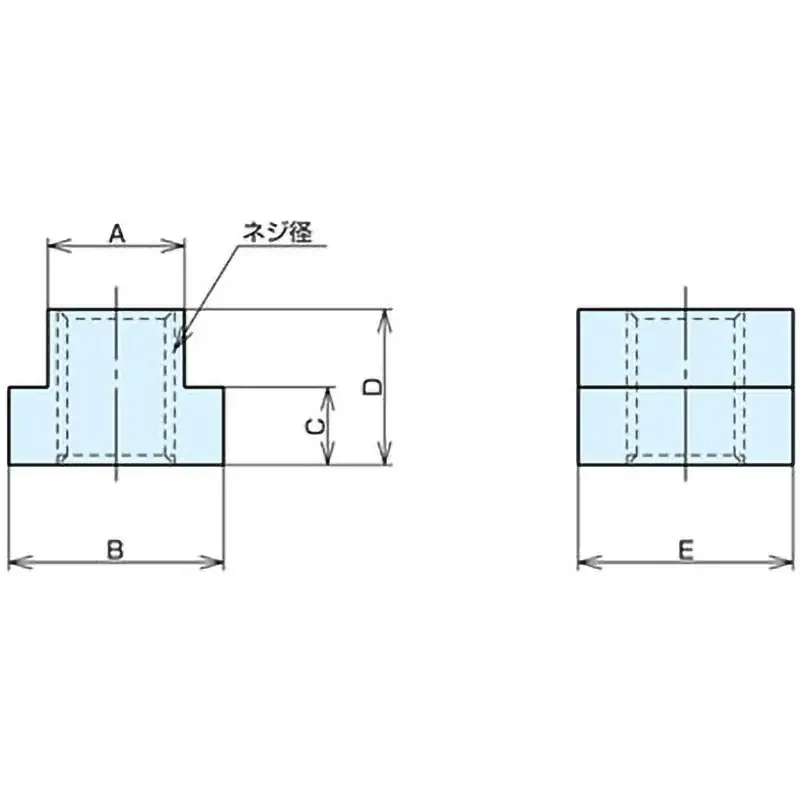

Dimensions A (mm): 19.5 (plus or minus 0.3)
Dimensions B (mm): 31.8
Dimensions C (mm): 11.9
Dimensions D (mm): 19.1
Dimensions E (mm): 32
Suitable T-slot width (mm): M20
Thread diameter: (standard) M12*1.75
Material: S45C
Weight (g): 121
Surface treatment: Black Oxide
Heat-Treated Quenching HRC30 plus or minus 5
RoHS directive (10 substances compliance): Compliant
The screw hole is through-holes.
