Description
Quantity: 1 piece
Dimensions L(mm)(MAX): 9.8
Takigen Code: 21346

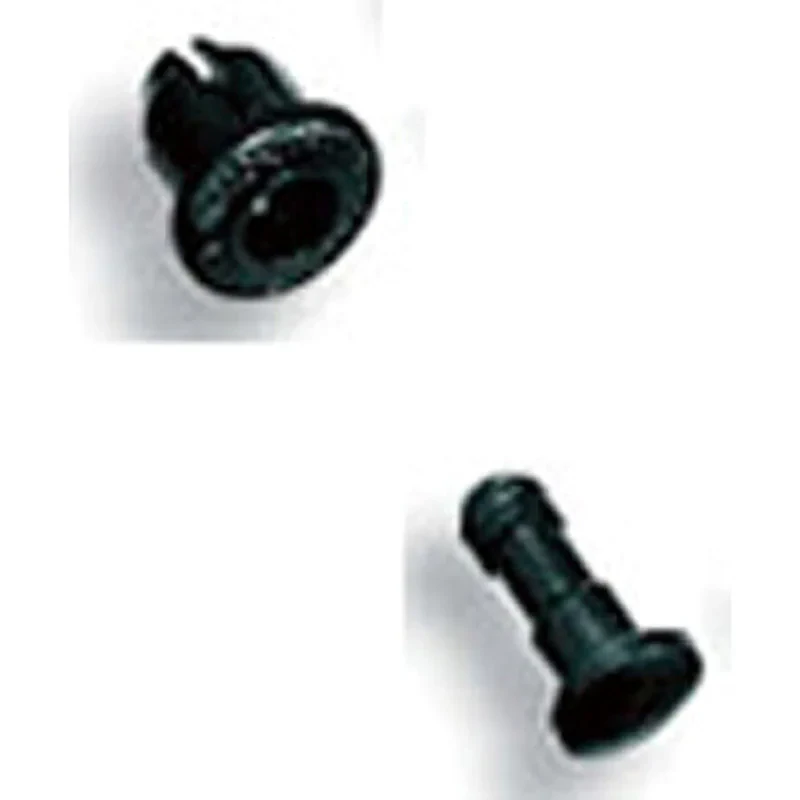

Part Number: CP-522-2-3 Black(set)

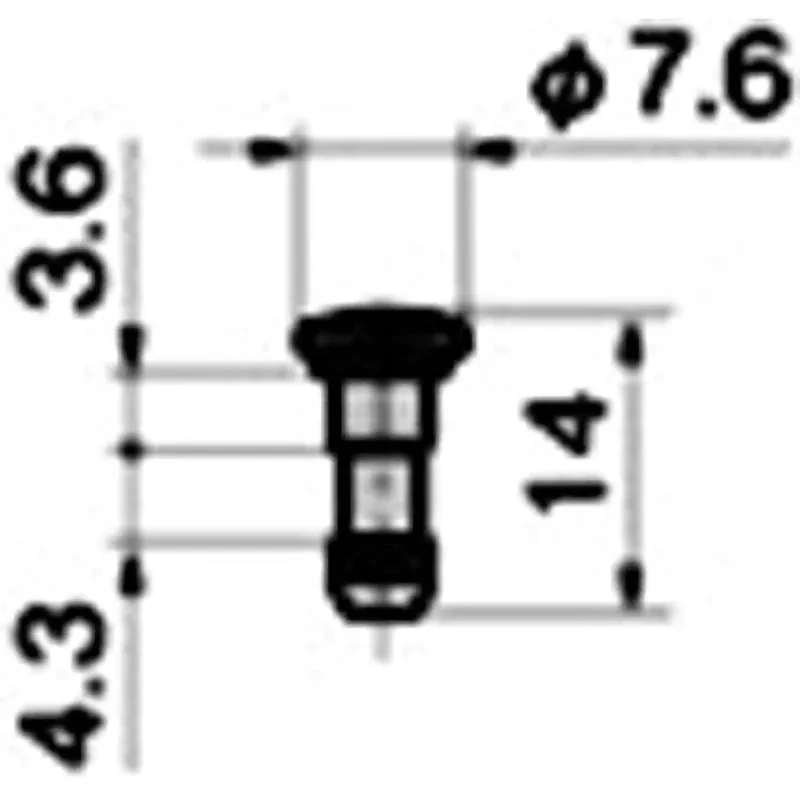

Compatible Panel Thickness (mm): t1:1.5, t2(MAX): 2, t3(MAX): 3.0, (MIN)4.3
Head Shape: Damper
Dimensions L(mm)(MAX): 9.8
Takigen Code: 21346
Application: Panel fixation for measuring instruments
Material: Plunger/Polyamide (PA), Grommet/Polycarbonate (PC)
Color: Black
Weight (g): Nylatch 1 set / Average 1.32, Nylatch Plunger Weight / Average 0.82
By aligning the fixed side panel and the movable side panel, and pressing the plunger head, it will be fixed.
