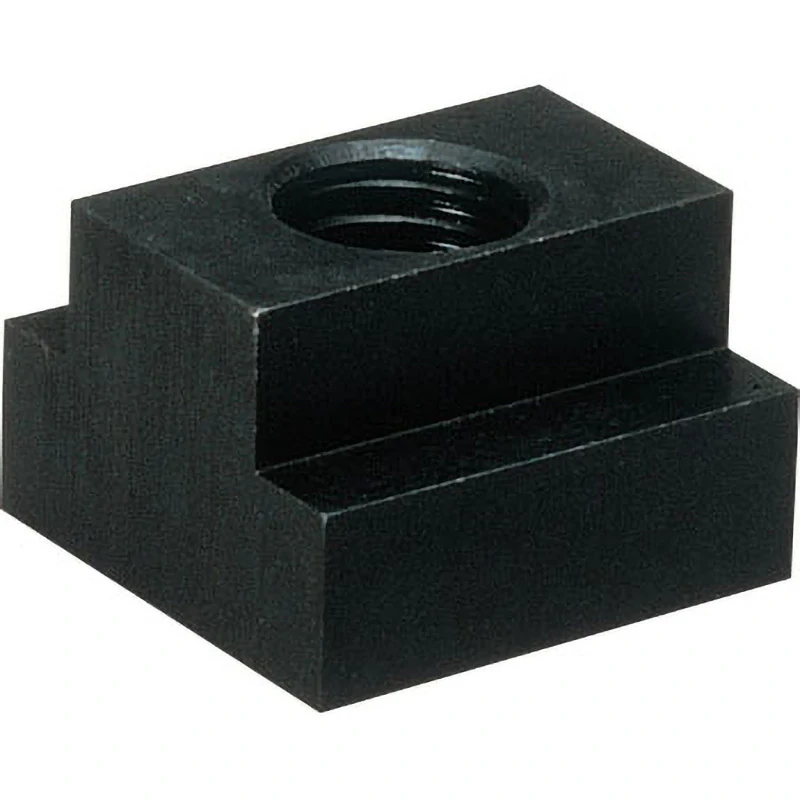

Description

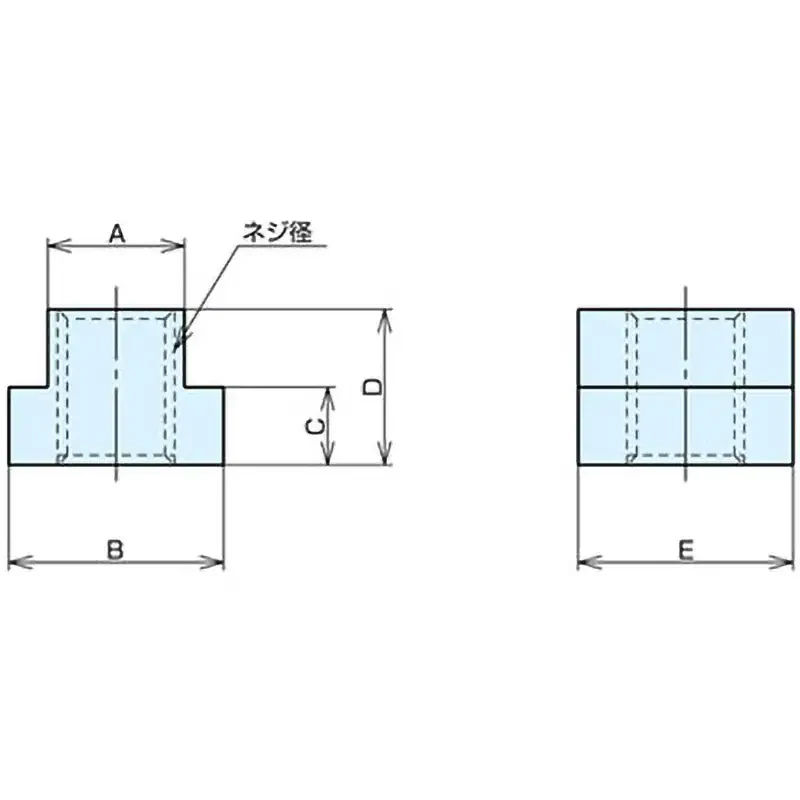

Dimension A (mm): 17 (plus or minus 0.3)
Dimension B (mm): 28.6
Dimension C (mm): 11.1
Dimension D (mm): 19.1
Dimension E (mm): 32
Suitable T-slot width (mm): M18
Screw diameter: (Fine thread) M16*2
Material: S45C
Weight (g): 89
Surface treatment: Black Oxide
Heat-Treated Quenching HRC30 plus or minus 5
Complies with RoHS directive (10 substances): Compliant
The screw hole is through.
