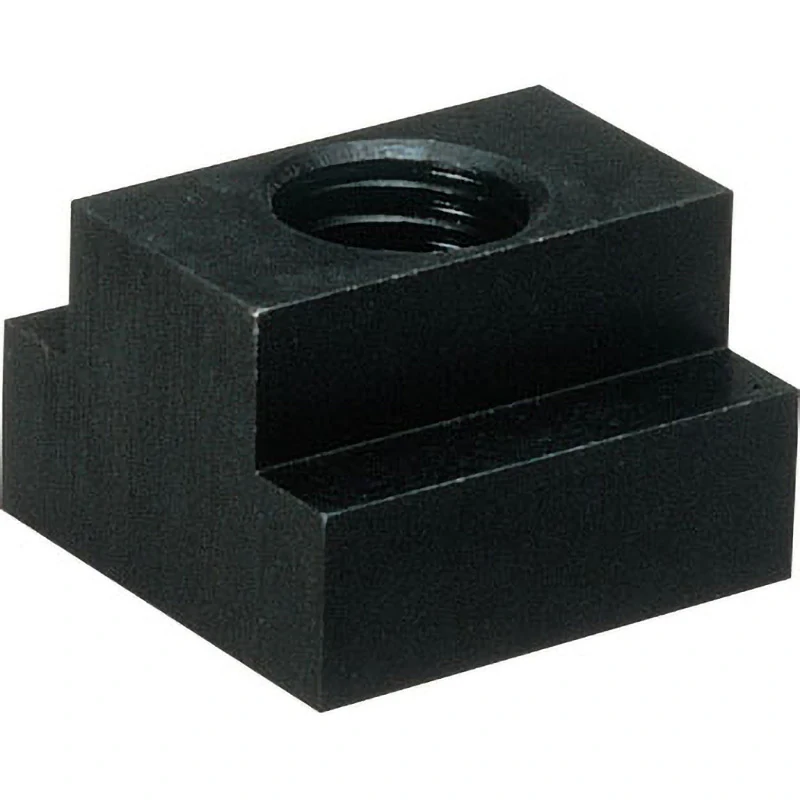

Description

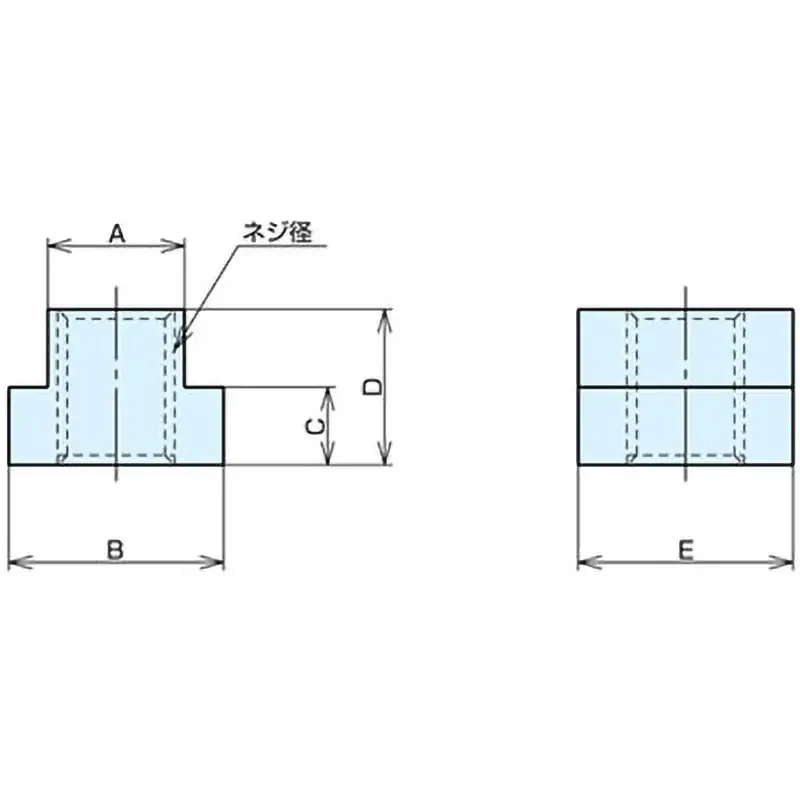

Dimensions A(mm): 17( plus or minus 0.3)
Dimensions B(mm): 28.6
Dimensions C(mm): 11.1
Dimensions D(mm): 19.1
Dimensions E(mm): 32
Suitable T-slot width(mm): M18
Thread diameter: (Coarse) M14*2
Material: S45C
Weight(g): 96
Surface treatment: Black Oxide
Heat-Treated Quenching HRC30 plus or minus 5
RoHS Directive (10 substances compliance): Compliant
The screw hole is through.
