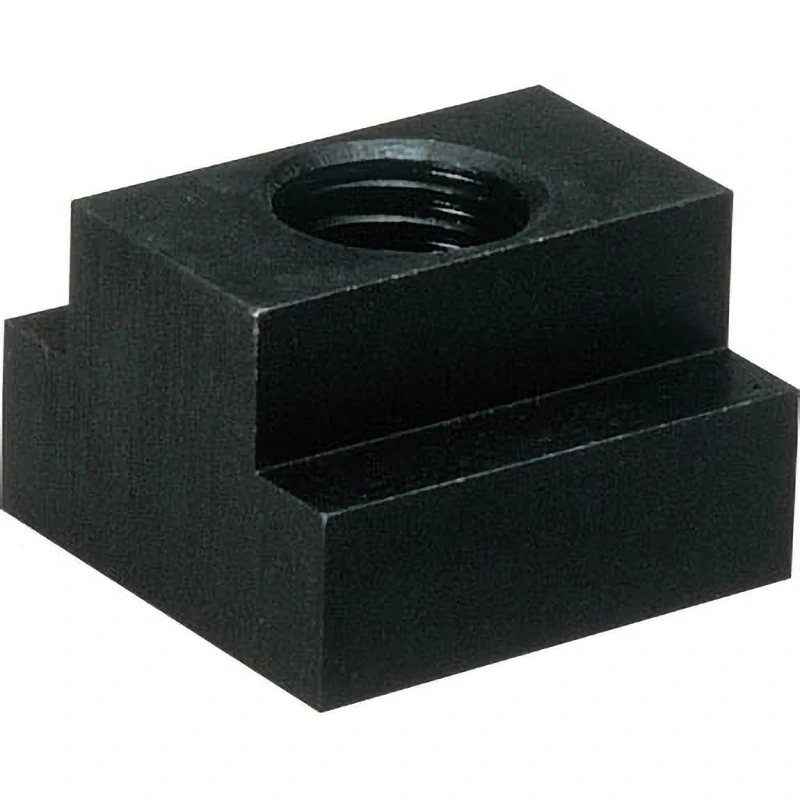

Description

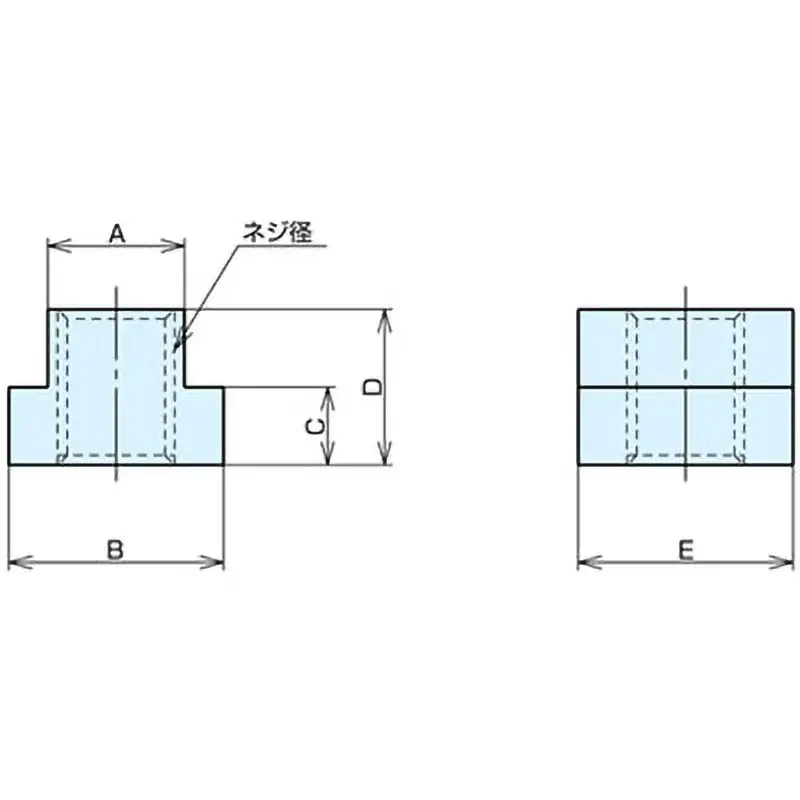

Dimensions A (mm): 15.3 (plus or minus 0.3)
Dimensions B (mm): 25.4
Dimensions C (mm): 8.5
Dimensions D (mm): 15.8
Dimensions E (mm): 29
Suitable T-slot width (mm): M16
Screw diameter: (medium pitch) M14*2
Material: S45C
Weight (g): 59
Surface treatment: Black Oxide
Heat-Treated Quenching HRC30 plus or minus 5
RoHS directive (10 substances compliant): Compliant
The screw hole is through.
