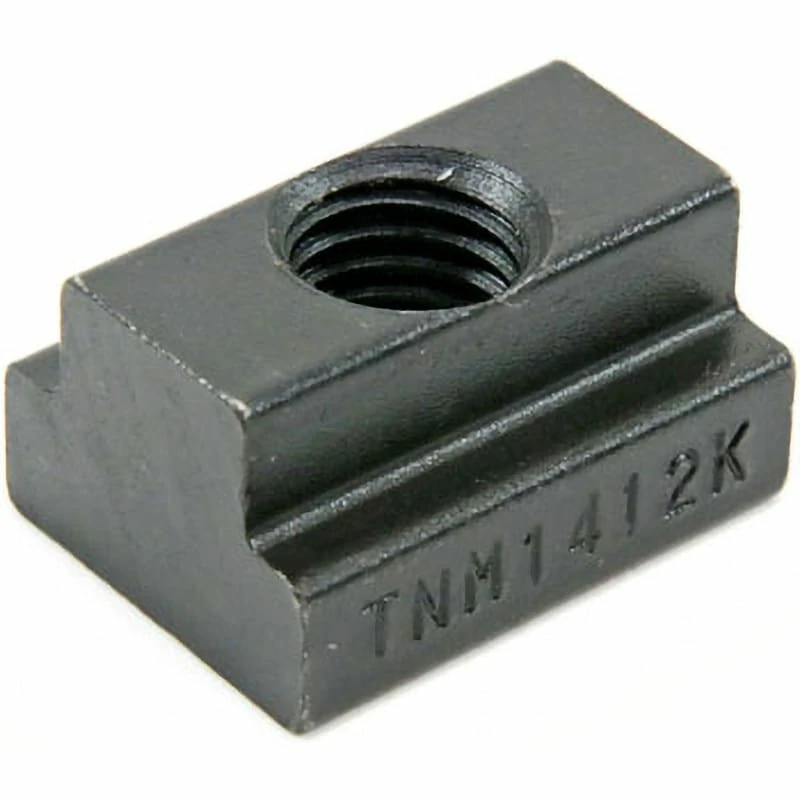

Description

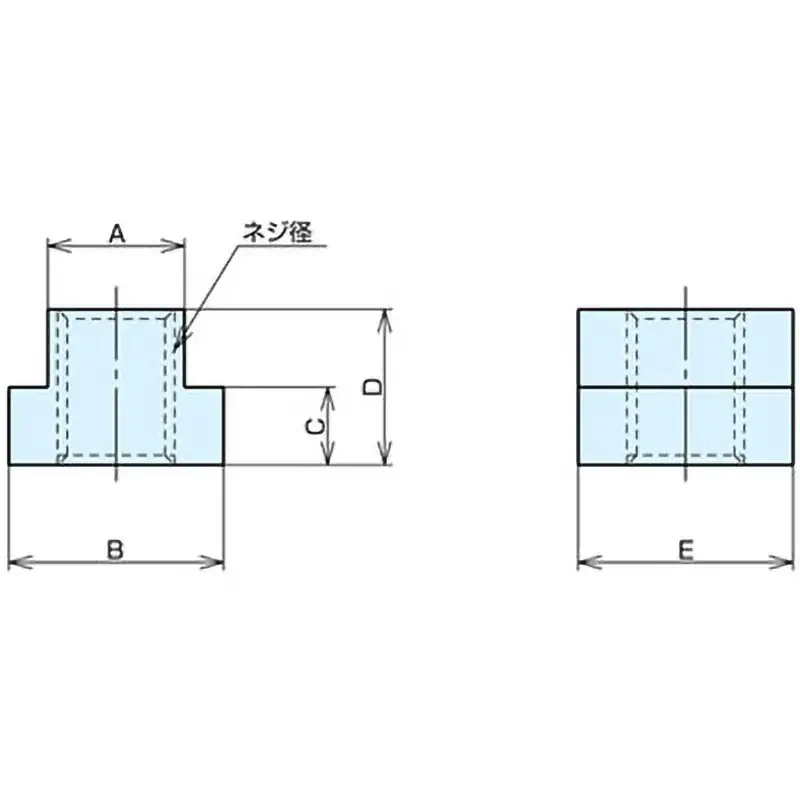

Dimension A (mm): 13.5 (plus or minus 0.3)
Dimension B (mm): 22.2
Dimension C (mm): 8.5
Dimension D (mm): 15.8
Dimension E (mm): 29
Suitable T-slot width (mm): M14
Screw diameter: (coarse pitch) M12*1.75
Material: S45C
Weight (g): 51
Surface treatment: Black Oxide
Heat-Treated Quenching HRC30 plus or minus 5
RoHS directive (10 substances compliant): Compliant
The screw hole is through.
