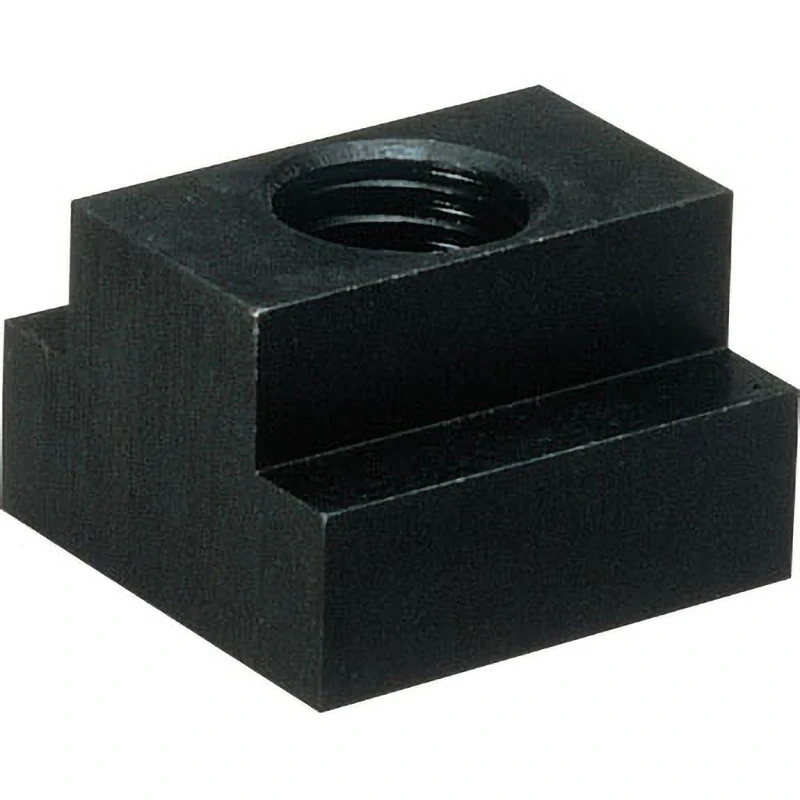

Description

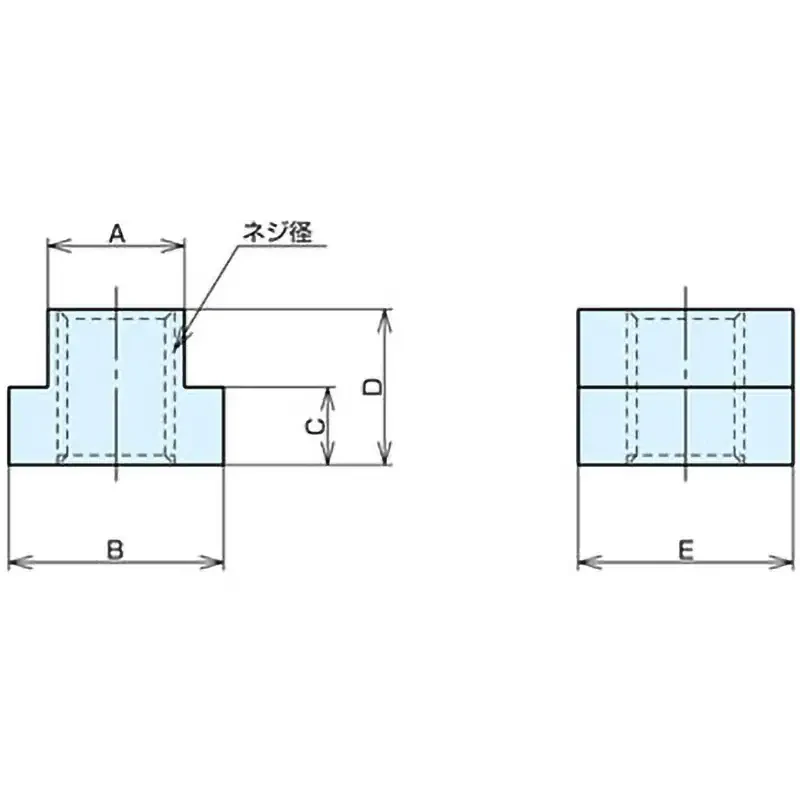

Dimensions A (mm): 11.5 (plus or minus 0.3)
Dimensions B (mm): 17.5
Dimensions C (mm): 6.4
Dimensions D (mm): 12.7
Dimensions E (mm): 22
Suitable T-slot width (mm): M12
Screw diameter: (Coarse) M10*1.5
Material: S45C
Weight (g): 27
Surface treatment: Black Oxide
Heat-Treated Quenching HRC30 plus or minus 5
RoHS Directive (10 substances compliance): Compliant
The screw hole is through.
