Description
Quantity: 1 piece

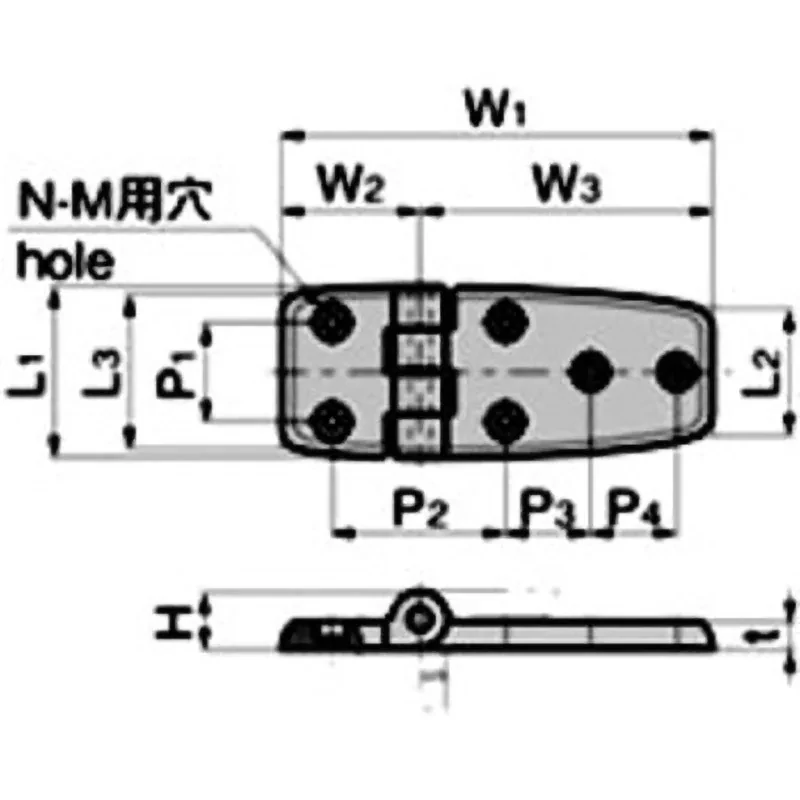

Dimension L2 (mm): 22
Dimension L1 (mm): 32
Part Number: BP-19-3-3-B-Ivory
Dimension L1 (mm): 32
Dimension L2 (mm): 22
Dimension L3 (mm): 28
Dimension W (mm): –
Dimension H (mm): 10.5
Dimension t (mm): 5
Dimension W1 (mm): 70
Dimension W2 (mm): 22
Dimension W3 (mm): 48
Dimension P1 (mm): 16
Dimension P2 (mm): 30
Dimension P3 (mm): 25
Dimension P4 (mm): –
N5
Dimension M: M3
Usage: Hatch Cover for Boats
Compatibility: For Pot Binding Screws
Color: Ivory
Weight (g): 14
Material (Axis): Stainless Steel (SUS304)
Standard Color: Ivory
Material (Blade): Polyamide (PA)
Takigen Code: 12322
Since there are few protrusions on the surface, it is also safe for use on the floor.
