Description
Accessories: Cross-recessed Truss Tapping
Screw size: 4*12
Material: Steel
Height (mm): 36
Weight (g): 1120
Travel distance (mm): 500
Load capacity (N/pair): 196
Width W (mm): 12.5
As One product number: 64-6763-80
RoHS Directive (10 substances compliance): Compliant
Rail length L (mm): 500

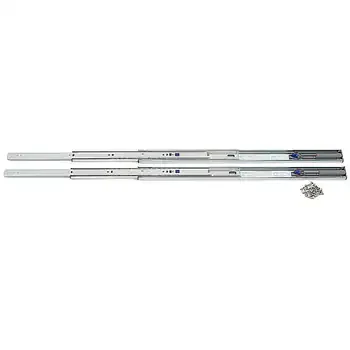

This is a 3-stage sliding rail.
The inner member can be removed with lever operation.
Thanks to the shock absorption effect at the outer member mounting section, smooth sliding can be achieved even with slight deformations of the cabinet.
