Description
Usage: For supporting rolls.
Material: Bearing: High carbon chromium steel, Bearing box: Gray cast iron
Axis diameter (mm): 20
Shape: Square flange type
Weight (kg): 0.61

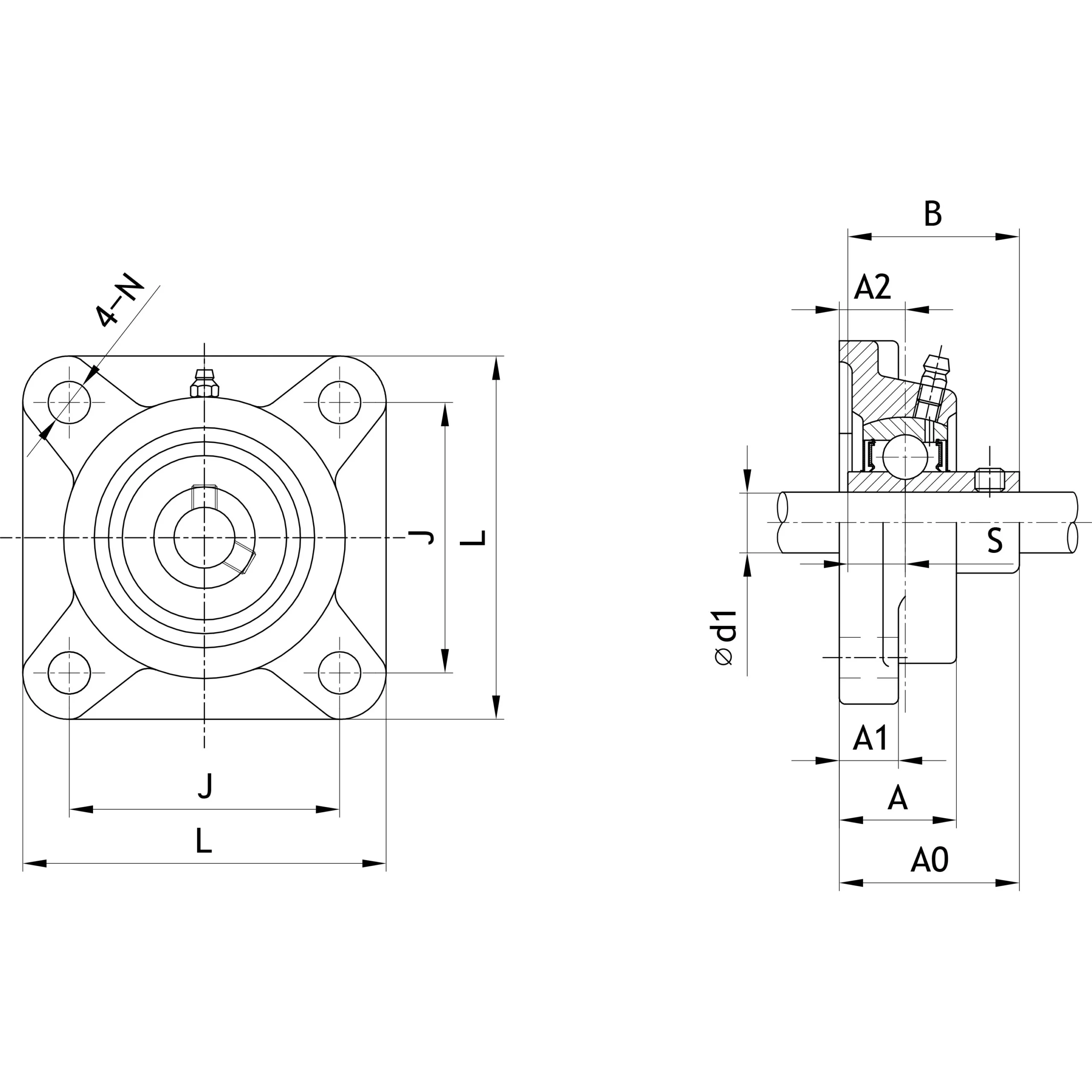

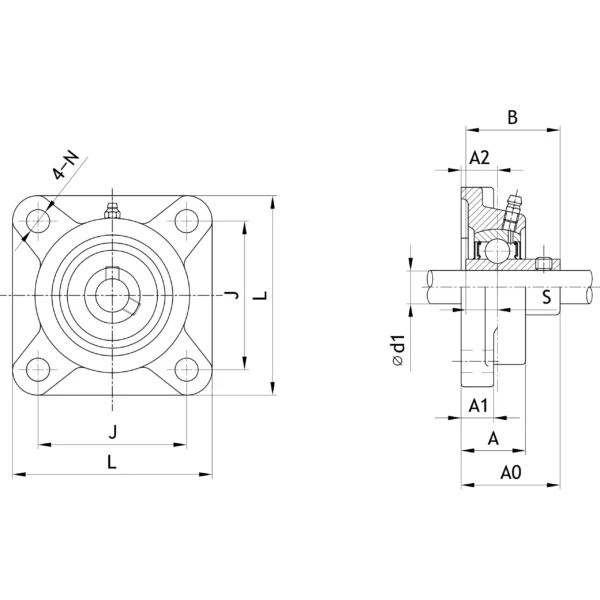

Dimension L (mm): 86
Basic static load rating (kN): 6.6
Basic dynamic load rating (kN): 12.8
Mounting bolt nominal: M10
Dimension A (mm): 25.5
Dimension S (mm): 12.7
Dimension B (mm): 31
Dimension N (mm): 12
Dimension J (mm): 64
Dimension A1 (mm): 11
Dimension A2 (mm): 15
Dimension A0 (mm): 33.3

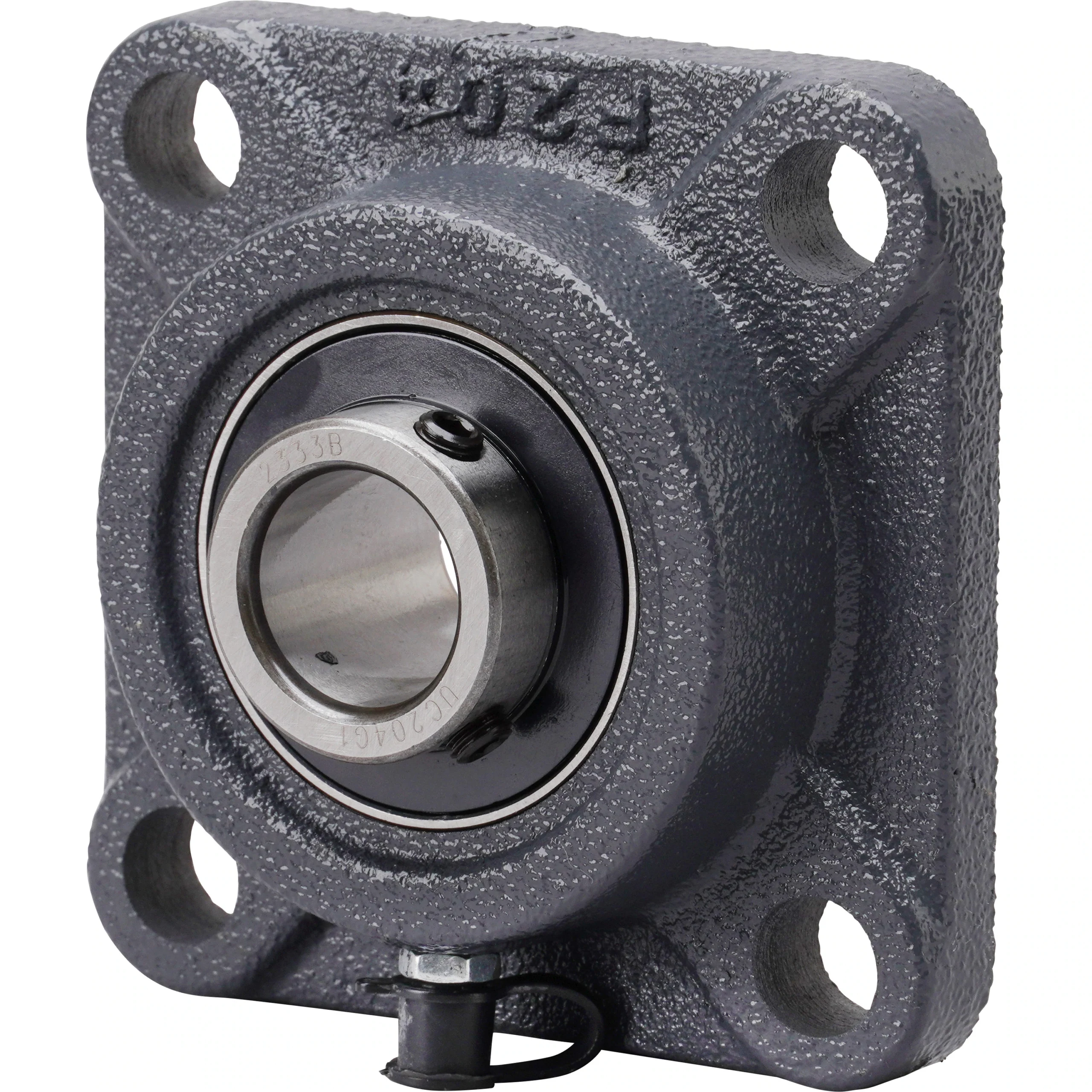

This is a bearing unit that can be mounted on the side of a machine.
