Description

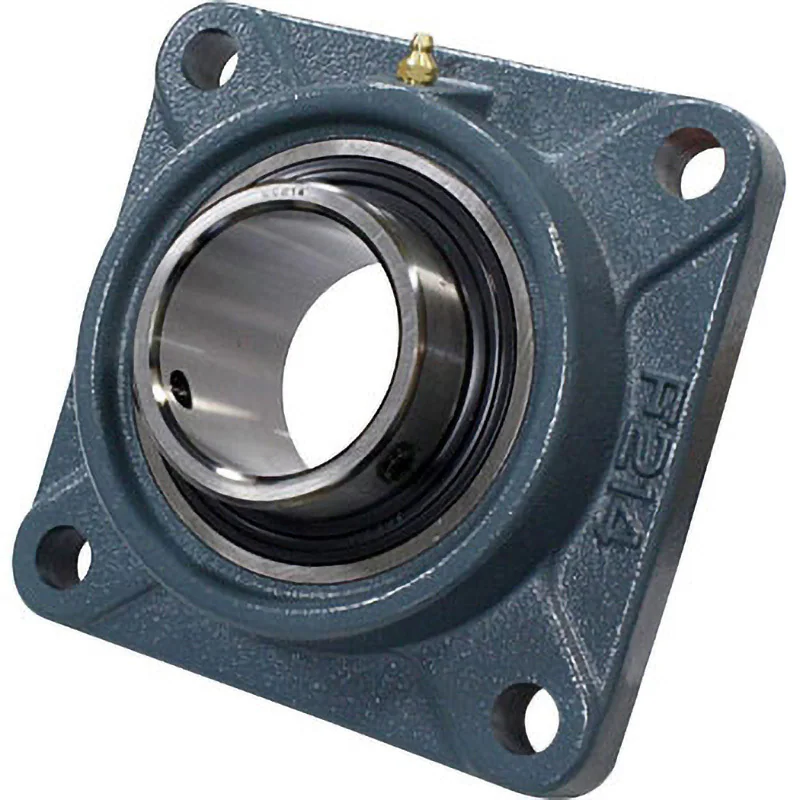

Square Flange Type Unit
Axis Diameter (mm): 65
Grease Nipple: Yes
Load Type: Yes
Cover: None
Axis Hole Type: Cylindrical Hole with Set Screw

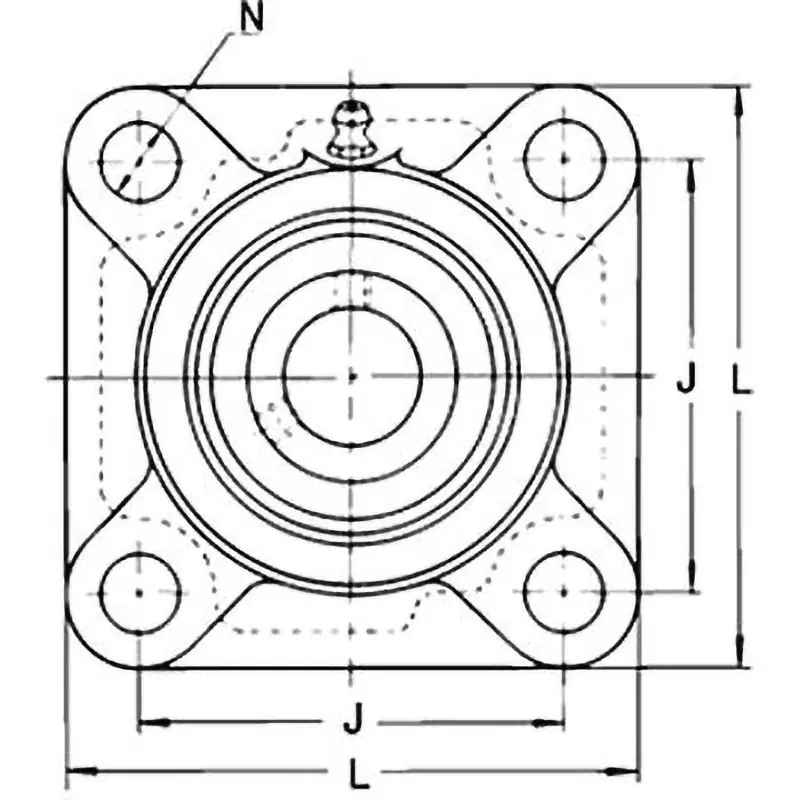

Dimension L (mm): 187
Basic Static Load Rating (kN): 40
Basic Dynamic Load Rating (kN): 57.5
Mounting Bolt Specification: M16

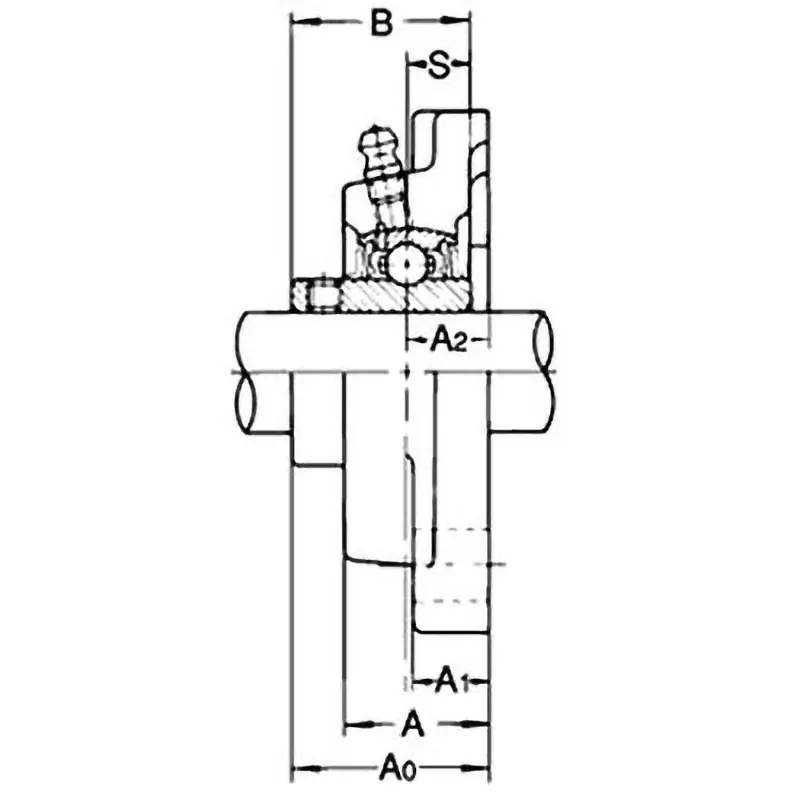

Dimension A (mm): 50
Dimension S (mm): 25.4
Dimension B (mm): 65.1
Dimension N (mm): 19
Dimension J (mm): 149
Dimension A1 (mm): 20
Dimension A2 (mm): 30
Dimension A0 (mm): 69.7
Dimension A4 (mm): 81
Dimension A5 (mm): 89
Dimension A6 (mm): 10
Dimension A7 (mm): 13
RoHS Directive (10 Substances Compliance): Compliant
The bearing housing is designed in a square shape and is intended for mounting on the side wall of the machine, simplifying the structure of the bearing mounting part and allowing for a wide range of applications.
