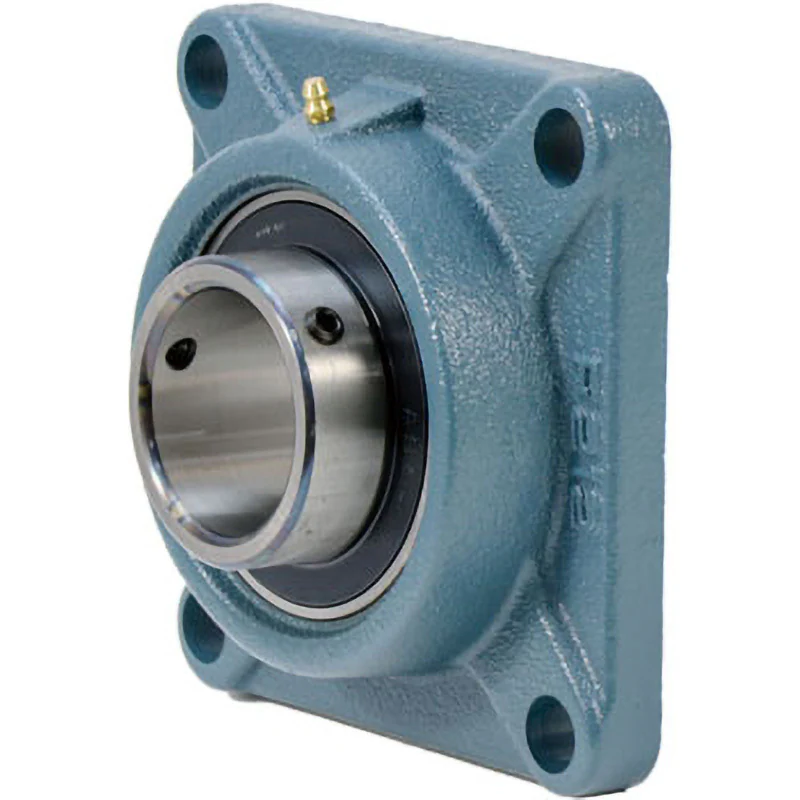

NSK (Nippon Seiko Kabushiki Kaisha) Square Flange Type Unit > UCF212

¥7,078

SKU: r221663546526 Category:

Description

Square Flange Type Unit
Shaft Diameter (mm): 60
Grease Nipple: Yes
Load Type: Yes
No Cover
Shaft Hole Type: Cylindrical Hole with Set Screw

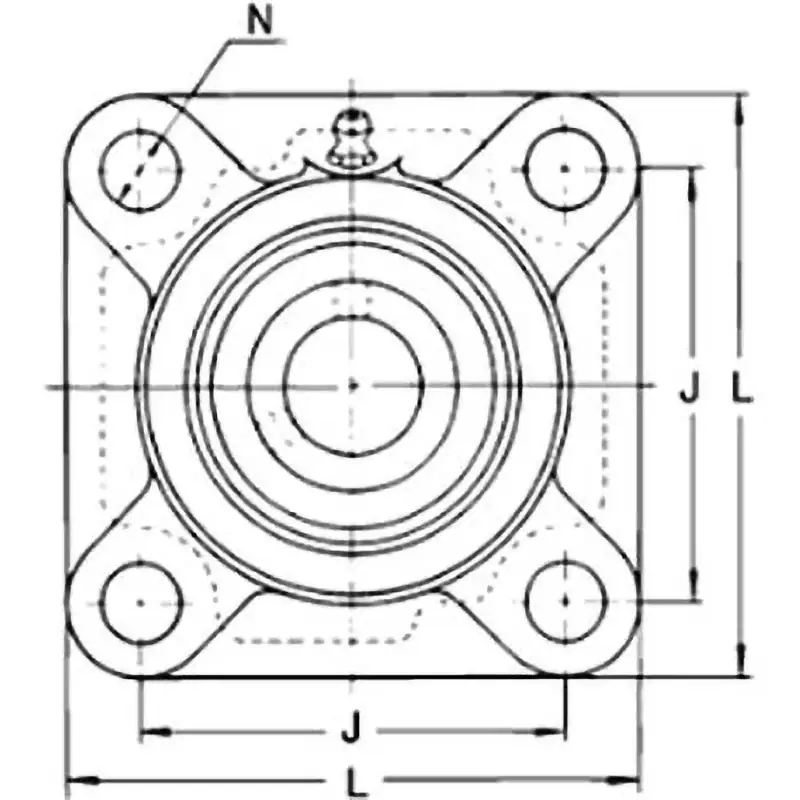

Dimension L (mm): 175
Basic Static Load Rating (kN): 36.1
Basic Dynamic Load Rating (kN): 52.5
Mounting Bolt Size: M16

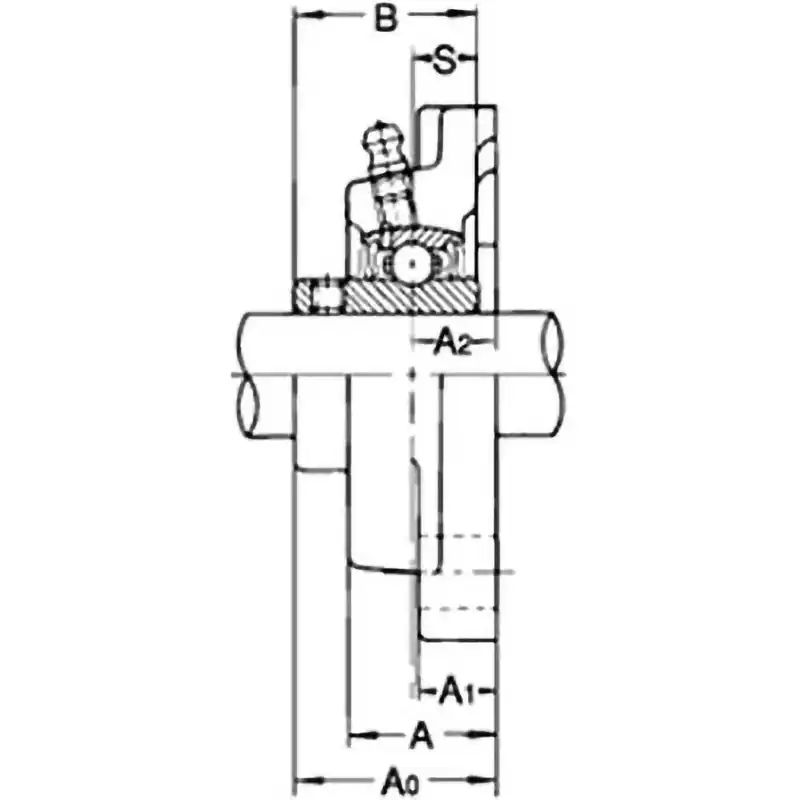

Dimension A (mm): 48
Dimension S (mm): 25.4
Dimension B (mm): 65.1
Dimension N (mm): 19
Dimension J (mm): 143
Dimension A1 (mm): 20
Dimension A2 (mm): 29
Dimension A0 (mm): 68.7
Dimension A4 (mm): 80
Dimension A5 (mm): 86
Dimension A6 (mm): 10
Dimension A7 (mm): 11
RoHS Directive (10 Substances Compliance): Compliant

The shape of the bearing box is square, designed to be mounted on the side wall of the machine, which simplifies the structure of the bearing mounting part and offers a wide range of applications.
