Description

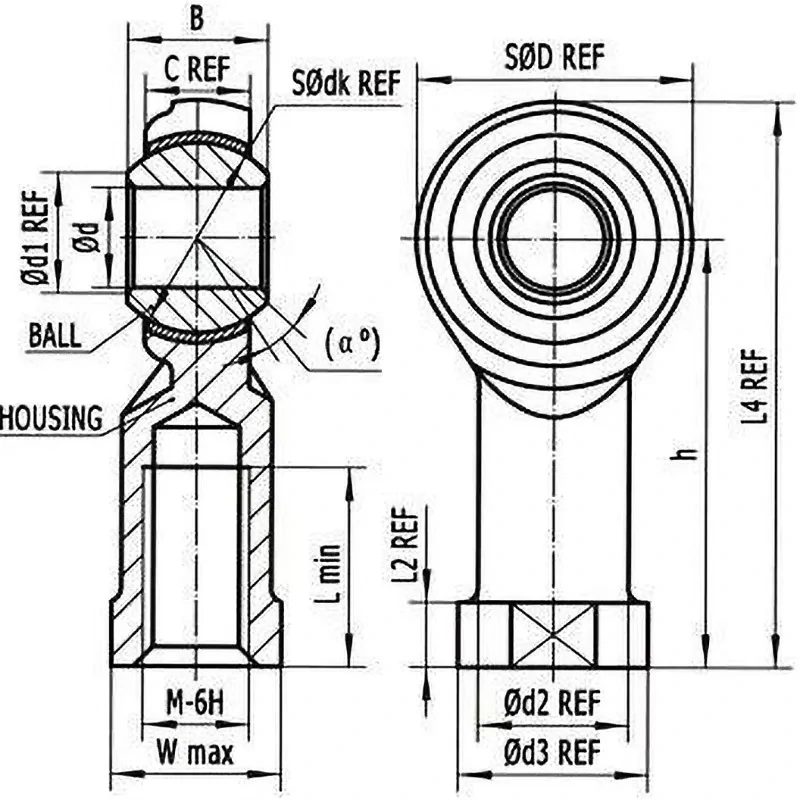

Dimensions B (mm): 25
Dimensions C (mm): 18
Dimensions L (Min) (mm): 33
Dimensions L2 (mm): 10
Dimensions L4 (mm): 102
Dimensions SD (mm): 50
Dimensions W (mm): 30
Dimensions d (mm): 20
Dimensions d1 (mm): 24.4
Dimensions d2 (mm): 27.5
Dimensions d3 (mm): 35
Dimensions dk (mm): 34.93
Dimensions h (mm): 77
Weight (g): 399.2
Type: Left Thread Type
Dimensions M (mm): M20*1.5
RoHS Directive (10 substances compliance): Compliant
Dimensions alpha (degrees): 14

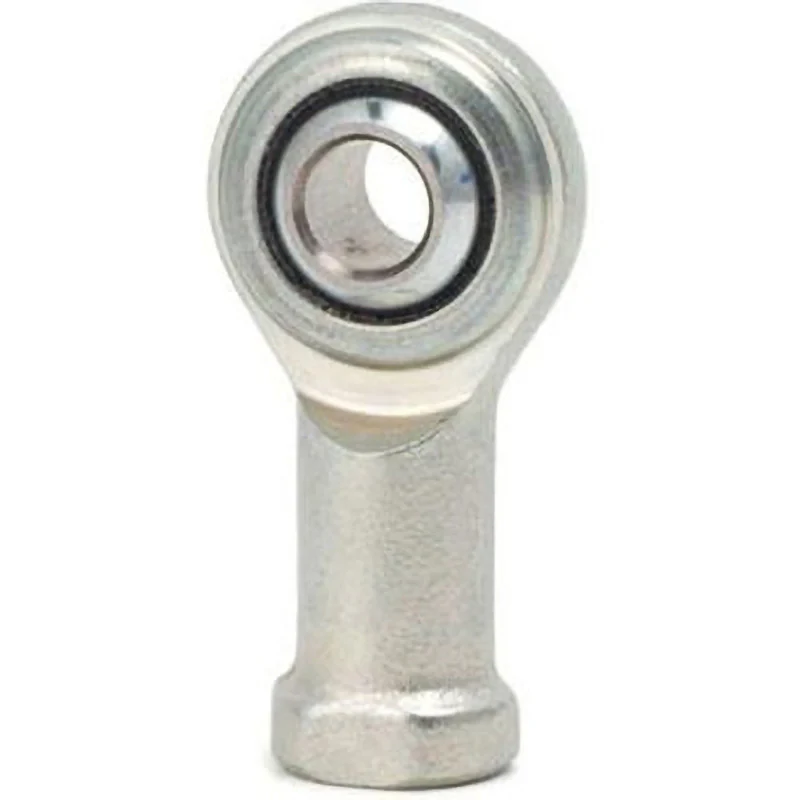

This spherical sliding bearing uses a spherical inner ring with precision and hardness equivalent to bearing steel balls and is used for the installation of Rod End｣ｬs in oscillating motion.
