Description

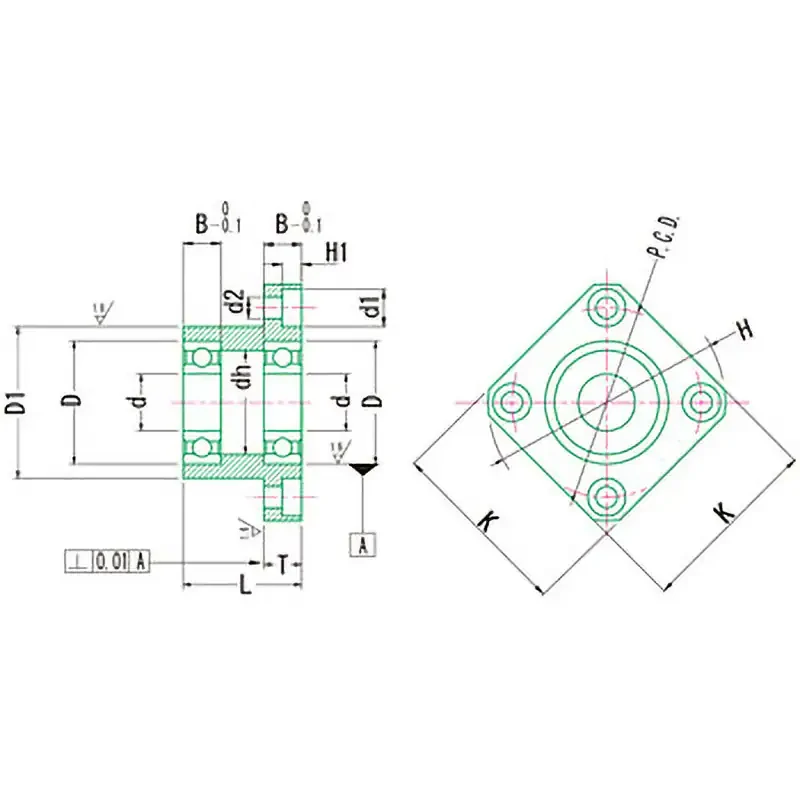

Dimension D1 (mm): (g7) Tolerance: 70-0.010-0.040
Dimension DH (mm): 55
Dimension H1 (mm): 8.1
Dimension P.C.D. (mm): 88
Dimension D (mm): 30
Dimension D2 (mm): 9
Material: (H)/ Lead-Free Electroless Nickel Plating, (B)/ Bearing Steel
Weight (g): 1396
Dimension T: 13
Dimension D: (H7) Tolerance: 62+0.030
Dimension B: 16
Dimension H: 104
Dimension L: 50
Dimension D: 114
Dimension K: 79
