Description
Circuit: SPST (2P)
Terminal Shape: Solder Terminal
Switch Characteristics: ON-OFF
Lever Color: Red
Lever Angle (degrees): 24 plus or minus 4
Operating Part Shape: Molded Flat Lever
Insulation Resistance (Megaohm): 100 or more (MIN)/DC500V
Contact Resistance (Megaohm): 20 or less (MAX)
Insulation Withstand Voltage: (Between terminals) AC1000V for 1 minute, (Charging part and non-charging part) AC1500V for 1 minute

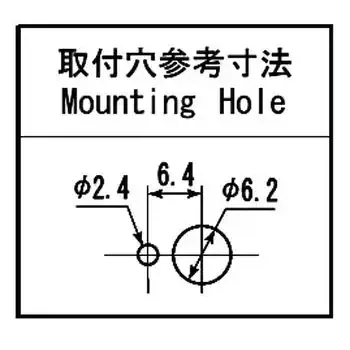

Mounting Plate Thickness (mm): Maximum 3
Current Capacity: 6A125V.AC
RoHS Directive (Compliance with 10 substances): Compliant
