Description

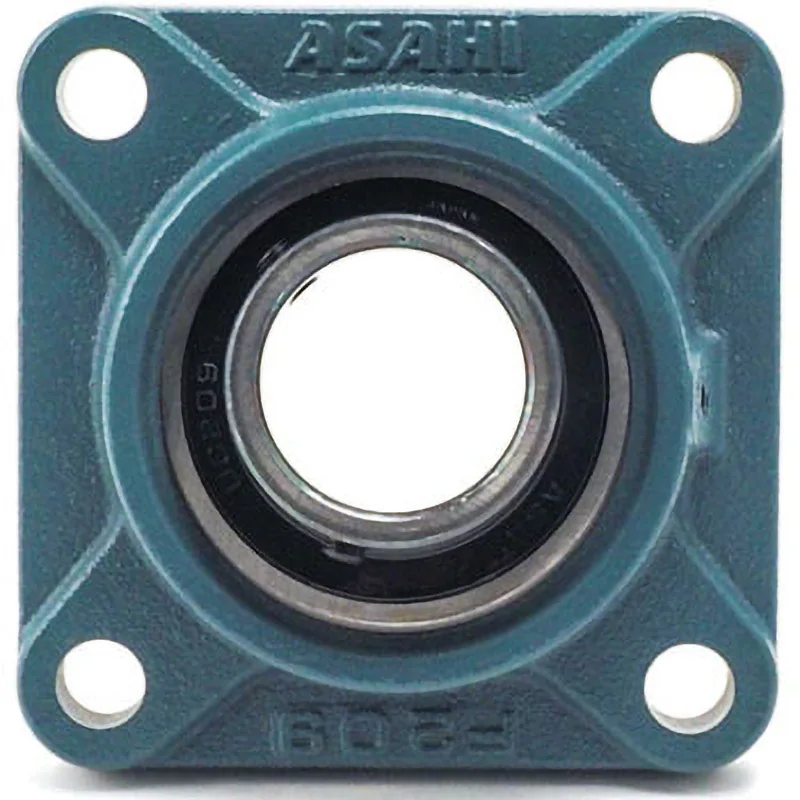

Square Flange Type Unit
Axis Diameter (mm): 45
Grease Nipple: Yes
Load Type: Yes
No Cover
Axis Hole Type: Cylindrical Hole with Set Screw
Weight (kg): 2.07

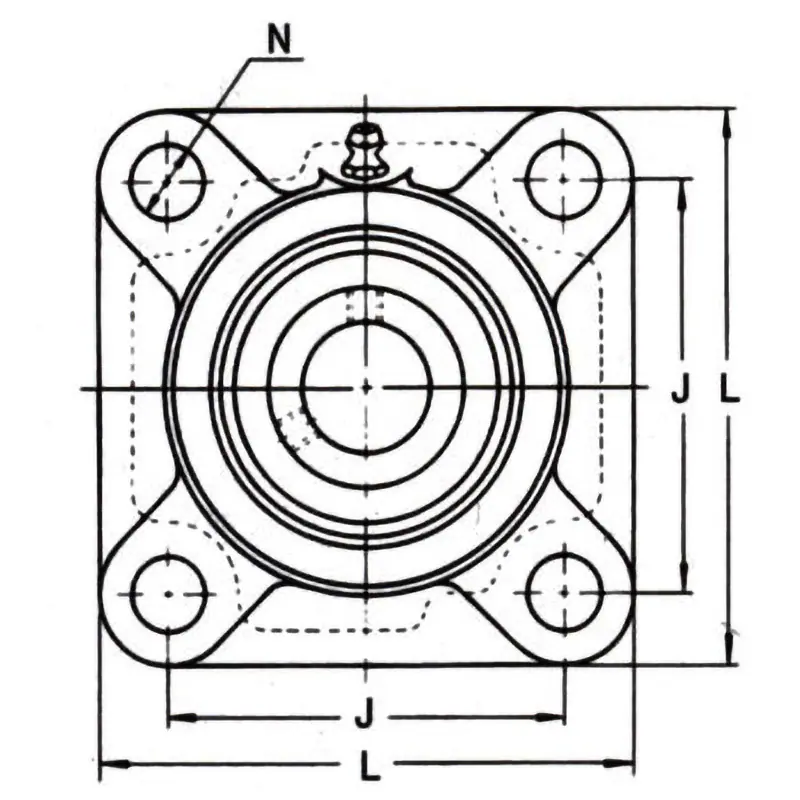

Dimension L (mm): 137
Basic Static Load Rating (kN): 20.5
Basic Dynamic Load Rating (kN): 33
Mounting Bolt Nominal: M14

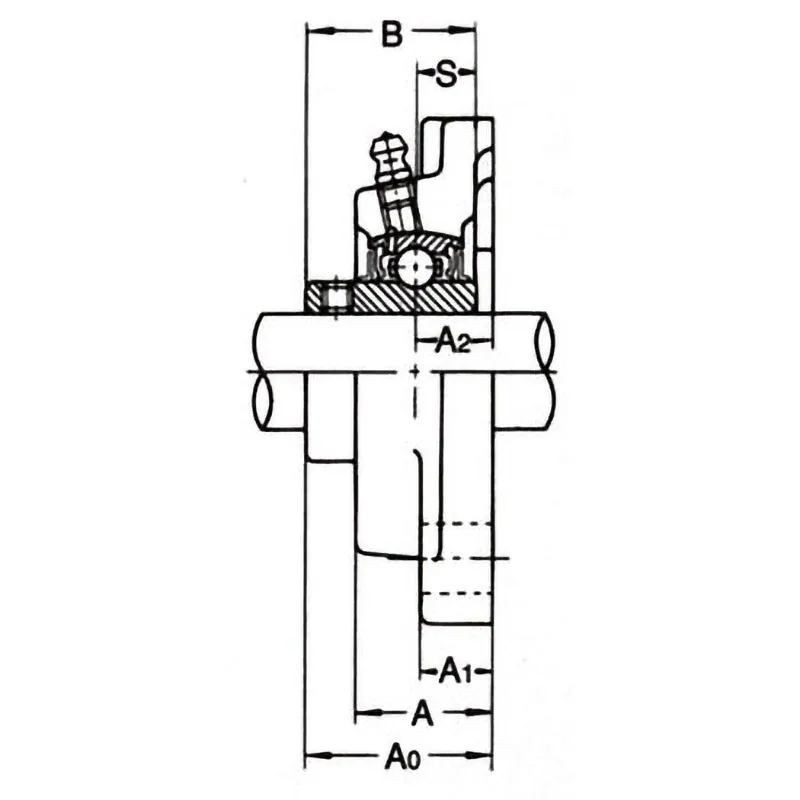

Dimension A (mm): 38
Dimension S (mm): 19
Dimension B (mm): 49.2
Dimension N (mm): 16
Dimension J (mm): 105
Dimension A1 (mm): 18
Dimension A2 (mm): 22
Dimension A0 (mm): 52.2
Bearing Nominal: UC209
Standard Bearing Box Nominal: F209
RoHS Directive (10 Substances Compliance): Compliant
The shape of the bearing box is square, and it is designed to be mounted on the side wall of the machine, making the structure of the bearing mounting part simple and having a wide range of applications.
