Quantity: 1 piece

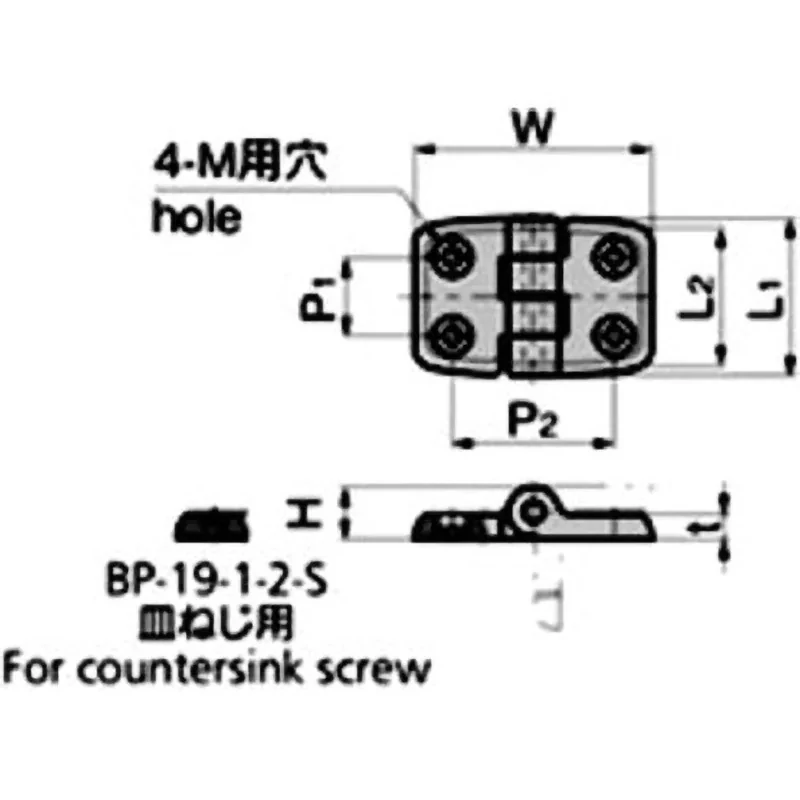

Dimension L2 (mm): 35
Dimension L1 (mm): 40

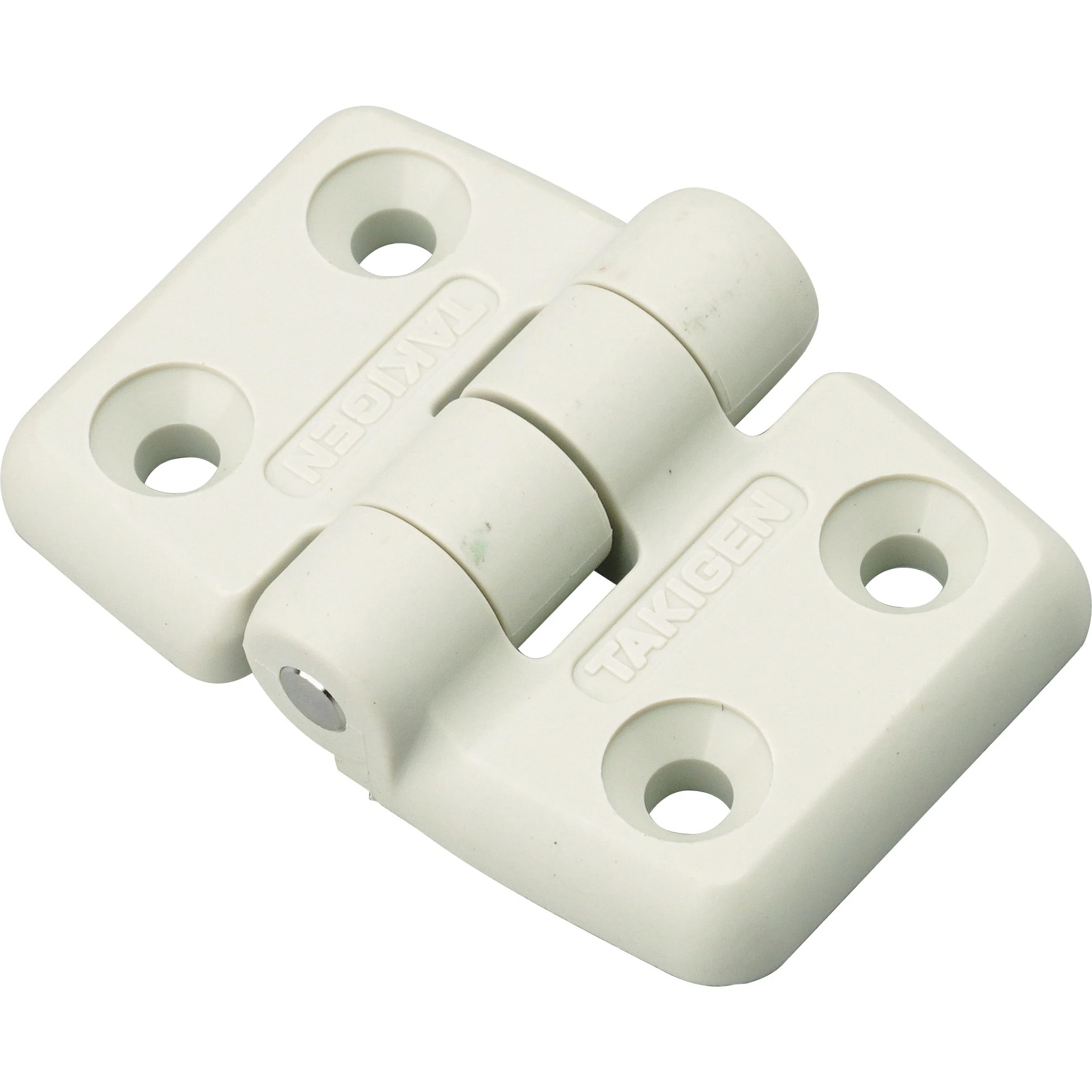

Part Number: BP-19-1-2-S-Ivory
Dimension L1 (mm): 40
Dimension L2 (mm): 35
Dimension L3 (mm): –
Dimension W (mm): 60
Dimension H (mm): 13.5
Dimension t (mm): 6.5
Dimension W1 (mm): –
Dimension W2 (mm): –
Dimension W3 (mm): –
Dimension P1 (mm): 20
Dimension P2 (mm): 40
Dimension P3 (mm): –
Dimension P4 (mm): –
N-
Dimension M: M5
Usage: Hatch cover for boats and ships
Compatibility: For countersunk screws
Color: Ivory
Mass (g): 18
Material (shaft): Stainless Steel (SUS304)
Standard Color: Ivory
Material (blade): Polyamide (PA)
Takigen Code: 12405
Since there are few protrusions on the surface, it is safe for floor use.
