Description
Description: Quantity: 1 piece
Coil Rated Voltage (V): AC200
Auxiliary Contact: 1a
Part Number: SW-03
Rated Continuous Current (A): 20
Rated Operating Voltage (V): AC200
Auxiliary Contact: 1a
Coil Rated Voltage (V): AC200
Motor Capacity (kW): 1.5
Main Circuit Voltage (V): AC200
International Standard: IEC, EN, VDE, BS, UL, CSA certified
Mechanical Durability: 10 million cycles
Weight (kg): 0.43
Mounting Screw: 2-M4
Suitable Rail Width (mm): 35
Electrical Durability: 2 million cycles (AC-3), 30 thousand cycles (AC-4), 500 thousand cycles (AC-1)
Heat Element Rated Setting Range (A): 5-8
Compatible Thermal Relay: TR-0N
Coil Voltage (V): AC200
Type: Electromagnetic Contactor
Operating Method: Non-reversible
Model: SW-03
Type: SW-03

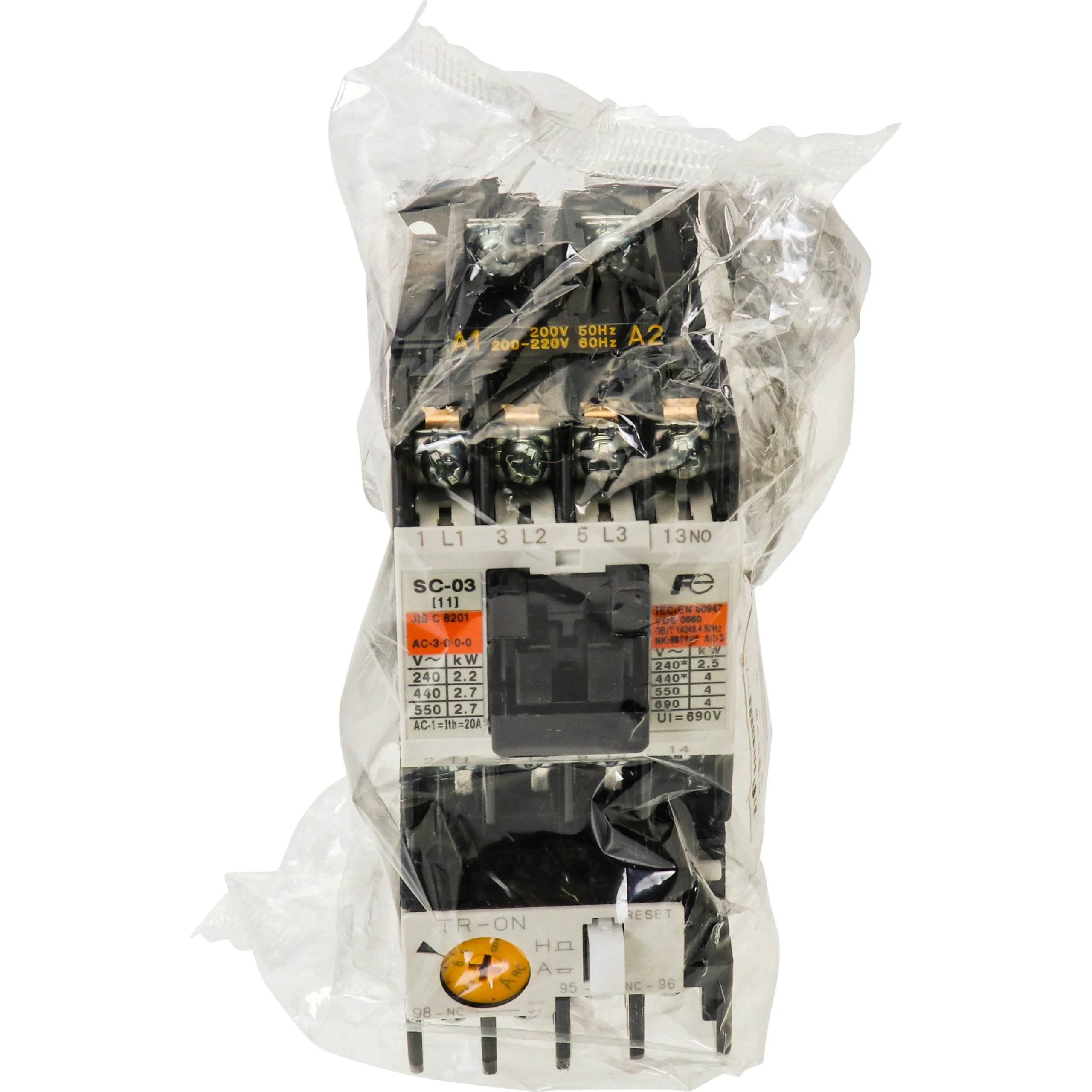

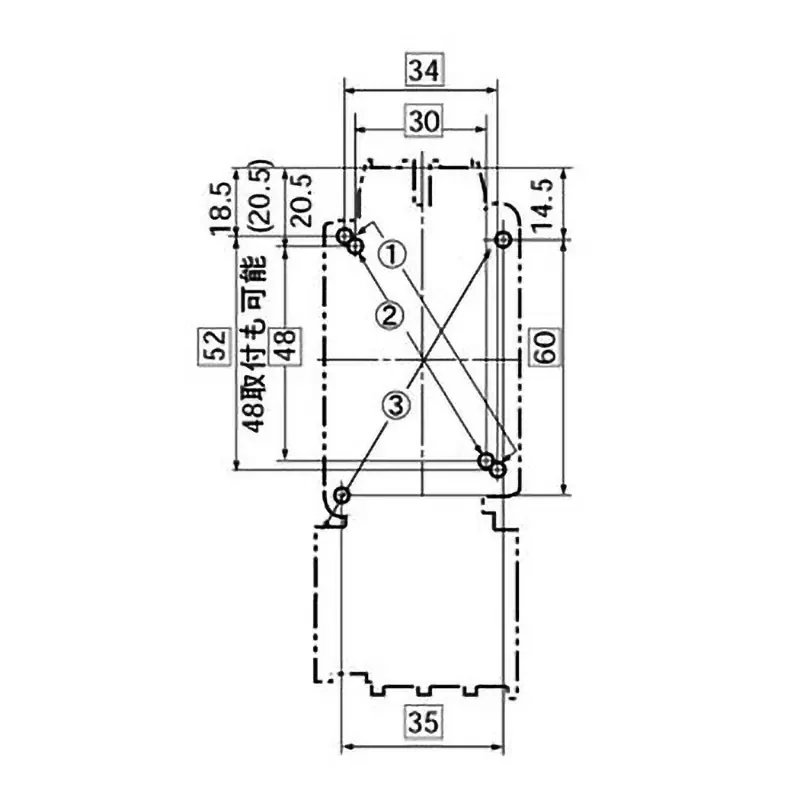

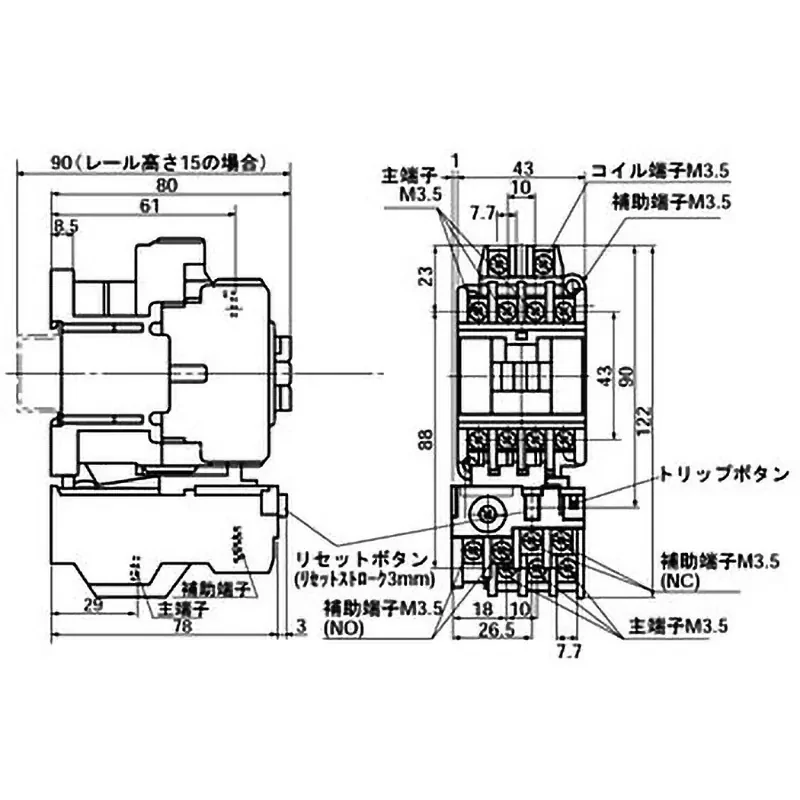

Dimensions (Width W * Height H * Depth D) (mm): 44 * 122 * 80
Rated Capacity (kW) for Three-phase Squirrel Cage Motor (AC-3): (200-240V) 2.2, (380-440V) 2.7
Rated Operating Current (A) for Three-phase Squirrel Cage Motor (AC-3): (200-240V) 11, (380-440V) 7
Rated Operating Current (A) for Single-phase Motor (AC-3): (100V) 11, (220V) 11
Rated Capacity (kW) for Single-phase Motor (AC-3): (100V): 0.4, (220V): 0.8
Rated Capacity (kW) for Inch Plugging (AC-4): (200-240V) 1.5, (380-440V) 2.2
Rated Operating Current (A) for Inch Plugging (AC-4): (200-240V): 8, (380-440V) 6
Rated Operating Current (A) for Resistive Load (AC-1): (200-240V) 20, (380-440V) 20
Contact Configuration: [Auxiliary] Double Contacts
Accessories: Includes 2 Heat Element Thermal Relay
Protection Structure: Without Case Cover
Series: New SC Series
Frame: Type 03
Rated Insulation Voltage (V): 690
Rated Frequency (Hz): 50/60
Operating Characteristics: Standard
Reset Method: Manual
Rated Impulse Withstand Voltage (kV): 6
Switching Frequency (cycles/hour): 1800 (AC-3), 600 (AC-4)
Heat Element Rated Call (A): 5
Presence of Case: Without Case Cover
Operating Method: AC Operated Type
Terminal Cover: None
Certified to comply with international standards (IEC, EN, VDE, BS, UL, CSA) as standard product
Auxiliary contacts are standard equipped with high contact reliability double contacts
